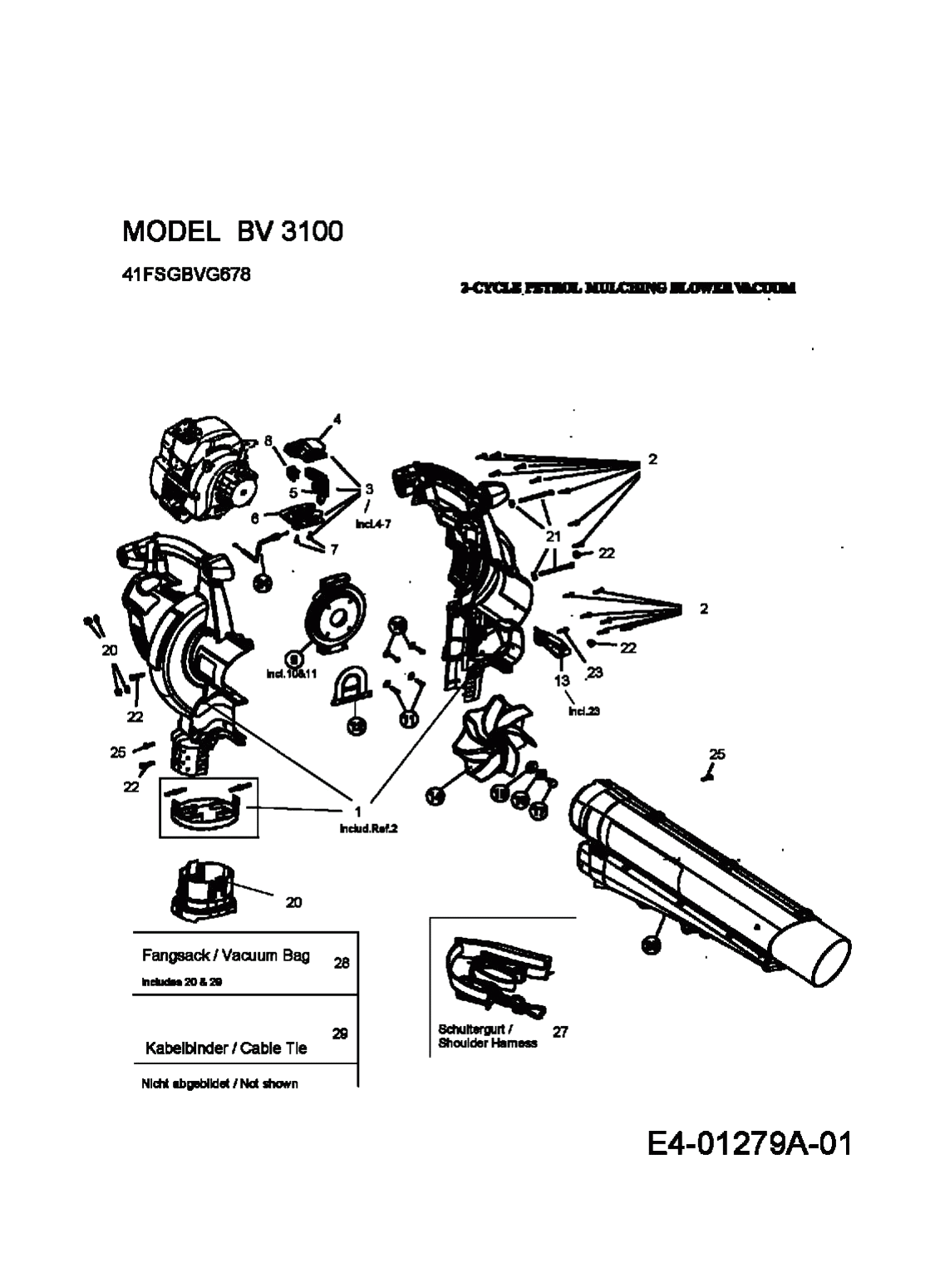

| REF. | АРТИКУЛ | ОПИСАНИЕ | ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
|---|---|---|---|
| 1 | 753-05287 | ENGINE COVER PAIR 3100 RED | |
| 2 | 753-04595 | Screw | |
| 3 | 791-00047 | THROTTLE CONTROL | |
| 4 | 791-182420 | UPPER THROTTLE CONTROL PLATE | |
| 5 | 791-00048 | THROTTLE CONTROL LEVER | |
| 6 | 791-182422 | LOWER THROTTLE CONTROL PLATE | |
| 7 | 791-182423 | Винт | |
| 8 | 791-182673 | SWITCH-ON/OFF CULTV/EDGER | |
| 9 | 753-04483 | Двигатель MOUNTING PLATE | |
| 10 | 791-182409 | Шайба 437X.202X.059 BLAC | |
| 11 | 791-181903 | Винт | |
| 12 | 791-182410 | MODE CONTROL FLAPPER | |
| 13 | 791-00050 | MODE CONTROL LEVER | |
| 14 | 731-04275 | IMPELLER BLADE | |
| 15 | 736-04107 | Шайба | |
| 16 | 753-04834 | ||
| 17 | 791-182414 | Болт | |
| 20 | 791-182417 | Адаптер | |
| 21 | 791-182424 | MOUNTING BLADE HARDWARE | |
| 22 | 791-182425 | ASM, TUBE MOUNTING HARDWARE | |
| 23 | 791-181482 | Винт | |
| 24 | 791-00049 | THROTTLE CABLE | |
| 25 | 791-181345 | Винт | |
| 26 | 753-04705 | RETAINER ASM-PULLEY | |
| 26 | 753-05065 | BLOWER/VAC TUBE ASSEMBLY | |
| 27 | 753-1202 | PLATE SCREW | |
| 27 | 791-682075B | SHOULDER HARNESS | |
| 28 | 753-05067 | RECOIL PULLEY ASSEMBLY | |
| 28 | 753-04465 | Мешок мусоросборника | |
| 29 | 753-04286 | SPR:START:RWND CSTR | |
| 29 | 791-612930 | Тросик | |
| 30 | 731-04417 | RETAINER EYELET | |
| 31 | 791-611061 | ROPE GUIDE | |
| 32 | 791-181079 | PULL HANDLE 631-04164A | |
| 33 | 791-613103 | ROPE | |
| 34 | 791-181862 | Болт | |
| 35 | 791-181345 | Винт | |
| 36 | 753-04749 | STARTER HOUSING ASSEMBLY | |
| 37 | 791-182402 | WIRE LEAD | |
| 38 | 791-182081 | RFI MODULE ASSY | |
| 39 | 791-610311B | Свеча зажигания RDJ7Y | |
| 40 | 791-182066 | Глушитель | |
| 41 | 753-04619 | Прокладка | |
| 42 | 791-147575 | MUFFLER MOUNTING BOLT ASSEMBLY | |
| 43 | 753-04814 | CYL ASM: 31CC | |
| 44 | 753-04367 | Поршень с шатуном в сборе | |
| 45 | 753-04182 | CYLINDER GASKET | |
| 46 | 791-182723 | CYLINDER BOLT | |
| 47 | 9162-1 | Шайба O.D.1.155 | |
| 48 | 791-181524 | CRANKSHAFT EXTENSION | |
| 49 | 753-1209 | Комплект поршневых колец | |
| 50 | 753-04924 | SHORT BLOCK ASSEMBLY | |
| 51 | 791-182747 | SPARK ARRESTOR SCREEN |
