Группа компаний "MIRZIP"

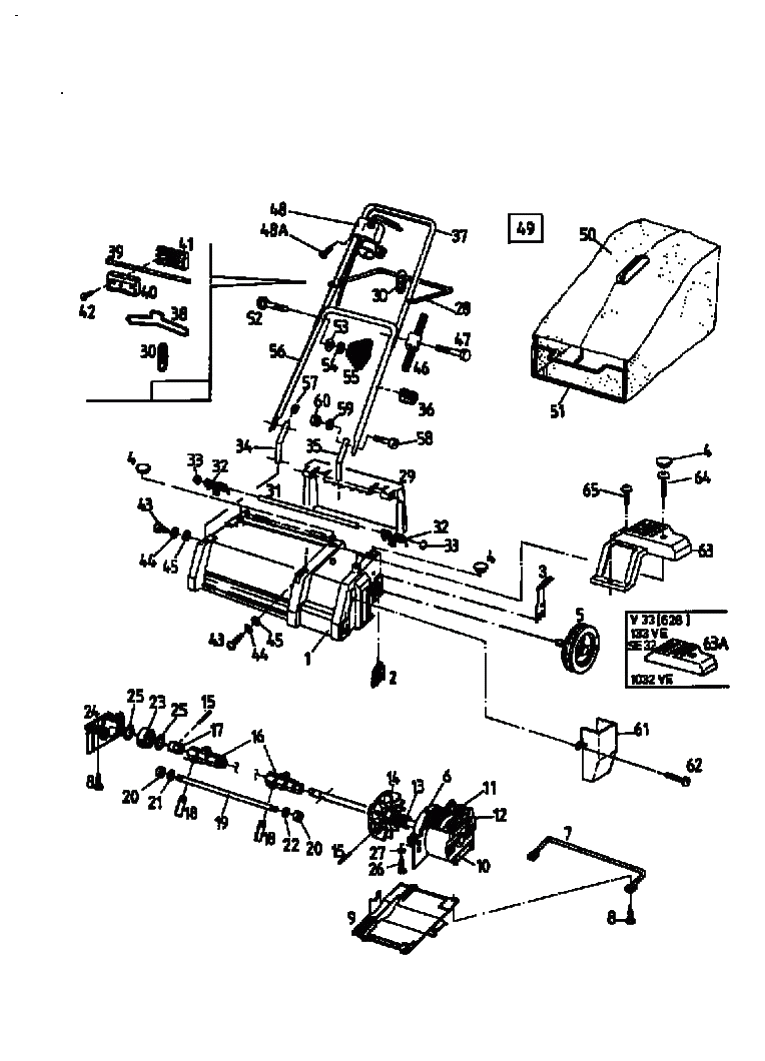

| REF. | АРТИКУЛ | ОПИСАНИЕ | ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
|---|---|---|---|
| 1B | 079.85.301 | ||
| 1A | 079.85.417 | ||
| 1C | 731-1973662 | "Verticutter Deck 12,5""" | |
| 2 | 079.85.213 | Bearing reinforcement | |
| 3 | 079.29.490-Z | ||
| 4 | 000.70.557 | Cap | |
| 5 | 079.29.766 | Wheel | |
| 5A | 079.31.928 | Wheel | |
| 5C | 079.31.973 | Колесо | |
| 6 | 079.11.303 | Air Guide Plate | |
| 7 | 079.85.218 | Stabilization Rod | |
| 9 | 079.85.318 | Cover | |
| 10 | 079.11.691 | Электромотор 1000W CRA52/21A 079.11.691 | |
| 10A | 001.10.125 | Clamp | |
| 11 | 079.11.890 | Конденсатор | |
| 12 | 079.38.126 | Insulating Piece | |
| 13 | 000.30.275 | Spring | |
| 14 | 079.85.200 | Fan | |
| 15 | 25.3197.95 | Штифт | |
| 16 | 079.85.231 | Drive sleeve | |
| 17 | 079.85.176 | END PART | |
| 18 | 742-0813-Z | VERTIKUTIERMESSER *S* | |
| 18A | OEM-742-0813 | Blade-scarifier 02890.04 | |
| 19 | 079.85.205 | AXLE | |
| 21 | 24.6273.15 | Shim | |
| 22 | 24.6273.16 | ADJUSTING WASHER | |
| 23 | 26.1027.43 | Ball Bearing | |
| 24 | 079.85.193 | Bushing | |
| 25 | 28.3591.17 | Кольцо пружинное | |
| 26 | 000.02.494 | Screw | |
| 27 | 736-0688 | Шайба 6x10x1.2 | |
| 28 | 747-1033 | Bar | |
| 29 | 079.85.216 | Rear Flap | |
| 29A | 079.85.217 | Rear Flap | |
| 29B | 079.85.324 | Rear Flap | |
| 30 | 726-0368637 | RET:CORD:ELEC 726-0368 | |
| 31 | 079.85.206 | Rod | |
| 32 | 000.31.166 | Spring | |
| 33 | 000.02.427 | Adjusting Ring | |
| 35 | 749-1340 | ||
| 36 | 000.13.064 | Зажим | |
| 37 | 079.06.698 | Upper Handle | |
| 37A | 749-1140 | Upper Handle | |
| 37B | 079.06.736 | Upper Handle | |
| 38 | 747-2045 | ROD:RET:CORD:ELEC | |
| 39 | 079.06.254 | Rod | |
| 40 | 079.05.531 | SLIDER RH BLACK 731-04458 | |
| 41 | 079.05.532 | SLIDER LH BLACK 731-04459 | |
| 42 | 000.02.466 | SCR:KB 40 x 8:WN 1441 | |
| 43 | 710-1717 | Саморез | |
| 44 | 736-0698 | Шайба -гровер | |
| 45 | 736-0697 | Шайба 170 x.460 x.040 | |
| 46 | 079.05.304 | WIRE SLEEVE | |
| 47 | 710-1684 | SCR:M8-1:50.00 LG:DIN 933 | |
| 48 | 079.39.869 | SWITCH PLUG COMBINATION | |
| 48A | 710-1757 | Винт KB40X16 WN 1411 | |
| 49 | 196-041-678 | Catcher V33 | |
| 50 | 079.80.841 | GRASS BAG TISSUE | |
| 51 | 079.80.836 | GRASS BAG FRAME | |
| 52 | 710-1375 | Screw M8x45Mu 4.6 DIN 603 | |
| 53 | 736-0700 | Шайба 8.4 x 16 x 1.60 | |
| 54 | 736-0689 | Шайба замковая B 8.4:DIN 6798 | |
| 55 | 720-0368 | Гайка-барашек | |
| 56 | 079.06.260 | Handle Lower Part | |
| 57 | 720-0369 | Втулка | |
| 58 | 23.5422.20 | SCR:M6-1:30.00 LG:DIN 7985 710-04283 | |
| 59 | 079.85.224 | Air Guide | |
| 59 | 736-0668 | Шайба 6.4x12x1.6 | |
| 60 | 736-0697 | Шайба 170 x.460 x.040 | |
| 60 | 712-0691 | Гайка M6-1:NYLON:DIN 985 | |
| 61 | 079.85.224 | Air Guide | |
| 63 | 731-2125638 | Кожух 731-2125638 | |
| 63A | 731-1974662 | Shroud | |
| 63A | 731-1974668 | Hood | |
| 63A | 731-1974700 | Shroud | |
| 63A | 731-1974704 | ||
| 64 | 736-0685 | Шайба 6.4 IDX18OD DIN 9021 | |
| 64 | 710-1704 | Болт TORX:M6x20 WN 1452 | |
| 65 | 736-0688 | Шайба 6x10x1.2 | |
| 65 | 000.02.583 | SCR:TORX:K40 x 12:WN 1451 710-04632 | |
| 67 | 000.02.583 | SCR:TORX:K40 x 12:WN 1451 710-04632 | |
| 68 | 736-0698 | Шайба -гровер | |
| 69 | 736-0691 | Шайба A 4.3 DIN 125 | |
| 70 | 23.5422.20 | SCR:M6-1:30.00 LG:DIN 7985 710-04283 | |
| 71 | 736-0668 | Шайба 6.4x12x1.6 | |
| 72 | 712-0691 | Гайка M6-1:NYLON:DIN 985 | |
| 73 | 000.07.950 | WASH:FLAT:8.4 x 16 x 1.60 736-0700 | |
| 112 | SG-2044440 | PAWL | |
| 113 | SG-2055770 | COVER, RED | |
| 114 | SG-2044500 | FIXATION PLATE | |
| 116 | SG-2045230 | SCREW | |
| 117 | SG-2044410 | ANGULAR FIXATION PART | |
| 118 | SG-2044320 | HOSE OIL SUCTION | |
| 119 | SG-2044330 | OIL FILTER | |
| 120 | SG-2044420 | THREADED BOLT | |
| 121 | SG-2044480 | SCREW | |
| 122 | SG-2044490 | ADJUSTING NUT | |
| 123 | SG-2044481 | CLIP DE FIXATION | |
| 124 | SG-2044289 | OIL PUMP ASSY. | |
| 125 | SG-2044431 | SPACER | |
| 126 | SG-2044572 | FOAM/STICKER-TANK |
