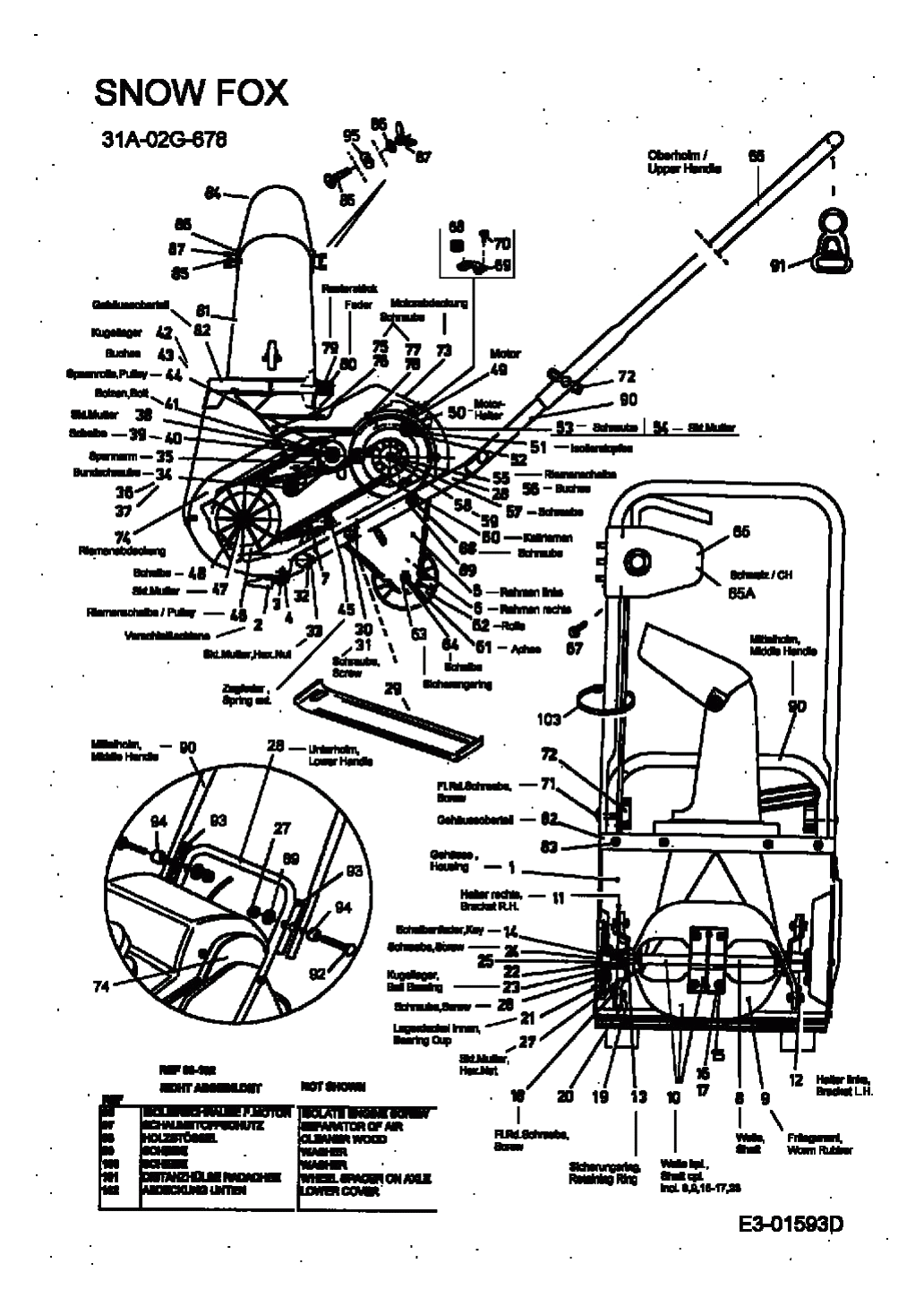

| REF. | АРТИКУЛ | ОПИСАНИЕ | ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
|---|---|---|---|
| 1 | FV-8100100 | Housing Assembly | |
| 2 | FV-8100201 | SNOW PICKUP EDGE | |
| 5 | FV-8102300 | Frame Lh | |
| 6 | FV-8102400 | Frame Rh | |
| 7 | 092.48.546 | Pt-schraube Dflm 4.2x19 | |
| 8 | FV-8100702 | Frooschneckenwelle Ohne Gummi | |
| 9 | FV-8100301 | RUBBER | |
| 10 | FV-8100700 | Shaft-worm | |
| 11 | FV-8100500 | Connector:Flanke:VANE:SNC | |
| 12 | FV-8100600 | Bracket Lh | |
| 13 | 28.3596.26 | ||
| 14 | 092.48.547 | PASSFEDER 4x4x18 DIN 6685 | |
| 15 | 23.5422.16 | Винт | |
| 21 | FV-8100800 | CUP-BEARING | |
| 23 | 26.1037.01 | Подшипник | |
| 27 | 712-0689 | Гайка M6-1:DIN 934 | |
| 28 | FV-8103101 | BAIL | |
| 29 | FV-8101100 | Nut | |
| 30 | FV-8104600 | Lock Washer | |
| 31 | 22.3419.15 | Болт 22.3419.15 | |
| 34 | FV-8103300 | Screw Shoulder | |
| 35 | FV-8101600 | FLAT IDLER BRACKET | |
| 41 | FV-8103200 | BOLT | |
| 42 | 26.1001.43 | Rillenkugellager Din 625 | |
| 43 | FV-8104000 | BUSHING | |
| 44 | FV-8101400 | PULLEY-V-IDLER | |
| 45 | FV-8101500 | SPRING-EXTENSION |
