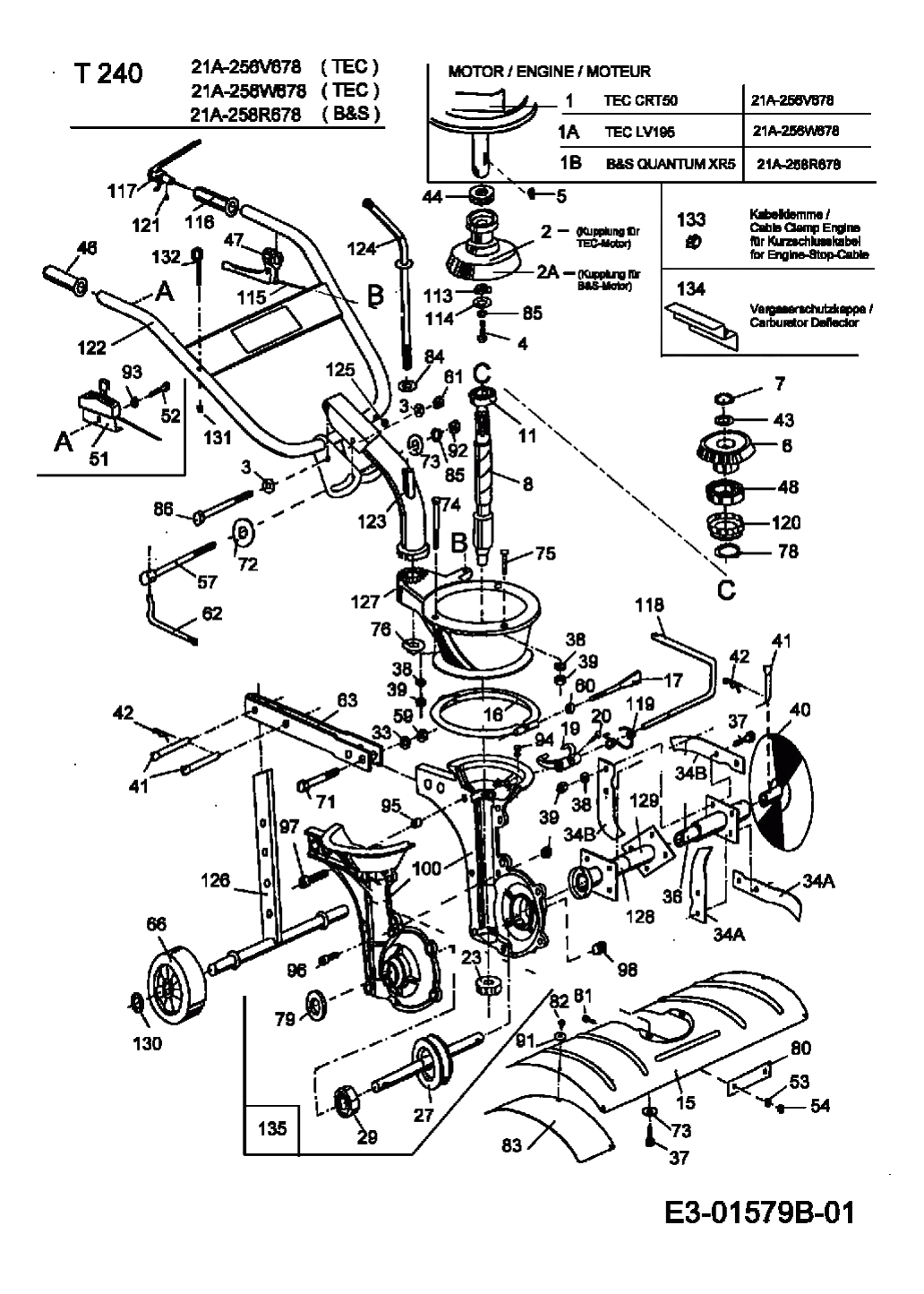

MTD Артикул 21A-258R678 (год выпуска 2004). Основная деталировка

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

REF.	АРТИКУЛ	ОПИСАНИЕ
1	752T45005	Engine Tec Crt 50 Dxt Tiller
1A	752T361604	B-mtr Tec Lv195ea Tiller
1B	752B1755B1	Engine Bands Qtm 4.5
2	IND002-572	CLUTCH, UPPER KMOT0001
2A	IND041-200	COUPLING
3	736-0692	WASH:FLAT:10,5 IDx20 OD DIN125 736-0734
4	IND004-572	CLUTCH FASTENER SCREW
5	IND005-572	WOODRUFF KEY
6	IND006-572	CLUTCH LOWER
7	28.3591.18	Стопор
8	IND008-572	WORM SHAFT KHAJ0013
11	IND011-572	BALL BEARING 6005Z
13	732-0418	SPR:EXTN:.38 OD X 2.10
14	738-04139	STUD
15	756-04217	FLYWHEEL PULLEY
15	IND015-572	MUD FLAP
16	710-0591	HHCS:3/8-24:1.00:GR5:LOCK
16	IND016-572	CLAMP
17	710-3005	Винт 3/8-16:1.25:GR5:STD
17	IND017-572	STOP SCREW
18	786-04256638	TINE SHIELD MTD RED
18A	786-04256709	TINE SHIELD MASTERCRAFT GREEN
19	711-0415	PIN:CLEVIS: .375 x 1.75
19	IND019-572	LIFTER FORK
20	642-0023	TINE ASSY. OUTER LH
20	IND020-572	FASTENER SCREW
21	642-0003-0637
22	714-0149B	Защелка
23	710-0809	SCREW:TT:1/4-20:1.250:HXINDWSH
23	IND023-572	BEVEL BEARING 30204
24	737-0103	PLUG-PIPE 3/8 NPT 737-04202
25	642-0024	TINE ASSY. OUTER RH
26	642-0002-0637
27	IND027-572	GEAR WORM WITH AXLE KAPG0098
27	618-04276A	CASE ASM:WORM:61CM 618-04276B
28	721-04157	GASKET CASE/SHIELD
29	26.1020.05	Подшипник
29	726-0299	PUSH CAP
30	734-04063	WHEEL
31	686-04072	DEPTH STAKE BRACKET
32	711-04511	AXLE
33	24.8195.25	SPRING LOCK WASHER B12 DIN 127 736-0778
34A	IND034A-572	CULTIVATOR TINE L.H.
34B	IND034B-572	CULTIVATOR TINE R.H.
36	IND036-572	ROTATION OUTER III
37	710-1372	Болт M8x25:DIN 933 10.9
38	736-0657	WASHER A 8,2 DIN 6797
39	712-0690	Гайка M8-1.25 DIN 934
40	IND040-572	SIDE DISK
41	IND041-572	STUD CSAP0014
42	IND042-572	SPRING BIZT0001
43	IND043-572	WASHER 18
44	IND044-572	BEARING
46	IND046-572	RUBBER HILT
