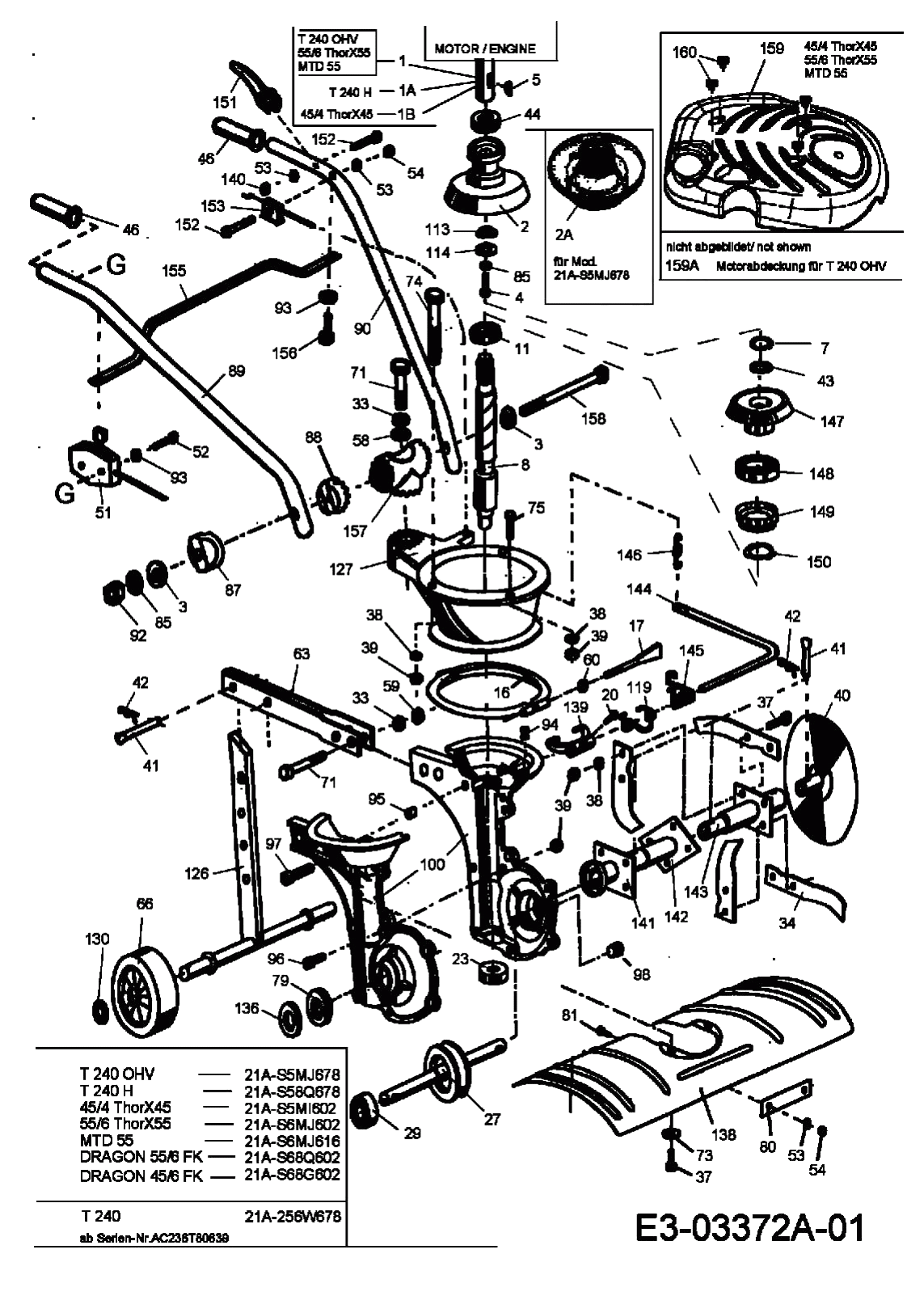

| REF. | АРТИКУЛ | ОПИСАНИЕ | ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
|---|---|---|---|
| 1 | 752Z1P70WHA | 173CC OHV VERT SHAFT TILLER 752Z1P70WHB | |
| 1A | 752HN2E8SD | Engine | |
| 1B | 752Z1P65FWA | ENGINE MTD 1P65FWA | |
| 2 | IND002-572 | CLUTCH, UPPER KMOT0001 | |
| 2A | KAPG0671 | CLUTCH, UPPER | |
| 3 | LAPO0005 | Washer | |
| 4 | TENG0001 | CLUTCH FASTENER SCREW IND004-572 | |
| 5 | KAPG0018 | NUT 4.7X4.7X20 | |
| 7 | SEEG0002 | CIRCLIPS | |
| 8 | KAPG0165 | WORM SHAFT KHAJ0013 | |
| 11 | CSAP0070 | BALL BEARING | |
| 16 | KAPG0124 | Clamp | |
| 17 | KAPG0143 | Clamp Fastener Screw | |
| 20 | HATL0012 | Screw | |
| 20 | KIEM0010 | Screw | |
| 21 | HATL0010 | Nut | |
| 22 | ALAT0001 | Washer | |
| 23 | KAPU0004 | "Bolt, Carr 3/8-16x1"" Pltd" | |
| 23 | CSAP0091 | BALL BEARING | |
| 24 | KAPG0516 | Handle | |
| 25 | KAPG0471 | CLUTCH,LOWER PART | |
| 26 | FAKO0005 | Washer 33x10.5 | |
| 27 | HATL0007 | Screw M10x20 | |
| 27 | KAPG0098 | GEAR WORM WITH AXLE | |
| 28 | ASEB0004 | Spring 6x6x18 | |
| 29 | KAPG0555 | Housing Lh | |
| 29 | CSAP0092 | BALL BEARING | |
| 30 | KAPG0559 | TRANSMISSION CASING RH | |
| 31 | KAPG0487 | SHAFT | |
| 32 | KAPG0488 | SCHNECKENRAD MIT ACHSE | |
| 33 | RUGO0007 | Sring Washer M12 | |
| 33 | CSAP0070 | BALL BEARING | |
| 34 | IND034B-572 | CULTIVATOR TINE R.H. | |
| 34 | CSAP0091 | BALL BEARING | |
| 35 | CSAP0092 | BALL BEARING | |
| 36 | OLAJ0002 | OIL-DRAIN PLUG KHAJ0110 | |
| 37 | HATL0020 | Screw | |
| 37 | BKNY0034 | Screw M6x16 | |
| 38 | ALAT0002 | Washer | |
| 38 | SIMM0022 | SEAL RING SIMM0023 | |
| 39 | HATL0006 | Nut | |
| 39 | SIMM0001 | SEAL RING | |
| 40 | IND040-572 | SIDE DISK | |
| 40 | PORV0002 | DUST COVER | |
| 41 | CSAP0014 | STUD | |
| 41 | KAPG0604 | SPACER | |
| 42 | BIZT0001 | Пружина | |
| 42 | KAPG0496 | HANDLE, LOWER | |
| 43 | KAPG0117 | WASHER | |
| 43 | HATL0100 | Screw | |
| 44 | CSAP0093 | BEARING IND044-572 | |
| 44 | LAPO0004 | Puck, .330x1.50x.0975 | |
| 45 | RUGO0005 | Lock Washer | |
| 46 | IND046-572 | RUBBER HILT | |
| 46 | KAPG0505 | HANDLE, UPPER | |
| 47 | KAPU0001 | "Bolt, Carr 3/8-16x1"" Pltd" | |
| 48 | CSIL0001 | Wing Nut | |
| 49 | KAPG0513 | Rod | |
| 50 | HATL0013 | Screw | |
| 51 | IND051-572 | THROTTLE CONTROL WITH CABLE | |
| 51 | IND003-200 | GRIP | |
| 52 | HATL0015 | Screw | |
| 52 | KUPL0030 | CLUTCH CABLE | |
| 53 | ALAT0001 | Washer | |
| 53 | IND051-572 | THROTTLE CONTROL WITH CABLE | |
| 54 | HATL0010 | Nut | |
| 54 | HATL0014 | Screw | |
| 55 | LAPO0003 | Washer | |
| 56 | RUGO0025 | SPRING | |
| 57 | KAPG0418 | CLUTCH LEVER KTOL0051 | |
| 58 | LAPO0001 | Washer | |
| 58 | HENG0056 | Screw | |
| 59 | HATL0001 | Nut | |
| 59 | ONZA0001 | Nut | |
| 60 | LAPO0004 | Puck, .330x1.50x.0975 | |
| 60 | KAPG0286 | Kegy0007 | |
| 61 | MUAN0010 | WHEEL KEGY0013 | |
| 62 | FIXA0001 | WASHER | |
| 63 | KAPG0145 | Coulter Holder | |
| 63 | CSAP0014 | STUD | |
| 64 | KAPG0624 | Kapg0624 | |
| 65 | KAPG0625 | Kapg0625 | |
| 66 | IND066-572 | WHEEL KEGY0013 | |
| 66 | KAPG0457 | Cutting Edges Left | |
| 67 | KAPG0458 | Cutting Edges Right | |
| 68 | KAPG0534 | WASHER | |
| 69 | HATL0020 | Screw | |
| 71 | HATL0032 | Screw M12x50 | |
| 71 | 710-04577 | SCR:MACH:M4-.7:10.00 PANPHI | |
| 72 | 731-05400 | SHRD:ENG:M1 BLACK | |
| 73 | IND073-572 | FL. WASHER | |
| 74 | HATL0002 | Screw M8x70 | |
| 75 | HATL0003 | Screw | |
| 79 | SIMM0001 | SEAL RING | |
| 80 | KAPG0441 | PLATE | |
| 81 | HATL0012 | Screw | |
| 85 | RUGO0006 | SPRING WASHER D10 | |
| 87 | KAPG0071 | Барашек затяжной | |
| 88 | KAPG0068 | FASTENER PAIR I. | |
| 89 | KAPG0060 | Pusher, Right | |
| 90 | KAPG0054 | Pusher, Left | |
| 92 | HATL0044 | NUT M10 | |
| 93 | LAPO0003 | Washer | |
| 94 | KAPG0088 | Pin | |
| 95 | ILLE0004 | Ille0004 | |
| 96 | BKNY0014 | Screw M8x18 | |
| 97 | BKNY0015 | Screw M8x28 | |
| 98 | OLAJ0002 | OIL-DRAIN PLUG KHAJ0110 | |
| 100 | KAPG0076 | Kapg0076 | |
| 113 | HULL0002 | SPRING WASHER | |
| 114 | ALAT0004 | Шайба | |
| 119 | KUPL0006 | SW:SPRING RUGO0010 | |
| 126 | KAPG0286 | Kegy0007 | |
| 127 | IND127-572 | CLUTCH COVER ASSY. | |
| 130 | FIXA0001 | WASHER | |
| 138 | KAPG0296 | Kapg0296 | |
| 139 | KIEM0011 | YOKE | |
| 140 | ONZA0001 | Nut | |
| 141 | KAPG0223 | Kapg0223 | |
| 142 | KAPG0231 | Kapg0231 | |
| 143 | KAPG0229 | Kapg0229 | |
| 144 | KAPG0486 | Kapg0486 | |
| 145 | RUGO0030 | Rugo0030 | |
| 146 | RUGO0023 | Rugo0023 | |
| 147 | FKKA0001 | CLUTCH, UPPER | |
| 148 | CSAP0041 | BEARING 6008 2RS 2010-2S-6008 | |
| 149 | KAPG0468 | CLUTCH-PRESSURE ELEMENT | |
| 150 | SEEG0009 | CIRCLIPS SEEG0008 | |
| 151 | KAPG0418 | CLUTCH LEVER KTOL0051 | |
| 152 | HATL0018 | Screw M6x40 | |
| 153 | KUPL0031 | COUPLING BOWDEN | |
| 155 | KAPG0464 | Kapg0464 | |
| 156 | HATL0013 | Screw | |
| 157 | KAPG0066 | Фиксатор | |
| 158 | HATL0113 | Hatl0113 | |
| 159 | 731-05400 | SHRD:ENG:M1 BLACK | |
| 159A | 731-05575 | SHRD:ENG:M3 BLACK | |
| 160 | 710-04744 | SCREW:HL:#12-16:1.000:HXWSHHD |
