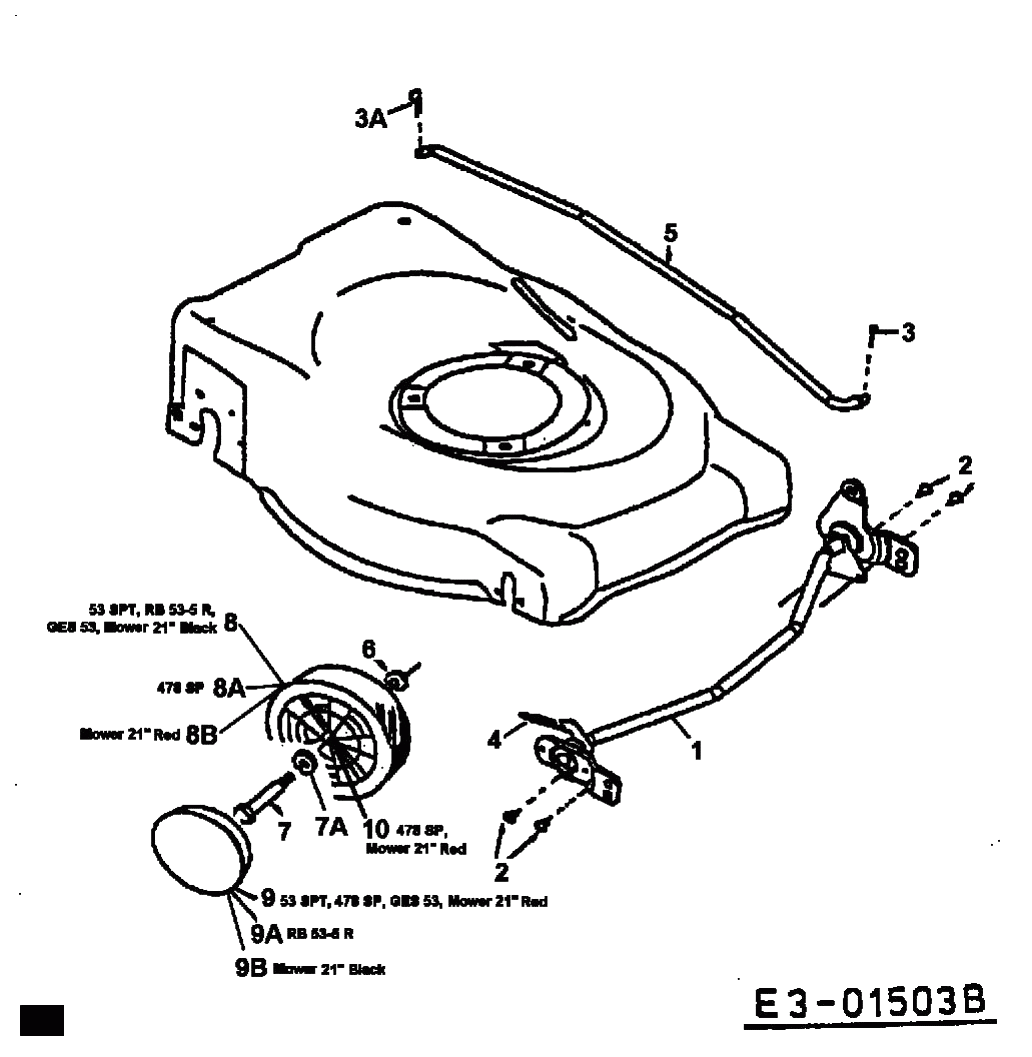

| REF. | АРТИКУЛ | ОПИСАНИЕ | ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
|---|---|---|---|
| 1 | 611-0060637 | Ось колес на газонокосилку 611-0060637 | |
| 2 | 710-1348 | SCR:AB:1/4-14:0.500:TRUSTRXI | |
| 3 | 714-0104 | Защелка 072 DIA x 1.13 LG | |
| 3A | 714-0111 | COTTER PIN 3/32 DIA X 1.00 | |
| 4 | 732-0820 | EXTENSION SPRING | |
| 5 | 747-0920A | Link | |
| 6 | 736-0105 | Шайба пружинная 401 x.870 x.063 | |
| 7A | 736-0504 | Шайба 510x.750 x.017 | |
| 7 | 738-0102 | Болт | |
| 8 | 634-0020 | WHEEL ASSY W/TIRE | |
| 8A | 734-1268 | WHEEL ASSY W/TIRE 734-1268662 | |
| 8B | 734-1790 | WHEEL | |
| 9 | 720-0249 | HUBCAP:EURO:GREY | |
| 9A | 731-0354A | ||
| 9B | 731-0355A | Hub Cap | |
| 10 | 741-0484 | Подшипник | |
| 41 | CP045530 | PIN 5 X 30 DIN 1481 | |
| 42 | CP045722 | CAP PLASTICS | |
| 43 | CP045810 | HEADLESS SCREW | |
| 44 | CP045911 | SPRING WASHER | |
| 45 | CP046606 | CLAMP RING | |
| 46 | CP046607 | CLAMP RING | |
| 47 | 28.3591.12 | Стопор DIN 471 | |
| 48 | CP047218 | LEVER | |
| 49 | CP051018 | HATCHBACK | |
| 50 | CP051078 | FRAME | |
| 51 | CP051083.05 | GRASS BAG | |
| 51A | CP051083.053 | GRASS BAG TISSUE MAC ALLISTER | |
| 52 | CP045620 | STIFT | |
| 53 | CP047191 | BRACKET SPRING | |
| 54 | CP045203 | HINGE PIN | |
| 55 | CP047215 | AXLE BEARING | |
| 56 | CP047236 | HANDLE | |
| 57 | CP047242 | CABLE BRACKET | |
| 58 | CP047266 | GRUB SCREW | |
| 59 | CP047254 | LEVER | |
| 60 | CP047267 | BOLT | |
| 61 | CP047829 | BELT | |
| 62 | CP046042 | UPPER HANDLE | |
| 63 | CP046068 | CLUTCH BAIL | |
| 64 | CP046073 | BRAKE BAIL | |
| 65 | CP050106 | WHEEL | |
| 66 | CP056116 | DRIVE WHEEL 230MM | |
| 67 | CP050127 | HUB CAP | |
| 67A | CP050127.05 | RADKAPPE SCHWARZ | |
| 68 | CP050133 | WHEEL COVER CP050132 | |
| 68A | CP050133.05 | CAP | |
| 69 | CP052138 | CLUTCH CABLE | |
| 70 | CP051149 | BRAKE CABLE | |
| 71 | CP051193 | SPRING | |
| 72 | CP050194 | PRESSURE SPRING | |
| 74 | CP050214 | HUB CAP INSIDE | |
| 75 | CP050222 | CABLE GUIDE 731-2422 | |
| 76 | CP050228 | WING NUT | |
| 77 | CP050230 | WASHER | |
| 79 | CP050238 | WASHER PVC | |
| 80 | CP050241 | V-BELT PULLEY D. 60 | |
| 81 | CP052243 | BRACKET | |
| 82 | CP032909 | WASH:FLAT:8.4x24x2.00 DIN 9021 736-0701 | |
| 83 | CP051236 | BUSH | |
| 84 | CP053250 | WASHER 10X50X5 | |
| 85 | CP050262 | V-BELT PULLEY | |
| 86 | CP050298 | PINION | |
| 87 | CP050975 | CUTTER SCREW | |
| 88 | CP050272 | BLADE ADAPTOR | |
| 98 | CP047192 | EXTENSION SPRING | |
| 99 | CP050191 | EXTENSION SPRING ZINCED | |
| 100 | CP053024 | COVER GRASS BAG | |
| 107 | CP051095 | GUIGE PLATE | |
| 108 | CP025015 | SCREW | |
| 109 | CP026025 | SCREW | |
| 110 | CP032926 | WASH:FLAT:6.4 IDX18OD DIN 9021 736-0685 | |
| 111 | CP044726 | NUT:HEXLK:M6-1:NYLON:DIN 985 712-0691 | |
| 113 | CP060656 | SCR:M6x50mm:DIN 7985 710-04603 | |
| 114 | CP512575 | SUPPORT | |
| 115 | CP512721 | COUNTER BRACKET L:H: | |
| 116 | CP512722 | COUNTER BRACKET R.H. | |
| 117 | CP512724 | SUPPORT | |
| 118 | CP512576 | BAIL GUIDE L.H. | |
| 119 | CP512723 | BAIL GUIDE L.H. | |
| 120 | 631-0124 | FLANGE | |
| 121 | 752S180S50 | Fh180v-as50 |
