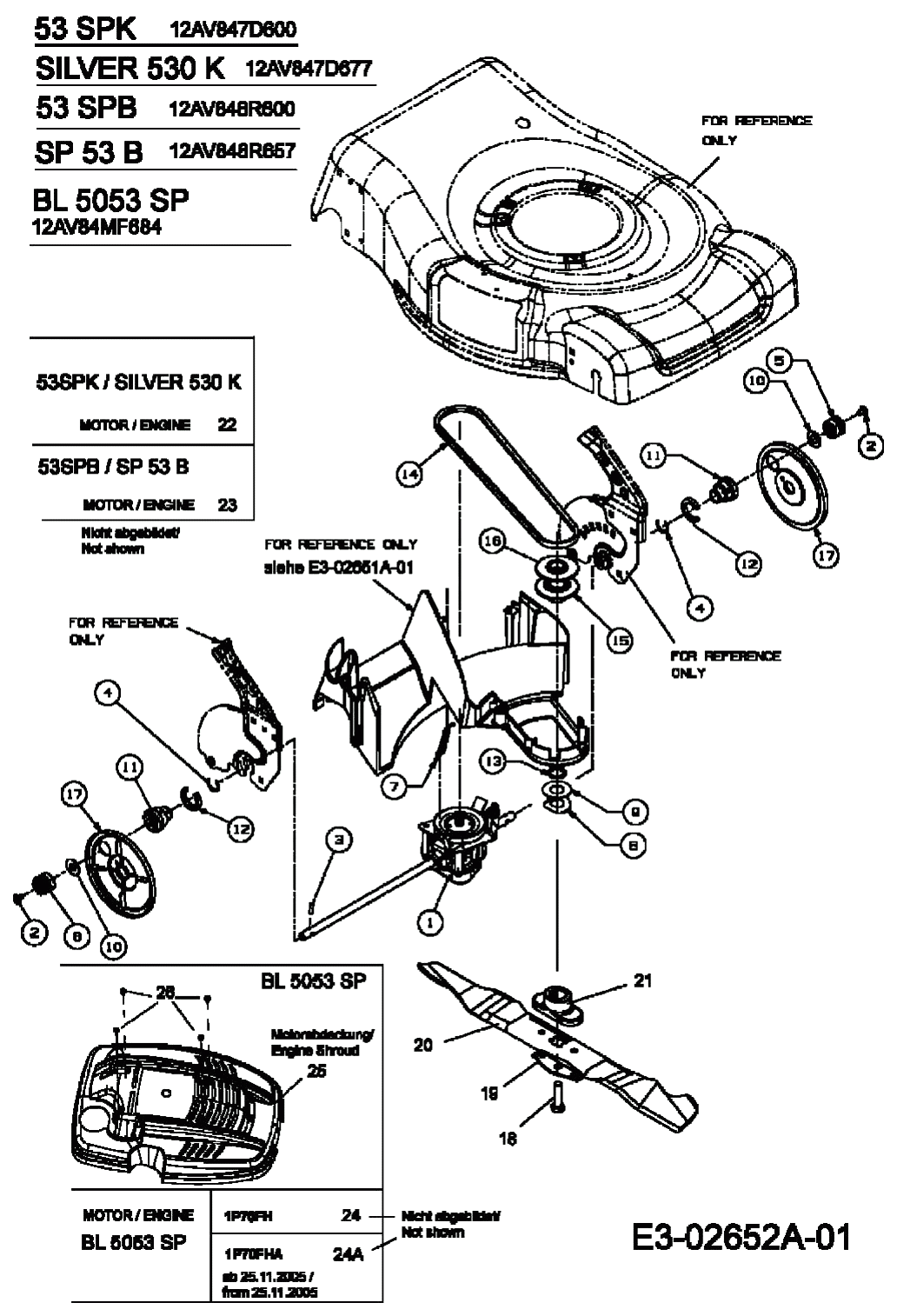

MTD Артикул 12AV848R600 (год выпуска 2006). Коробка передач, нож, двигатель

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

REF.	АРТИКУЛ	ОПИСАНИЕ
1	618-04378	TRANSMISSION ASMSELF PROPELLED 618-04378B
2	710-04531	Болт 1/4-20 x.390:PANTRXI
3	715-0221	Штифт 3/16 x 3/4
4	716-0198	Кольцо стопорное 875
5	717-04184A	GEAR:SPUR:14 T:LH 717-04184C
6C	687-02206709	Braket Handle
6	717-04192A	GEAR:SPUR:14 T:RH 717-04192C
7	712-04065	Гайка 3/8-16:GRF:NYLON
7	732-0320	Пружина 038 x 3.25
8	720-0230	"GRIP:FOAM: .50 ID X 3.54"" LG "
8	736-0513	WASHER:SPR:.890 x 1.70 x .048
9	732-04338	SPR:LVR:SP:CHA 732-04338B
9	736-0514	Шайба 885 x 1.850 x.060
10	736-0741	WASHER:BLVL:.760 x 1.250 x.041
10	736-3084	Шайба 510 X 1.120 X .060
11	738-1172	SCR:SHLDR:.750 x.500 x 3/8-16
11	748-04073C	SUPT:BRG:TRANS
12	741-0751	HEIGHT ADJUSTMENT BEARING
12	750-04317	SPCR:CLIP:30MM ID x 6 MM LG
13	787-01342638	"DECK:RD:21"" ECON:800 SERIES 787-01342A-R"
13A	787-01342650	"DECK:RD:21"" ECON:800 SERIES 787-01342ARM"
13B	787-01342629
13C	787-01342709	"DECK:RD:21"" ECON:800 SERIES 787-01342AMA"
13	750-1071	SLEEVE SPACER
14	634-04207C	"DRIVE WHEEL 8"" 634-04207D "
14	754-04093	BELT:V TYPE:3L X 35.18 POLY
15	734-04014B	WHEEL
15	756-04156B	DEMIE POULIE INFERIEURE
16	756-04157B	DEMIE POULIE SUPERIEURE
17	782-7551A	CVR:WHL:DUST
18	710-1044	Болт 3/8-24:1.50:GR8:SPEC
19	736-0524B	BLADE BELL SUPP. SPRING STEEL
20	742-0741	"BLADE 21"" MULCHING W/STAR 742-0741A "
21	748-0376E	Адаптер ножа 6X1.19 W/STAR
22	752S180S50	Fh180v-as50
23	752B1904B1	Engine Bands Quantum
24	752Z1P70FH	ENGINE 173 CC OHV VERTIC SHAFT 752Z5P70MHB
24A	752Z1P70FHA	ENGINE 173 CC OHV VERTIC SHAFT 752Z5P70MHB
25	731-05575	SHRD:ENG:M3 BLACK
26	710-04577	SCR:MACH:M4-.7:10.00 PANPHI
48	782-3030637	HANDLE BRKT. ASS± - R.H.
49	710-1017	Саморез
52	710-0654A	Болт TTSEMS:3/8-16:1.000:HXLWSH
53	682-0075638	Дека в сб. 682-0075638
53A	682-0075668	"Deck Kpl. 21"""
53B	682-0075720	"Deck Kpl. 21"""
53C	682-0075650	"Deck Kpl. 21"""
53D	682-0075665	"Deck Kpl. 21"""
53E	682-0075674	"DECK 21"" YM YELLOW "
55	732-0700	Провод
56	731-1236	TRSHD:4.30 X 17.66 LG
57	782-7599B637	Rear Chute Door
58	782-9050	GRASS BAG BRACKET
59	731-0068	HARDTOP COVER
61	747-0919637	Рамка травосборника
62	664-0080	Травосборник
63	750-04438A	SPCR:SLEV:25MMX1.375X.620
64	756-04161	PUL:HALF:UPR:25MM ID X 2.62 OD
65	756-04160	PUL:HALF:KEY:25MM ID X 2.62 OD
66	736-0250	WASHER:FLAT:1.00x1.75x.107
67	736-04173	WASHER:SPR:1.005X1.825X.048
68	748-04082	Адаптер ножа 25mm x 2.15 W/STAR
70	750-1260	SPACER
72	736-0524B	BLADE BELL SUPP. SPRING STEEL
73	742-0828	BLADE 53CM 2 IN 1 w/STAR 742-04364
73A	742-04100	BLADE:20.75:MULCH W/STAR
74	748-0377C	ADAPTER:BLADE:#6X2.15 748-0377E
75	710-1257	SCREW HHCS:3/8-24:2.50:GR8:SPE
76	748-0358	SPACER:.880 ID x1.280 x.240
77	736-0514	Шайба 885 x 1.850 x.060
78	736-0513	WASHER:SPR:.890 x 1.70 x .048
79	756-0962	PULLEY-HALF-UPPER
80	756-0979	PULLEY-HALF-LOWER
81	734-1979	Колесо 8x2 LINK BLK PL
81A	734-1821	WHL:COMPL:8x2 SWAV GRAY BB
82	638-0005	AXLE ASSY. RR
83	682-7518637	TRANSMISSION AXLE
84	682-7524637	Кронштейн 682-7524637
85	710-0604A	Винт TT:5/16-18:0.625HXINDWSH
86	710-0653	Винт TT:1/4-20:0.375:HXINDWSH
87	710-0751	HHCS:1/4-20:.620:GR5:STD
89	710-1315	SCR:TT:3/8-16:1.250:HXINDWSH:S
90	711-0835	CLEVIS PIN
91	713-0421	CHAIN ENDLESS
92	714-0474	PIN:COTTER 1/8 OD x.75
93	720-0230	"GRIP:FOAM: .50 ID X 3.54"" LG "
94	732-0803A	Ручка переключения
95	732-0818	TORSION SPRING
