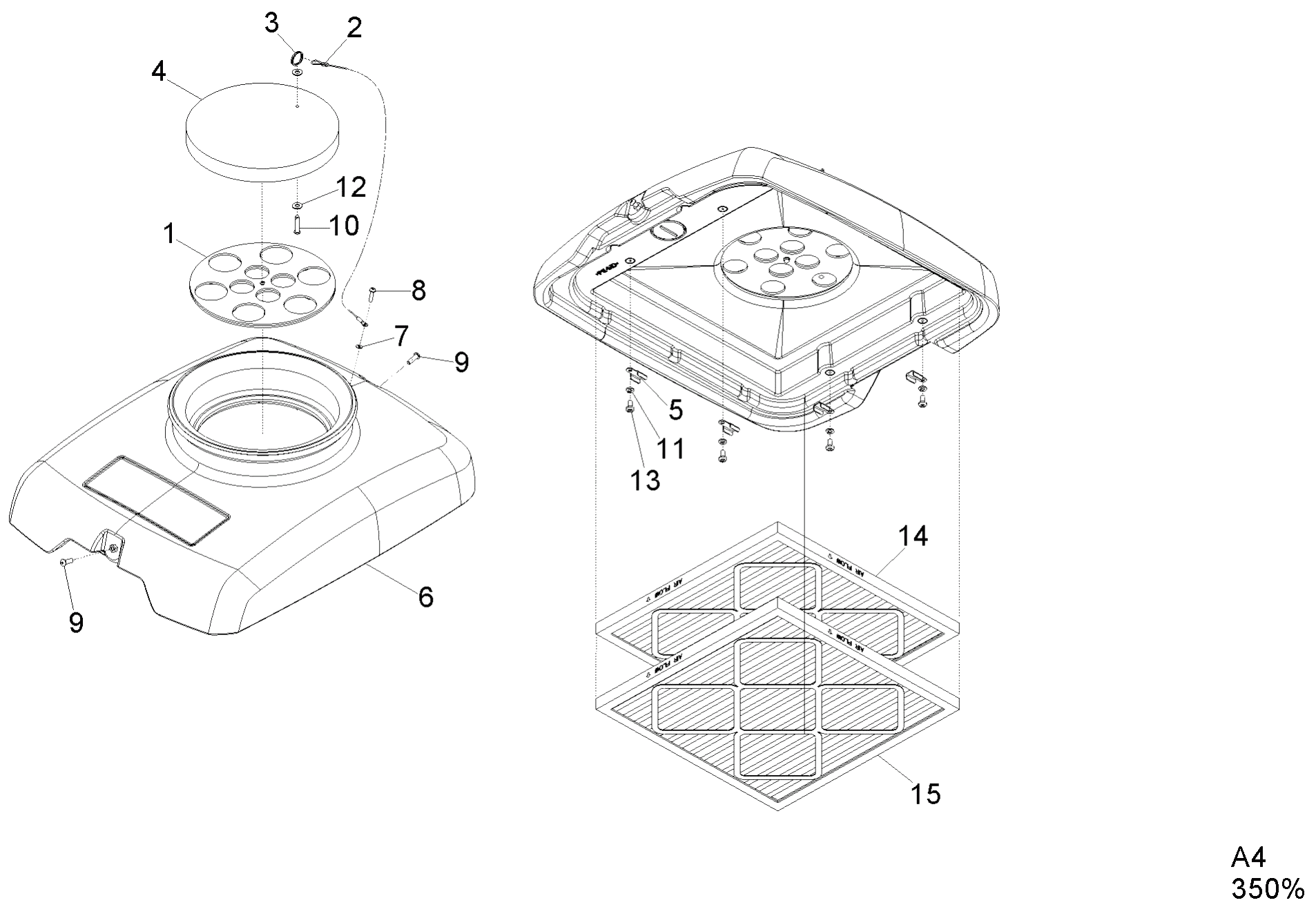

Karcher (Керхер) Корпус верхняя часть (0.165-896.0)
Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85
| REF. |
АРТИКУЛ |
ОПИСАНИЕ |
ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
| 1 |
8.633-875.0 |
Плита дросселирование |
|
| 2 |
8.633-808.0 |
Веревка |
|
| 3 |
8.633-804.0 |
Кольцо |
|
| 4 |
8.624-713.0 |
MOTOR, 115V 3SPD 1/2HP |
|
| 4 |
8.600-528.0 |
Motor 230V 3SPD 1/2HP |
|
| 4 |
8.633-800.0 |
Изоляция |
|
| 5 |
8.621-971.0 |
KNOB, CARPET CLAMP |
|
| 5 |
8.633-652.0 |
Листовой металл зажим |
|
| 6 |
8.621-676.0 |
CLAMP, CARPET AB |
|
| 6 |
8.635-988.0 |
Кожух сверху |
|
| 7 |
8.627-155.0 |
Nut M6x1 HEX NYLOCK PLTD |
|
| 7 |
8.627-899.0 |
Washer #8 FLAT |
|
| 8 |
8.613-734.0 |
Washer M6 FLAT BLK |
|
| 8 |
8.627-629.0 |
SCR, #10X3/4 PPHST HI-LO BLK |
|
| 9 |
8.621-842.0 |
GUARD, FRONT AB |
|
| 9 |
8.627-546.0 |
SCR, 1/4-20 X 3/4 BHCS BLK |
|
| 10 |
8.613-673.0 |
SCREW, M6-1 X 40 PNHMS BLKOX |
|
| 10 |
8.627-262.0 |
Болт |
|
| 11 |
8.617-334.0 |
WASHER, SPLIT LOCK, 1/4, SS |
|
| 12 |
8.613-739.0 |
Washer M4 RIVET BACKUP |
|
| 12 |
8.601-063.0 |
Washer 1/4 ID X 5/8 OD SS |
|
| 13 |
8.622-585.0 |
WASHER, M3, FL, ISO 7089, SST |
|
| 13 |
8.627-616.0 |
SCR, 10-32X5/8 PPHMS BLK |
|
| 14 |
8.613-683.0 |
SET SCR, M8 X 8MM CUP PT. |
|
| 15 |
8.613-674.0 |
SCREW, M6-1 X 15 PNHMS BLKOX |
|
| 16 |
8.621-784.0 |
FAN, SQUIRREL CAGE AB |
|
| 17 |
8.621-469.0 |
"""10"""" BLOWER GRILL """ |
|
| 18 |
8.634-953.0 |
CORD ASM, 14 X 3 CCC X 25' |
|
| 18 |
8.628-885.0 |
CORD ASM, AB EURO |
|
| 18 |
8.621-702.0 |
CORD ASSEMBLY, 14X3 SJTX25'AB |
|
| 19 |
8.613-654.0 |
RIVET, M4 X 14MM |
|
| 20 |
8.621-662.0 |
CAPACITOR, AB |
|
| 21 |
8.622-509.0 |
Switch AB |
|
| 23 |
8.613-684.0 |
SET SCR, M3-.5 X 8MM |
|
| 24 |
8.621-970.0 |
KNOB, SWITCH |
|
| 25 |
8.622-575.0 |
Washer M4 INT STAR BLKZNC PLT |
|
| 26 |
8.621-972.0 |
KNOB, HANDLE LOCK |
|
| 27 |
8.622-602.0 |
Wheel 5D X 1.25 X 13MMID GRY |
|
| 29 |
8.629-666.0 |
RIVET, M4 X 18MM |
|
| 30 |
8.637-218.0 |
SCREW, M4-.7 X 10 PNHSMS, BLK |
|
