Karcher (Керхер) Детали (0.208-682.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

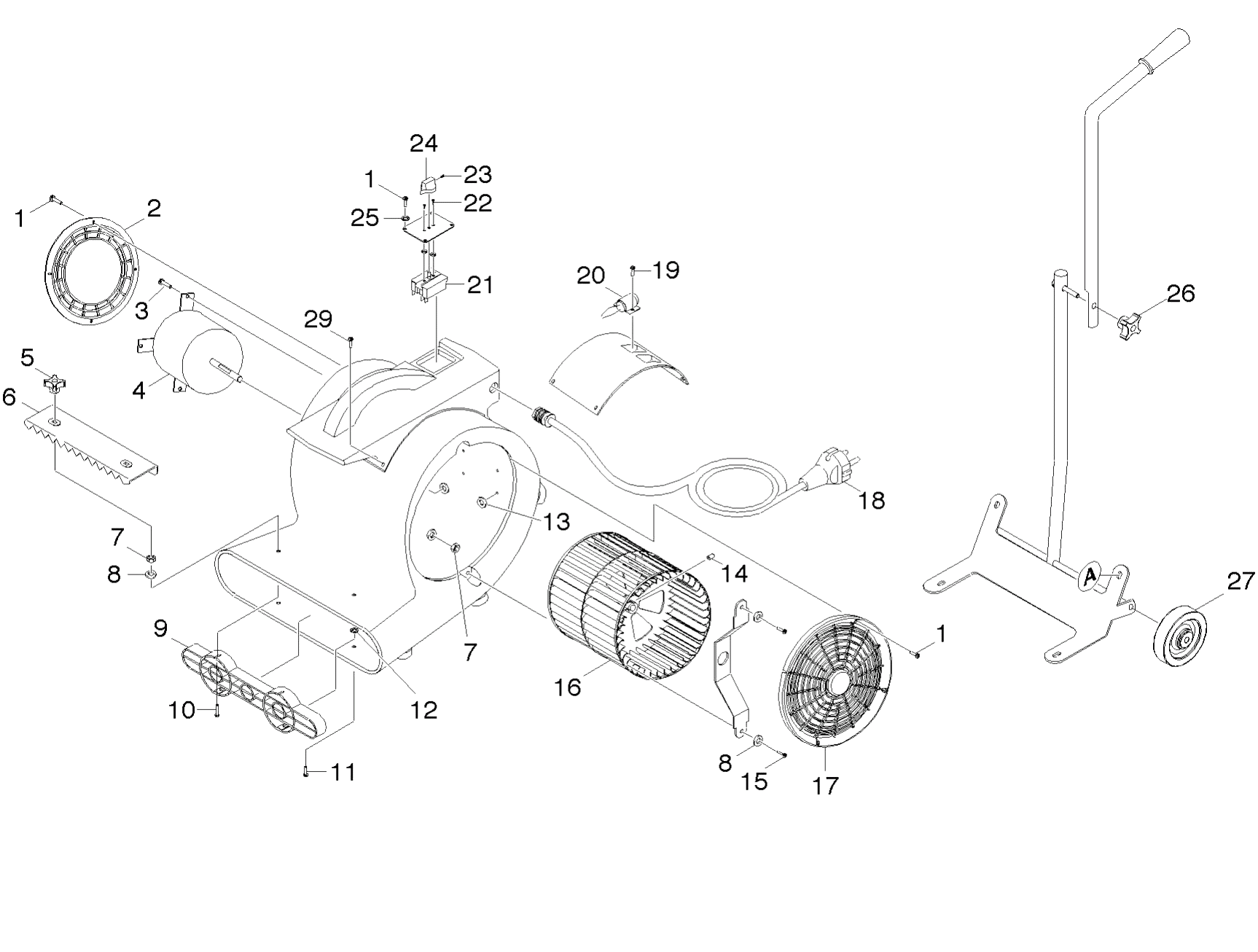

REF.	АРТИКУЛ	ОПИСАНИЕ
1	8.613-675.0	SCREW, M4-.7 X 15 PNHSMS
2	8.621-470.0	"""9"""" BLOWER GRILL """
3	8.613-677.0	SCREW, M6-1 X 16 FLHMS BLKOX
4	8.600-528.0	Motor 230V 3SPD 1/2HP
4	8.624-713.0	MOTOR, 115V 3SPD 1/2HP
5	8.621-971.0	KNOB, CARPET CLAMP
6	8.621-676.0	CLAMP, CARPET AB
7	8.627-155.0	Nut M6x1 HEX NYLOCK PLTD
8	8.613-734.0	Washer M6 FLAT BLK
9	8.621-842.0	GUARD, FRONT AB
10	8.613-673.0	SCREW, M6-1 X 40 PNHMS BLKOX
12	8.613-739.0	Washer M4 RIVET BACKUP
13	8.622-585.0	WASHER, M3, FL, ISO 7089, SST
14	8.613-683.0	SET SCR, M8 X 8MM CUP PT.
15	8.613-674.0	SCREW, M6-1 X 15 PNHMS BLKOX
16	8.621-784.0	FAN, SQUIRREL CAGE AB
17	8.621-469.0	"""10"""" BLOWER GRILL """
18	8.628-885.0	CORD ASM, AB EURO
18	8.634-953.0	CORD ASM, 14 X 3 CCC X 25'
18	8.621-702.0	CORD ASSEMBLY, 14X3 SJTX25'AB
19	8.613-654.0	RIVET, M4 X 14MM
20	8.621-662.0	CAPACITOR, AB
21	8.622-509.0	Switch AB
23	8.613-684.0	SET SCR, M3-.5 X 8MM
24	8.621-970.0	KNOB, SWITCH
25	8.622-575.0	Washer M4 INT STAR BLKZNC PLT
26	8.621-972.0	KNOB, HANDLE LOCK
27	8.622-602.0	Wheel 5D X 1.25 X 13MMID GRY
29	8.629-666.0	RIVET, M4 X 18MM
30	8.637-218.0	SCREW, M4-.7 X 10 PNHSMS, BLK
