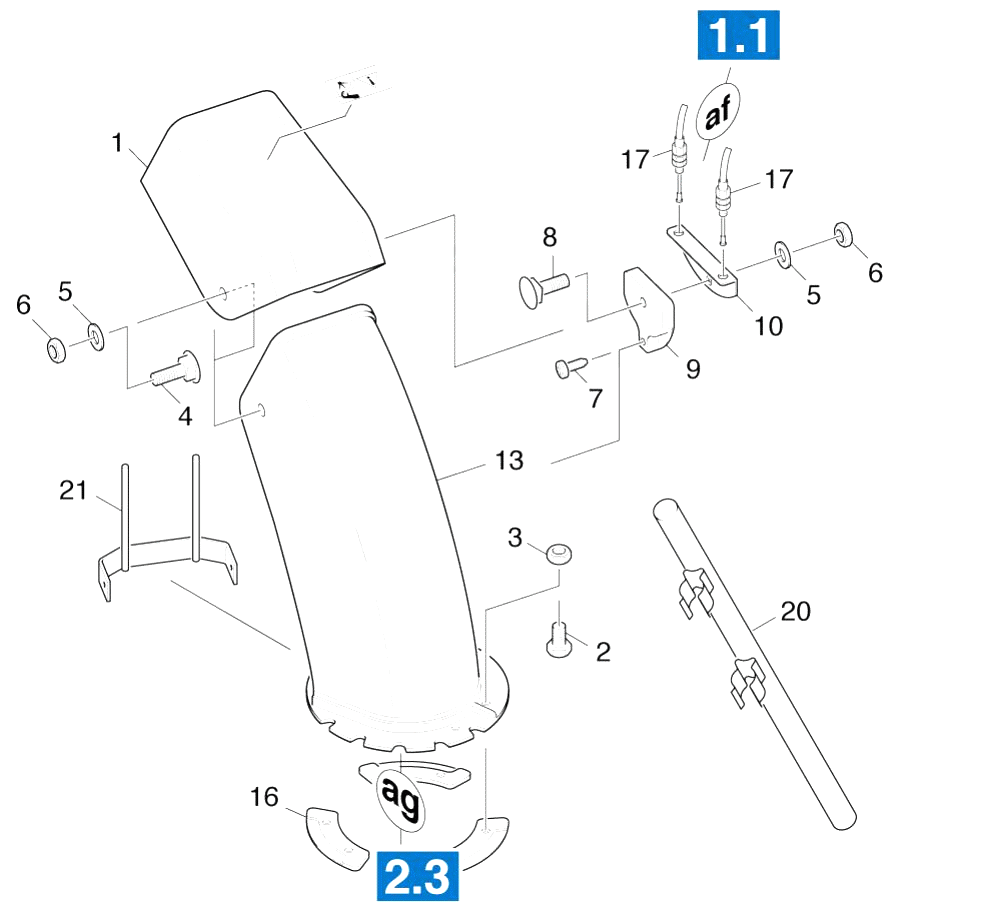

| REF. | АРТИКУЛ | ОПИСАНИЕ | ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
|---|---|---|---|
| 1 | 6.970-500.0 | Moulded part above | |
| 2 | 7.304-536.0 | Hexagonal head screw M 6x20-A4-70 ISO 4 | |
| 3 | 7.311-512.0 | Hexagon nut M 6-8-A2E ISO 7040 | |
| 4 | 7.303-204.0 | Saucer-head screw M8x20 -St-A2R DIN 603 | |
| 5 | 7.312-005.0 | Washer 10-200HV-A3E ISO 7090 | |
| 6 | 7.311-510.0 | Hexagon nut M 8-8-A2E ISO 7040 | |
| 7 | 7.303-112.0 | Screw 6x20 -10.9-R2R (In6Rd) | |
| 8 | 7.303-008.0 | Saucer-head screw M 8x35-ST-A0P DIN 603 | |
| 9 | 6.970-479.0 | Moulded part | |
| 10 | 6.970-501.0 | Angle adjustment | |
| 11 | 6.970-276.0 | Screw | |
| 13 | 6.970-850.0 | Funnel bottom part | |
| 14 | 6.970-678.0 | Clamp | |
| 15 | 6.970-122.0 | """Hexagon nut 3/8""""-24 """ | |
| 16 | 6.970-360.0 | Flange | |
| 17 | 6.970-502.0 | Pull rope | |
| 19 | 6.970-590.0 | Nut 5/16-18 | |
| 20 | 6.970-571.0 | Safety rod wood | |
| 21 | 6.970-572.0 | Protection part handhold |
