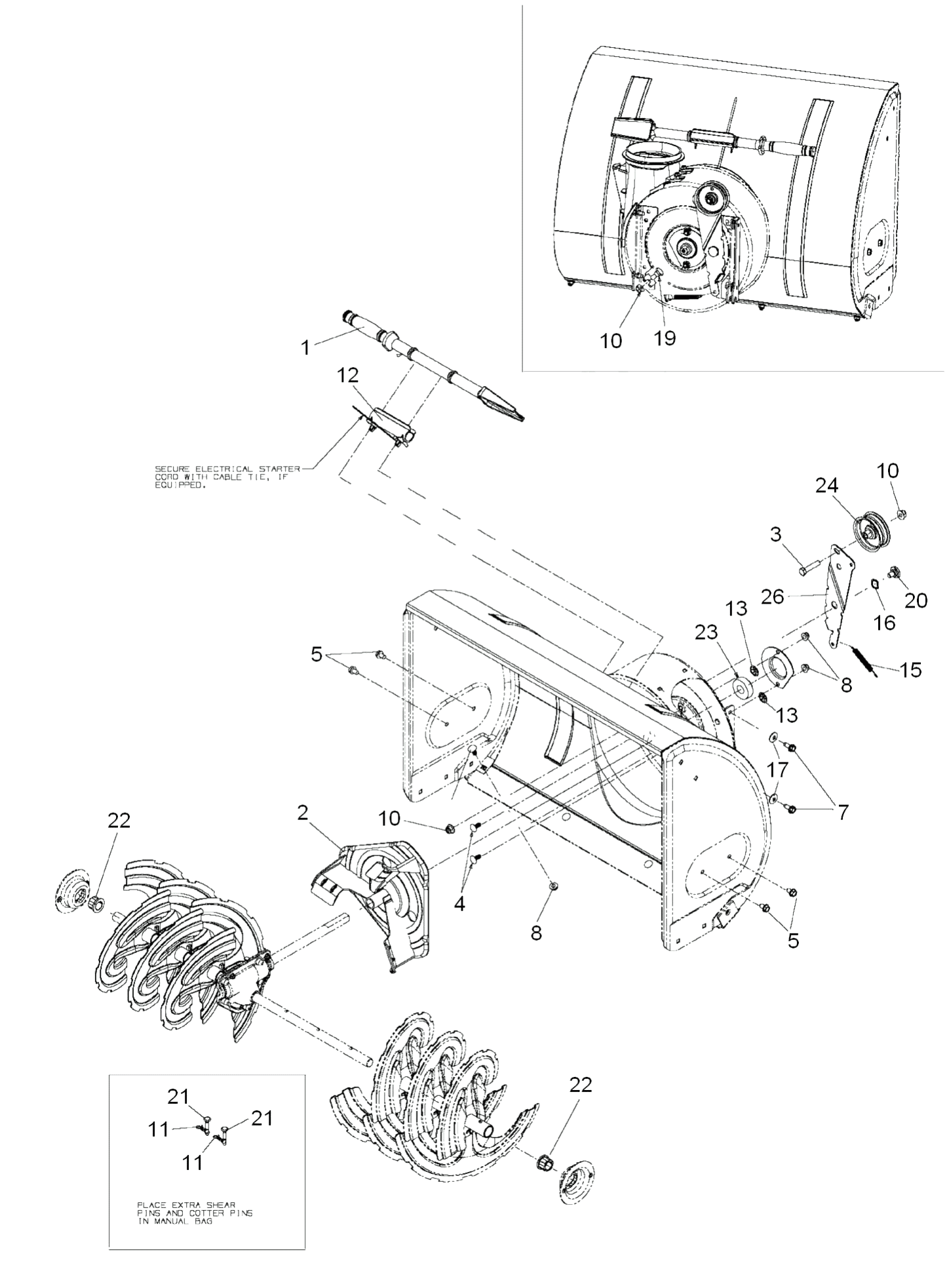

| REF. | АРТИКУЛ | ОПИСАНИЕ | ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
|---|---|---|---|
| 1 | 6.971-127.0 | Cleaning tool MTD 731-2643 | |
| 1 | 6.971-146.0 | Worm gearing | |
| 1 | 6.970-647.0 | Screw | |
| 1 | 6.970-407.0 | Threaded insert | |
| 1 | 6.970-477.0 | Bracket | |
| 1 | 6.970-671.0 | Screw 1/4-28 | |
| 2 | 6.970-951.0 | Shovel wheel | |
| 2 | 6.970-825.0 | Drive wheel complete | |
| 2 | 6.970-698.0 | Housing screw conveyer | |
| 2 | 6.970-644.0 | Screw | |
| 2 | 6.970-474.0 | Hand grip complete LE | |
| 2 | 6.970-671.0 | Screw 1/4-28 | |
| 3 | 6.970-826.0 | Hexagonal head screw 3/8-16:1.75:GR5:STD | |
| 3 | 6.971-147.0 | Carrier | |
| 3 | 7.312-005.0 | Washer 10-200HV-A3E ISO 7090 | |
| 3 | 6.970-402.0 | Roller | |
| 3 | 6.970-606.0 | Screw 5/16-18 | |
| 3 | 6.970-505.0 | Threaded rod | |
| 4 | 6.970-878.0 | Screw | |
| 4 | 7.303-204.0 | Saucer-head screw M8x20 -St-A2R DIN 603 | |
| 4 | 6.971-148.0 | Control system | |
| 4 | 6.970-587.0 | Screw 1/4-20X0.5 | |
| 4 | 6.970-192.0 | Washer | |
| 5 | 6.970-586.0 | Screw 5/16-18.75 | |
| 5 | 6.970-608.0 | Screw | |
| 5 | 6.970-449.0 | Belt pulley half | |
| 5 | 7.312-018.0 | Washer 20-200HV-A3E ISO 7090 | |
| 5 | 6.970-476.0 | Hand grip complete left | |
| 6 | 7.303-139.0 | Saucer-head screw M6x20 -A2 DIN 603 | |
| 6 | 6.970-817.0 | Bolt | |
| 6 | 6.970-450.0 | Drive belt | |
| 6 | 6.970-403.0 | Angle | |
| 6 | 7.303-008.0 | Saucer-head screw M 8x35-ST-A0P DIN 603 | |
| 7 | 6.970-879.0 | Flanged nut hexagonal | |
| 7 | 6.971-149.0 | Screw | |
| 7 | 7.312-285.0 | Washer 10 -200HV-A2E ISO7093-1 | |
| 7 | 6.970-404.0 | Angle | |
| 7 | 6.970-410.0 | Angle | |
| 8 | 6.970-879.0 | Flanged nut hexagonal | |
| 8 | 6.970-818.0 | Nut stop | |
| 8 | 6.971-150.0 | Screw | |
| 8 | 7.312-262.0 | Washer 10 -100HV-A3E ISO 7094 | |
| 8 | 6.970-405.0 | Flanged bearing | |
| 9 | 6.970-802.0 | Nut stop | |
| 9 | 6.970-747.0 | Screw 1/4-20X1.0 | |
| 9 | 6.970-546.0 | Tank belt pulley | |
| 9 | 7.312-028.0 | Washer 14-200HV-A3E ISO7090 | |
| 10 | 6.970-802.0 | Nut stop | |
| 10 | 6.970-822.0 | Pin | |
| 10 | 6.970-643.0 | Screw | |
| 10 | 6.970-547.0 | Drive belt | |
| 10 | 6.970-518.0 | Flanged bearing | |
| 11 | 6.970-822.0 | Pin | |
| 11 | 6.970-844.0 | Screw | |
| 11 | 6.970-545.0 | Tank belt pulley | |
| 11 | 6.970-408.0 | Angle | |
| 11 | 6.970-590.0 | Nut 5/16-18 | |
| 11 | 6.970-587.0 | Screw 1/4-20X0.5 | |
| 12 | 6.971-128.0 | Holder MTD 731-2635 | |
| 12 | 6.970-791.0 | Lock washer | |
| 12 | 6.970-647.0 | Screw | |
| 12 | 6.970-409.0 | Sheet metal component frame | |
| 12 | 6.970-507.0 | Leverage | |
| 13 | 6.970-791.0 | Lock washer | |
| 13 | 6.970-827.0 | Adapter | |
| 13 | 6.970-454.0 | Belt pulley | |
| 13 | 7.304-404.0 | Hexagonal head screw M8x40-8.8-A2E ISO | |
| 13 | 6.970-506.0 | Bottom plate | |
| 14 | 6.970-636.0 | Spring | |
| 14 | 6.970-879.0 | Flanged nut hexagonal | |
| 14 | 6.970-455.0 | Belt pulley | |
| 14 | 6.970-505.0 | Threaded rod | |
| 14 | 7.312-268.0 | Washer 8 -A2 ISO 7094 | |
| 14 | 7.303-112.0 | Screw 6x20 -10.9-R2R (In6Rd) | |
| 15 | 6.970-952.0 | Extension spring | |
| 15 | 6.970-637.0 | Washer | |
| 15 | 6.970-818.0 | Nut stop | |
| 15 | 6.970-645.0 | Screw | |
| 15 | 6.970-410.0 | Angle | |
| 15 | 6.970-413.0 | Bowden wire | |
| 16 | 6.970-637.0 | Washer | |
| 16 | 6.970-621.0 | Washer | |
| 16 | 6.971-151.0 | Nut | |
| 16 | 6.970-652.0 | Washer | |
| 16 | 6.970-411.0 | Leverage | |
| 16 | 6.970-479.0 | Moulded part | |
| 16 | 6.970-408.0 | Angle | |
| 17 | 6.970-621.0 | Washer | |
| 17 | 6.970-133.0 | Hexagon nut 3/8-16 | |
| 17 | 6.970-412.0 | Bowden wire | |
| 18 | 6.970-828.0 | Screw | |
| 18 | 6.970-822.0 | Pin | |
| 18 | 6.970-856.0 | Hexagonal head screw 1/4-28:.50:GR5:STD | |
| 18 | 6.970-413.0 | Bowden wire | |
| 18 | 6.970-618.0 | Retaining clip | |
| 19 | 6.970-828.0 | Screw | |
| 19 | 6.970-640.0 | Screw | |
| 19 | 6.971-152.0 | Star grip | |
| 19 | 7.312-005.0 | Washer 10-200HV-A3E ISO 7090 | |
| 20 | 6.970-640.0 | Screw | |
| 20 | 6.970-780.0 | Bolt | |
| 20 | 6.971-153.0 | Knob | |
| 20 | 6.970-649.0 | Spring | |
| 20 | 7.311-004.0 | Hexagon nut M8 -8-A3E ISO 4032 | |
| 21 | 6.970-780.0 | Bolt | |
| 21 | 6.970-443.0 | Flanged bearing | |
| 21 | 6.970-289.0 | Plug | |
| 21 | 6.970-618.0 | Retaining clip | |
| 21 | 6.970-414.0 | Sheet metal component complete | |
| 22 | 6.970-443.0 | Flanged bearing | |
| 22 | 6.970-434.0 | Ball bearing | |
| 22 | 6.971-154.0 | Ejection slot top part | |
| 22 | 6.970-457.0 | Holder | |
| 22 | 6.970-414.0 | Sheet metal component complete | |
| 22 | 6.970-415.0 | Sleeve | |
| 23 | 6.970-434.0 | Ball bearing | |
| 23 | 6.970-250.0 | Deflection pulley | |
| 23 | 6.971-155.0 | Ejection slot bottom part | |
| 23 | 6.970-415.0 | Sleeve | |
| 24 | 6.970-829.0 | Ролик | |
| 24 | 6.971-156.0 | Holder | |
| 24 | 7.312-005.0 | Washer 10-200HV-A3E ISO 7090 | |
| 25 | 6.970-861.0 | Holder tension roller | |
| 25 | 6.971-157.0 | Extension spring | |
| 25 | 6.970-458.0 | Covering cap | |
| 26 | 6.970-861.0 | Holder tension roller | |
| 26 | 6.971-128.0 | Holder MTD 731-2635 | |
| 26 | 6.970-416.0 | Frictional wheel | |
| 29 | 6.970-700.0 | Washer | |
| 30 | 6.970-276.0 | Screw | |
| 31 | 6.971-158.0 | Screw | |
| 32 | 6.970-641.0 | Bush | |
| 33 | 6.971-159.0 | Crank arm | |
| 34 | 6.971-160.0 | Направляющая | |
| 36 | 6.970-059.0 | Button | |
| 37 | 6.970-482.0 | Switching lever | |
| 43 | 6.970-483.0 | Holder | |
| 44 | 6.970-484.0 | Switch rod | |
| 45 | 6.970-485.0 | Lever complete | |
| 49 | 6.970-489.0 | Holder crank | |
| 51 | 6.970-289.0 | Plug | |
| 54 | 6.971-119.0 | Bowden wire steering | |
| 55 | 6.970-486.0 | Crank bottom part | |
| 56 | 6.970-143.0 | """Spring clip 5/16"""" """ | |
| 58 | 6.970-488.0 | Sleeve | |
| 61 | 6.970-495.0 | Angle left | |
| 62 | 6.970-496.0 | Angle right |
