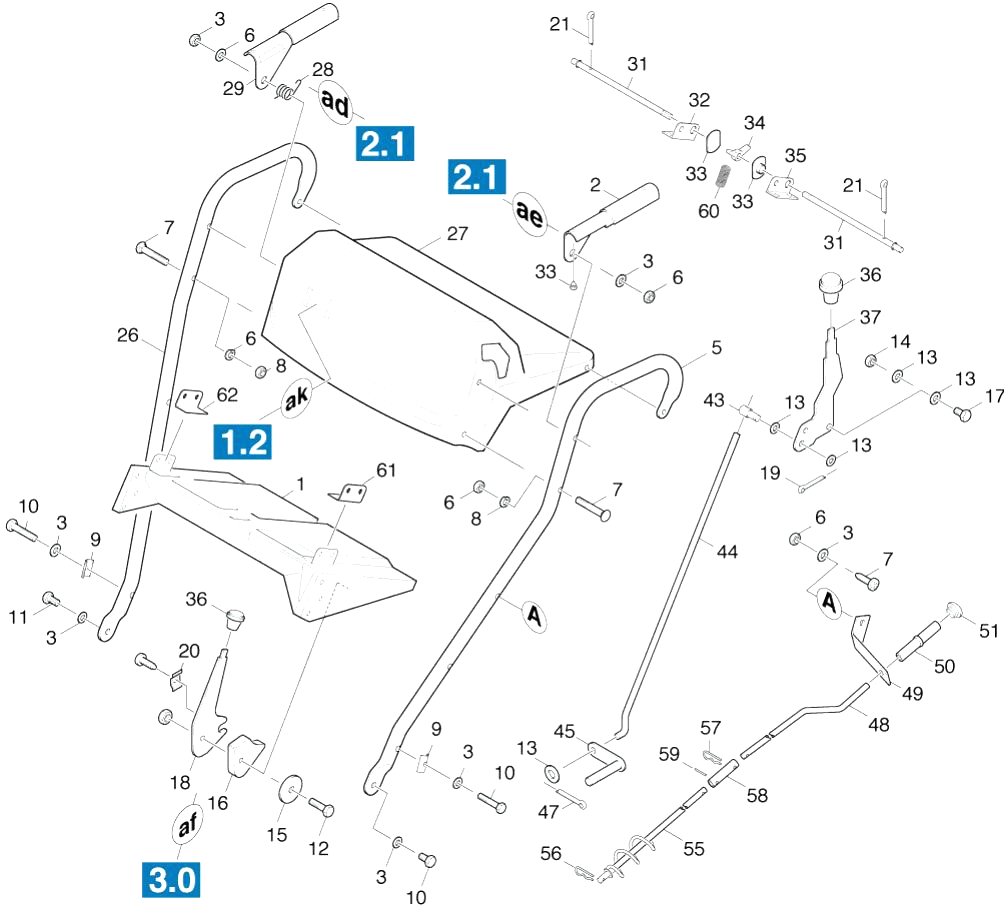

| REF. | АРТИКУЛ | ОПИСАНИЕ | ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
|---|---|---|---|
| 1 | 6.970-477.0 | Bracket | |
| 1 | 6.970-647.0 | Screw | |
| 2 | 6.970-402.0 | Roller | |
| 3 | 6.970-192.0 | Washer | |
| 3 | 7.312-005.0 | Washer 10-200HV-A3E ISO 7090 | |
| 5 | 6.970-476.0 | Hand grip complete left | |
| 5 | 6.970-403.0 | Angle | |
| 6 | 7.311-004.0 | Hexagon nut M8 -8-A3E ISO 4032 | |
| 6 | 6.970-450.0 | Drive belt | |
| 6 | 6.970-404.0 | Angle | |
| 7 | 7.303-008.0 | Saucer-head screw M 8x35-ST-A0P DIN 603 | |
| 8 | 7.312-005.0 | Washer 10-200HV-A3E ISO 7090 | |
| 8 | 7.312-262.0 | Washer 10 -100HV-A3E ISO 7094 | |
| 8 | 7.311-004.0 | Hexagon nut M8 -8-A3E ISO 4032 | |
| 9 | 6.970-401.0 | Moulded part | |
| 9 | 6.970-546.0 | Tank belt pulley | |
| 9 | 6.970-116.0 | Hexagon nut 1/4-20 | |
| 10 | 6.970-599.0 | Screw 5/16-18 | |
| 10 | 6.970-547.0 | Drive belt | |
| 10 | 7.303-112.0 | Screw 6x20 -10.9-R2R (In6Rd) | |
| 11 | 6.970-600.0 | Screw | |
| 11 | 6.970-545.0 | Tank belt pulley | |
| 12 | 7.304-404.0 | Hexagonal head screw M8x40-8.8-A2E ISO | |
| 12 | 6.970-600.0 | Screw | |
| 13 | 7.312-268.0 | Washer 8 -A2 ISO 7094 | |
| 13 | 6.970-454.0 | Belt pulley | |
| 14 | 6.970-122.0 | """Hexagon nut 3/8""""-24 """ | |
| 14 | 6.970-455.0 | Belt pulley | |
| 15 | 6.970-645.0 | Screw | |
| 15 | 6.970-592.0 | Cotter | |
| 16 | 6.970-479.0 | Moulded part | |
| 17 | 6.970-585.0 | Screw 3/8-24X1,5 | |
| 18 | 6.970-480.0 | Switching lever | |
| 19 | 7.312-260.0 | Washer 6 -100HV-A3E ISO 7094 | |
| 19 | 7.312-005.0 | Washer 10-200HV-A3E ISO 7090 | |
| 21 | 6.970-592.0 | Cotter | |
| 21 | 6.970-365.0 | Roller | |
| 21 | 6.970-122.0 | """Hexagon nut 3/8""""-24 """ | |
| 23 | 6.970-643.0 | Screw | |
| 23 | 7.312-028.0 | Washer 14-200HV-A3E ISO7090 | |
| 25 | 6.970-416.0 | Frictional wheel | |
| 26 | 6.970-475.0 | Hand grip complete right | |
| 26 | 6.970-421.0 | Spare part set transmission | |
| 27 | 6.970-478.0 | Cover | |
| 28 | 6.970-596.0 | Spring | |
| 29 | 6.970-473.0 | Hand grip complete right | |
| 31 | 6.970-490.0 | Bar | |
| 32 | 6.970-494.0 | Angle right | |
| 33 | 6.970-492.0 | Moulded part | |
| 35 | 6.970-491.0 | Angle left | |
| 36 | 6.970-059.0 | Button | |
| 37 | 6.970-482.0 | Switching lever | |
| 44 | 6.970-484.0 | Switch rod | |
| 48 | 6.970-344.0 | Crank top part | |
| 50 | 6.970-343.0 | Handhold | |
| 53 | 6.971-124.0 | Lever | |
| 55 | 6.970-486.0 | Crank bottom part | |
| 56 | 6.970-143.0 | """Spring clip 5/16"""" """ | |
| 57 | 6.970-594.0 | Clip | |
| 59 | 6.970-593.0 | Pin | |
| 61 | 6.970-495.0 | Angle left | |
| 62 | 6.970-496.0 | Angle right |
