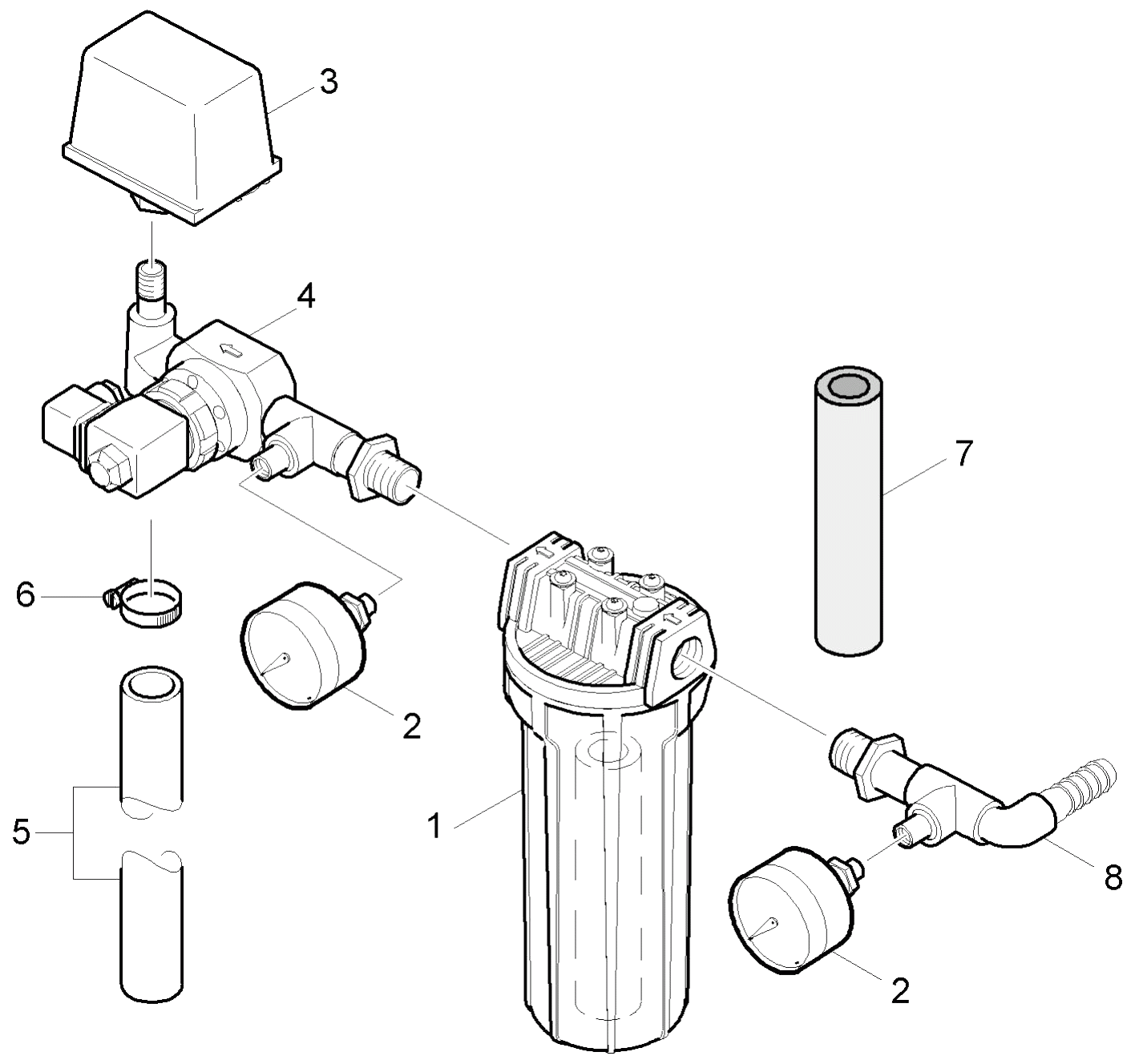

| REF. | АРТИКУЛ | ОПИСАНИЕ | ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
|---|---|---|---|
| 1 | 6.642-093.0 | Filter | |
| 2 | 6.640-041.0 | Pressure gauge 0-1 MPa, Monel | |
| 3 | 6.635-472.0 | Pressure safeguard 0,05 - 0,8 MPa | |
| 4 | 6.640-078.0 | Pressure gauge 0 - 2,5 MPa, 1.4571 | |
| 4 | 4.640-196.0 | Armature filter outlet WPC 600 SW | |
| 5 | 5.640-068.0 | Coupler lacquered Victaulic 42,4 | |
| 5 | 6.390-320.0 | Hose DN 16 | |
| 6 | 6.612-804.0 | Hose clip | |
| 7 | 6.610-278.0 | Hose polyamide Da 22mm - Di 18mm | |
| 7 | 6.640-014.0 | Filter cartridge 5µm | |
| 8 | 7.304-063.0 | Hexagonal head screw M12x90-A2-70 ISO 4 | |
| 8 | 4.640-195.0 | Armature filter input WPC 600 | |
| 9 | 7.312-047.0 | Serrated lock washer A13-1.4310 DIN 679 | |
| 10 | 7.312-054.0 | Washer 12-A2 ISO 7090 | |
| 11 | 7.311-030.0 | Hexagon nut M12-A2-70 ISO 7040 | |
| 12 | 5.640-053.0 | Sleeve | |
| 13 | 4.640-081.0 | Nozzle completely WPC 600 FW | |
| 90 | 6.640-118.0 | Kit seal slip-ring CRN3-27,CRI3-19 | |
| 100 | 6.640-119.0 | Kit O-Ring seal pump CRN3-27, CRI3-19 |
