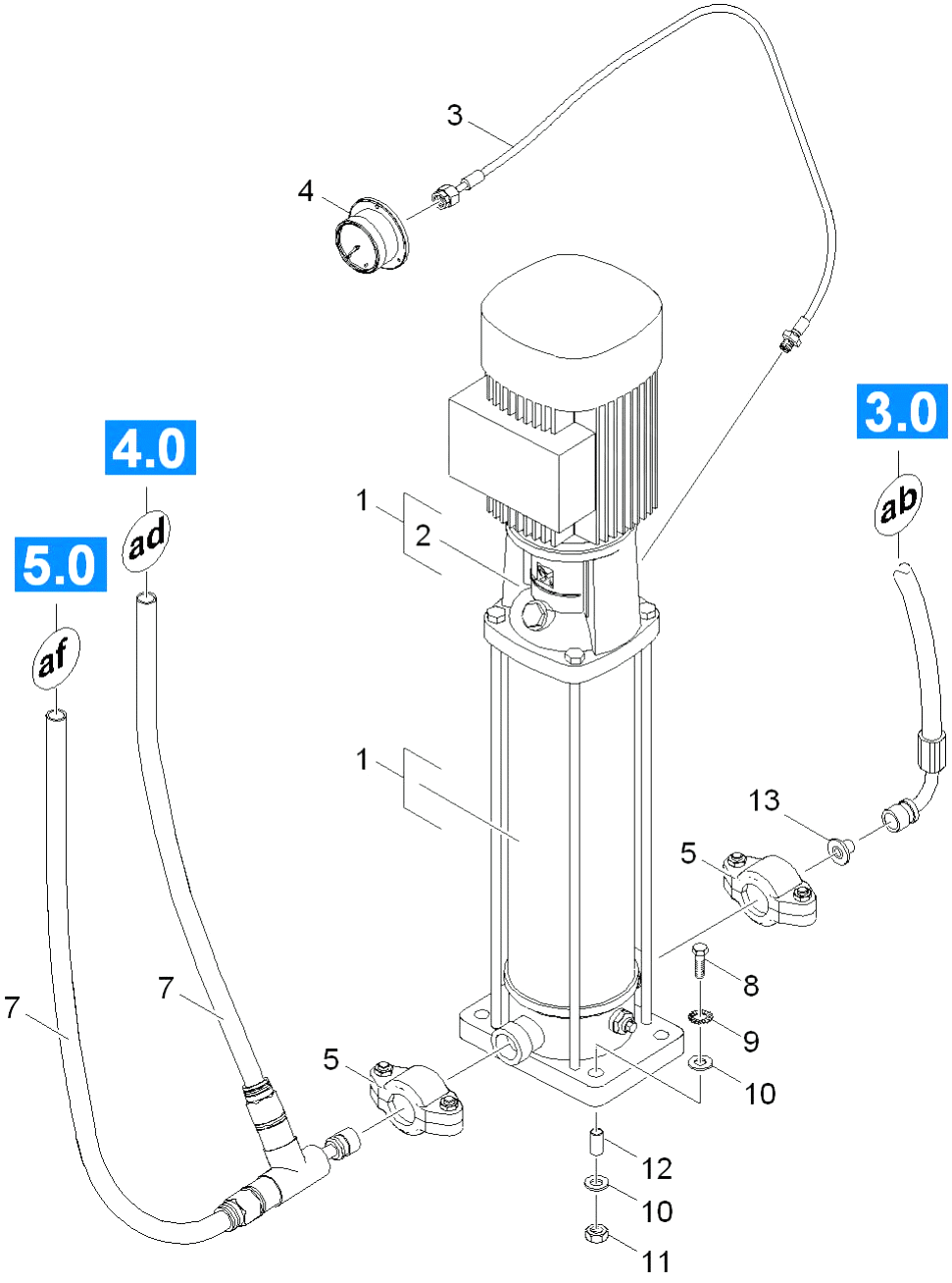

Karcher (Керхер) Центробежный насос высокое давление (0.208-347.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

REF.	АРТИКУЛ	ОПИСАНИЕ
1	6.640-114.0	Centrifugal pump high pressure CRI 3-19
1	6.365-067.0	Grooved ring 24X34
1	6.640-076.0	"""Pressure pipe diaphragm 300 psi, 4"""" """
2	6.640-120.0	Motor pump CRN3-27
2	5.115-307.0	Washer
3	6.640-092.0	High pressure hose pressure gauge pump 2
3	6.362-563.0	O-Ring seal 40,0 X 2,0-NBR 88
4	6.640-078.0	Pressure gauge 0 - 2,5 MPa, 1.4571
4	5.112-727.0	Втулка
5	5.640-068.0	Coupler lacquered Victaulic 42,4
5	6.365-069.0	Compact seal 24X36X7
6	6.343-144.0	Snap ring 24
7	6.610-278.0	Hose polyamide Da 22mm - Di 18mm
8	7.304-063.0	Hexagonal head screw M12x90-A2-70 ISO 4
8	5.363-202.0	Joint ring
9	7.312-047.0	Serrated lock washer A13-1.4310 DIN 679
10	7.312-054.0	Washer 12-A2 ISO 7090
10	7.304-461.0	Hexagonal head screw M 8x50-8.8-A2E IS
11	7.311-030.0	Hexagon nut M12-A2-70 ISO 7040
12	5.640-053.0	Sleeve
12	6.362-565.0	O-Ring seal 135,0 X 2,5-NBR 90
14	5.115-315.0	Washer
100	6.640-119.0	Kit O-Ring seal pump CRN3-27, CRI3-19
