Karcher (Керхер) Набор мембрана (0.208-210.0)
Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

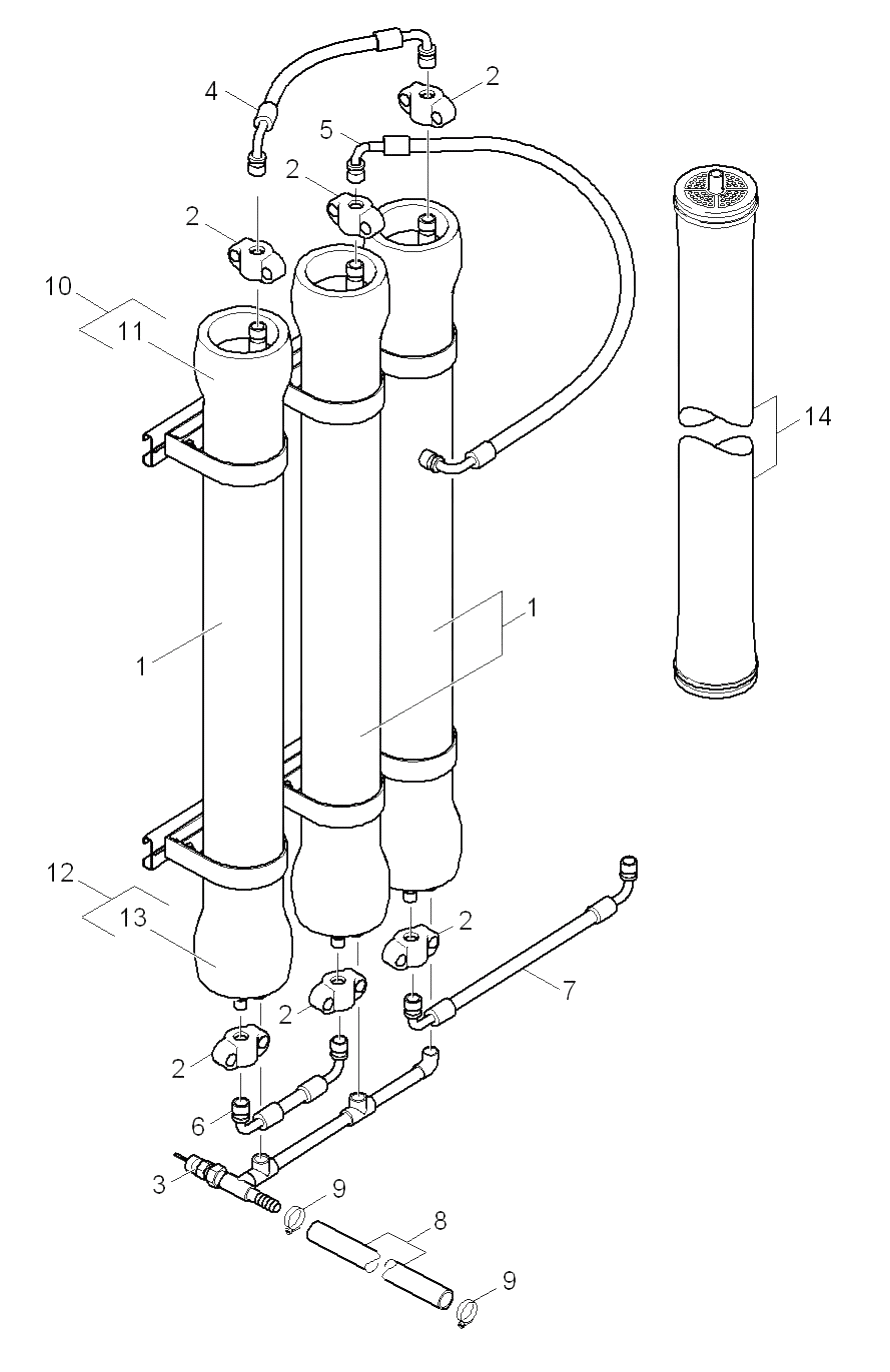

| REF. |
АРТИКУЛ |
ОПИСАНИЕ |
ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
| 0 |
3.532-970.0 |
Насосный агрегат 2000 high |
|
| 1 |
6.642-092.0 |
Pressure pipe diaphragm |
|
| 1 |
6.640-114.0 |
Centrifugal pump high pressure CRI 3-19 |
|
| 1 |
6.640-069.0 |
Centrifugal pump high pressure CRN 3-27, |
|
| 1 |
6.640-076.0 |
"""Pressure pipe diaphragm 300 psi, 4"""" """ |
|
| 1 |
6.642-093.0 |
Filter |
|
| 1 |
6.365-067.0 |
Grooved ring 24X34 |
|
| 2 |
5.640-027.0 |
Муфта лакированный Victaulic 3/4 |
|
| 2 |
6.640-120.0 |
Motor pump CRN3-27 |
|
| 2 |
6.640-121.0 |
Motor pump CRI3-19 |
|
| 2 |
6.640-041.0 |
Pressure gauge 0-1 MPa, Monel |
|
| 2 |
5.115-307.0 |
Washer |
|
| 3 |
6.640-006.0 |
Sensor conductivity |
|
| 3 |
6.640-092.0 |
High pressure hose pressure gauge pump 2 |
|
| 3 |
6.640-101.0 |
High pressure hose pressure gauge concen |
|
| 3 |
6.635-472.0 |
Pressure safeguard 0,05 - 0,8 MPa |
|
| 3 |
6.362-563.0 |
O-Ring seal 40,0 X 2,0-NBR 88 |
|
| 4 |
6.640-078.0 |
Pressure gauge 0 - 2,5 MPa, 1.4571 |
|
| 4 |
4.640-196.0 |
Armature filter outlet WPC 600 SW |
|
| 4 |
5.112-727.0 |
Втулка |
|
| 5 |
6.640-115.0 |
Kit O-Ring seal Feed |
|
| 5 |
5.640-068.0 |
Coupler lacquered Victaulic 42,4 |
|
| 5 |
6.390-320.0 |
Hose DN 16 |
|
| 5 |
6.365-069.0 |
Compact seal 24X36X7 |
|
| 6 |
6.640-117.0 |
Kit spare parts Feed |
|
| 6 |
6.612-804.0 |
Hose clip |
|
| 6 |
6.343-144.0 |
Snap ring 24 |
|
| 7 |
6.363-200.0 |
Уплотнительное кольцо 92x5-NBR-70 |
|
| 7 |
6.610-278.0 |
Hose polyamide Da 22mm - Di 18mm |
|
| 7 |
6.640-014.0 |
Filter cartridge 5µm |
|
| 7 |
5.115-314.0 |
Washer |
|
| 8 |
6.389-774.0 |
Hose 3/4 Zoll |
|
| 8 |
6.640-116.0 |
Kit spare parts Permeat |
|
| 8 |
7.304-063.0 |
Hexagonal head screw M12x90-A2-70 ISO 4 |
|
| 8 |
4.640-195.0 |
Armature filter input WPC 600 |
|
| 8 |
5.363-202.0 |
Joint ring |
|
| 9 |
6.612-802.0 |
Clamp wire 1.4301 |
|
| 9 |
6.414-863.0 |
"""Diaphragm nanofiltration 4"""" """ |
|
| 9 |
6.414-861.0 |
"""Diaphragm brackish water 4"""" """ |
|
| 9 |
7.312-047.0 |
Serrated lock washer A13-1.4310 DIN 679 |
|
| 9 |
6.367-032.0 |
Rotary shaft seal 24X 35-NBR |
|
| 10 |
6.640-068.0 |
Kit spare parts Feed |
|
| 10 |
6.640-006.0 |
Sensor conductivity |
|
| 10 |
7.312-054.0 |
Washer 12-A2 ISO 7090 |
|
| 10 |
7.304-461.0 |
Hexagonal head screw M 8x50-8.8-A2E IS |
|
| 11 |
6.640-066.0 |
Kit O-Ring seal Feed |
|
| 11 |
7.311-030.0 |
Hexagon nut M12-A2-70 ISO 7040 |
|
| 11 |
5.060-408.0 |
PISTON GUIDE |
|
| 12 |
6.640-067.0 |
Kit spare parts Permeat |
|
| 12 |
6.640-077.0 |
High pressure hose 1.4571, RO1-RO2 |
|
| 12 |
5.640-053.0 |
Sleeve |
|
| 12 |
6.362-565.0 |
O-Ring seal 135,0 X 2,5-NBR 90 |
|
| 13 |
6.640-065.0 |
Kit O-Ring seal Permeat |
|
| 13 |
4.640-081.0 |
Nozzle completely WPC 600 FW |
|
| 13 |
5.332-187.0 |
Helical spring |
|
| 14 |
6.640-086.0 |
"""Angle connector 22-1/2"""" """ |
|
| 14 |
6.640-013.0 |
Diaphragm sea water |
|
| 14 |
5.115-315.0 |
Washer |
|
| 15 |
4.640-054.0 |
Piston stainless steel complete |
|
| 16 |
5.640-027.0 |
Муфта лакированный Victaulic 3/4 |
|
| 17 |
6.640-097.0 |
"""Connection Victaulic 3/4""""-26,9 """ |
|
| 90 |
6.640-118.0 |
Kit seal slip-ring CRN3-27,CRI3-19 |
|
| 100 |
6.640-119.0 |
Kit O-Ring seal pump CRN3-27, CRI3-19 |
|
