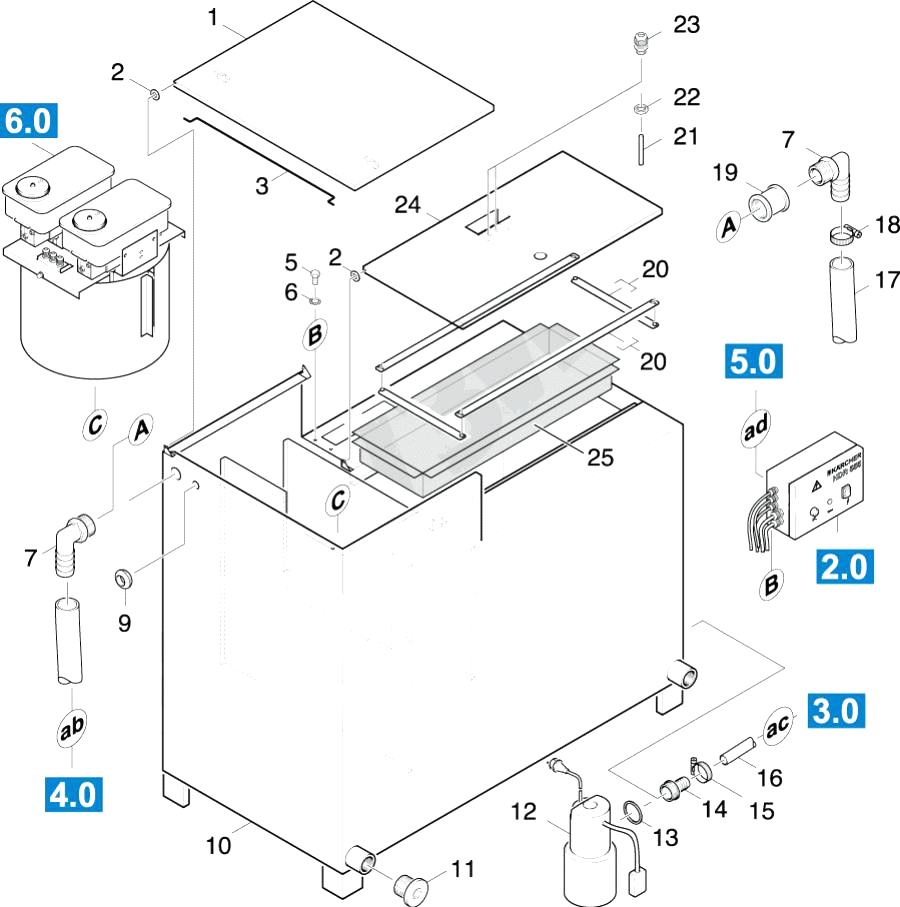

| REF. | АРТИКУЛ | ОПИСАНИЕ | ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
|---|---|---|---|
| 1 | 4.063-199.0 | Cover complete | |
| 2 | 7.343-203.0 | Lock washer 4-A2 DIN 6799 | |
| 3 | 5.037-086.0 | Hook | |
| 4 | 6.387-989.0 | """Sleeve M2-1 1/4""""X1""""-CuZn """ | |
| 5 | 7.304-545.0 | Hexagonal head screw M 6x6-8.8-A2E ISO | |
| 6 | 7.312-232.0 | Serrated lock washer A6,4-FSt-A3E DIN 6 | |
| 7 | 6.389-694.0 | """Hose stem 1""""-25 """ | |
| 9 | 6.641-640.0 | Wire protecting sleeve D21 | |
| 10 | 4.070-173.0 | Tank | |
| 11 | 7.382-275.0 | """Screw plug R 1 1/2""""-CuZn DIN 909 """ | |
| 12 | 6.473-454.0 | Immersion pump without float regulator 2 | |
| 13 | 6.362-139.0 | Joint ring 33x40x1,5 | |
| 14 | 6.388-696.0 | """Hose stem 1"""" """ | |
| 15 | 6.388-548.0 | Hose clip | |
| 16 | 6.388-157.0 | Hose DN19 | |
| 17 | 6.388-283.0 | Hose DN25 | |
| 18 | 6.388-549.0 | Hose clip | |
| 19 | 6.385-245.0 | """Sleeve M2-1""""-RG5 """ | |
| 20 | 4.050-280.0 | Frame | |
| 21 | 5.027-137.0 | Rod | |
| 22 | 6.641-483.0 | Locknut PG7 | |
| 23 | 6.641-278.0 | Cable gland PG7 | |
| 24 | 5.063-536.0 | Cover | |
| 25 | 6.273-126.0 | Filtercloth 5 ST |
