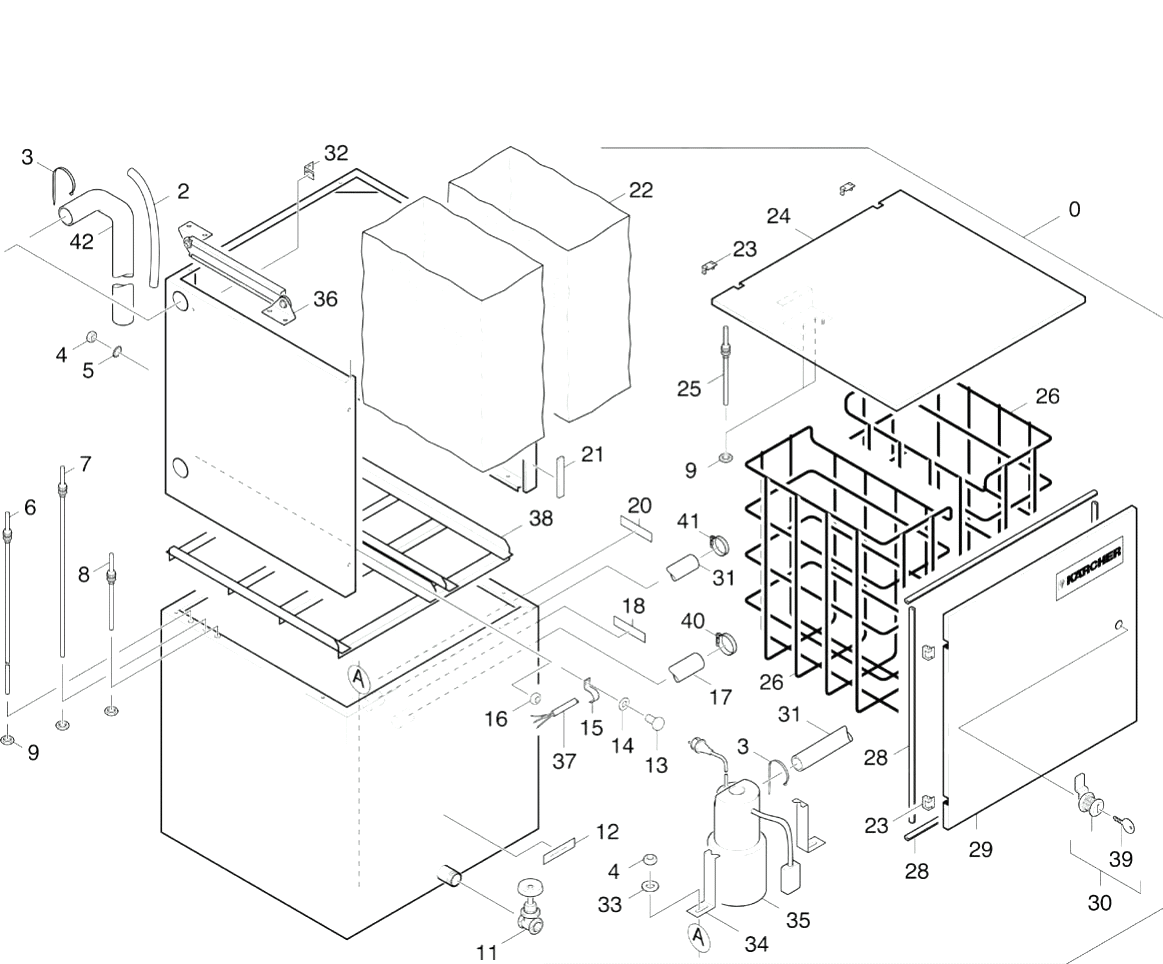

Karcher (Керхер) Блок фильтров (0.198-205.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

REF.	АРТИКУЛ	ОПИСАНИЕ
0	2.638-113.0	Блок фильтров
0	4.063-637.0	Крышка электроприборный шкаф VA
0	4.063-604.0	Cover electric control box
0	4.786-009.0	Дозатор
0	2.638-111.0	Успокаивающий элемент
0	2.638-112.0	Единица смеситель
1	4.744-084.0	Probe complete 115
1	6.651-261.0	Lamp socket element
1	5.027-122.0	Rod
2	6.388-151.0	Hose DN 6
2	6.651-482.0	Fixed adapter
2	4.038-305.0	Sheet metal component
2	6.372-065.0	Hinge complete
2	6.685-241.0	2/2-way solenoid valve
2	6.685-991.0	Solenoid valve
3	6.641-458.0	Cable tape
3	5.108-143.0	Turned part
3	4.070-151.0	Tank settling tank ASA 600 VA
3	6.388-548.0	Hose clip
4	7.311-067.0	Hexagon nut M 6-A2-70 ISO 4032
4	7.311-066.0	Hexagon nut M10-A2-70 ISO 4032
4	6.651-075.0	Lamp bulb
4	5.027-123.0	Rod
4	6.389-644.0	Hose
5	7.312-165.0	Toothed lock washer A6,4-FST-PH DIN 679
5	6.339-124.0	Rubber buffer
5	6.651-558.0	Label rack RMQ-Titan
5	6.376-338.0	Label SCHMUTZWASSERZULAUF
5	6.376-350.0	Label
5	7.306-193.0	Screw M6x16 -A2-70 (In6Rd)
6	4.744-086.0	Probe complete 575
6	4.050-284.0	Основная рамка ASA 600
6	4.060-121.0	Housing with stator
6	7.312-165.0	Toothed lock washer A6,4-FST-PH DIN 679
7	4.744-085.0	Probe complete 290
7	6.641-483.0	Locknut PG7
7	7.311-067.0	Hexagon nut M 6-A2-70 ISO 4032
8	6.641-278.0	Cable gland PG7
9	6.641-483.0	Locknut PG7
9	6.376-372.0	Label ASA 600
9	6.368-134.0	Drain plug
9	6.376-349.0	Label
9	6.376-341.0	Label NOTUEBERLAUF 1
10	6.376-373.0	Label
10	6.376-370.0	Label
10	6.681-035.0	Hour counter 24V
10	6.681-070.0	Hour counter -24V 60HZ
10	6.641-366.0	Locknut PG 9
10	6.412-180.0	"""Valve sleeve Rp 1"""" """
11	6.376-344.0	Label ABLAUFHAHN 1
11	6.376-352.0	Label
11	6.412-180.0	"""Valve sleeve Rp 1"""" """
11	6.376-371.0	Label malfunction
11	6.376-374.0	Label
11	6.631-728.0	Switch
11	6.641-355.0	Cable gland PG9
12	6.641-483.0	Locknut PG7
12	6.376-353.0	Label
12	6.376-345.0	Label
12	6.376-341.0	Label NOTUEBERLAUF 1
12	6.376-349.0	Label
12	5.388-512.0	Label
12	6.368-021.0	Protecting cap 19,6
13	4.744-081.0	Probe complete 100
13	7.304-553.0	Hexagonal head screw M 4x25-A4-70 ISO 4
13	6.376-350.0	Label
13	6.376-338.0	Label SCHMUTZWASSERZULAUF
13	4.063-640.0	Cover electric control box VA
13	4.063-605.0	Cover
13	6.641-367.0	Locknut PG11
14	6.635-113.0	Float regulator
14	7.312-001.0	Washer 4 -200HV-A3E ISO 7089
14	6.376-352.0	Label
14	6.376-344.0	Label ABLAUFHAHN 1
14	6.273-133.0	Sealing tape cellularrubber
14	6.641-357.0	Cable gland PG11
15	6.685-210.0	Solenoid valve
15	6.373-007.0	Pipe clamp
15	6.375-246.0	Sash fastener
15	6.368-064.0	Drain plug
16	4.070-094.0	Tank
16	7.311-001.0	Hexagon nut M4 -8-A2E ISO 4032
16	6.389-751.0	Hose DN50 -PVC
16	6.376-375.0	Label
16	6.376-376.0	Label
17	5.063-226.0	Cover
17	6.389-750.0	Hose DN35 -PVC
17	6.388-283.0	Hose DN25
17	6.376-449.0	Label set
17	7.311-001.0	Hexagon nut M4 -8-A2E ISO 4032
18	6.376-381.0	Label caustic
18	6.376-347.0	Label
18	6.376-343.0	Label NOTUEBERLAUF 3
18	6.388-548.0	Hose clip
18	7.312-001.0	Washer 4 -200HV-A3E ISO 7089
19	5.389-946.0	Label english RM 851
19	5.389-911.0	Label RM 851
19	6.388-563.0	Hose clip
19	6.621-023.0	Control transformer
20	7.304-431.0	Hexagonal head screw M12X 20-8.8-A3E IS
20	6.641-458.0	Cable tape
20	6.376-351.0	Label
20	6.376-339.0	Label WASSERABLAUF
20	6.646-110.0	Plug 15A125V*USA
20	6.641-958.0	Cable with plug
20	4.744-081.0	Probe complete 100
21	6.388-283.0	Hose DN25
21	5.019-179.0	Angle
21	6.273-043.0	Sealing tape cellularrubber 9x4
21	6.375-248.0	Key square 7 mm
22	4.880-050.0	Spare parts set Plaset-120V-Pumpe
22	4.880-049.0	Spare parts set Plaset-230V-Pumpe
22	6.412-545.0	FLOATING ARM
22	6.286-261.0	Filter
22	6.376-353.0	Label
22	6.376-345.0	Label
22	4.744-083.0	Probe complete 245
23	6.473-415.0	Pump outflow
23	6.473-456.0	Pump outflow - 230V, 34l/min
23	6.372-065.0	Hinge complete
23	6.376-346.0	Label
23	6.376-354.0	Label
23	6.641-793.0	Spiral hose
24	5.058-612.0	Holder pump Plaset
24	6.376-348.0	Label
24	6.376-342.0	Label NOTUEBERLAUF 2
24	6.641-475.0	Mounting base cable
25	6.388-151.0	Hose DN 6
25	4.744-087.0	Probe complete 55
25	4.063-604.0	Cover electric control box
26	6.388-283.0	Hose DN25
26	4.730-043.0	Filtering basket
26	6.641-474.0	Cable tape 8-210
26	6.372-066.0	Hinge washer
27	4.633-022.0	Stirring device
27	6.473-454.0	Immersion pump without float regulator 2
27	6.473-453.0	Immersion pump without float regulator 1
27	6.372-065.0	Hinge complete
28	6.373-596.0	Telescopic stay
28	6.273-069.0	Seal string cellular rubber
28	6.376-339.0	Label WASSERABLAUF
28	6.376-351.0	Label
29	5.470-031.0	Coupler
29	5.068-049.0	Door
29	6.389-750.0	Hose DN35 -PVC
30	7.307-511.0	Threaded pin M8x12 -A2-21H ISO 4027
30	6.375-246.0	Sash fastener
30	6.376-343.0	Label NOTUEBERLAUF 3
30	6.376-347.0	Label
31	6.403-007.0	Plain bearing
31	6.388-283.0	Hose DN25
32	7.314-654.0	Straight grooved pin 3x20 -A1 ISO8740
32	5.019-179.0	Angle
33	5.115-573.0	Gasket disc
33	7.312-026.0	Washer 6 -A2 ISO 7090
33	7.312-234.0	Serrated lock washer A3,2 -FSt-A3E DIN6
34	6.368-018.0	Edge protection
34	5.046-592.0	Fixing pump V1 H=95mm
34	5.640-559.0	Fixing pump V3 H=125mm (Zehnder)
34	5.050-187.0	Fixing pump V2 H=140mm
34	7.306-055.0	Screw M3x20 -8.8-R2R (In6Rd)
35	2.884-061.0	Spare part set
35	2.642-919.0	Immersion pump inclusive holder -Ersatz-
35	6.473-451.0	Immersion pump with float regulator 115V
35	6.644-120.0	Fuse medium time-lag 0,063A
36	4.786-009.0	Дозатор
36	6.373-596.0	Telescopic stay
36	6.644-146.0	Fuse medium time-lag 6,3A
37	6.372-065.0	Hinge complete
37	4.820-696.0	Комплект кабеля
37	4.820-745.0	Комплект кабеля *
38	4.050-248.0	Frame
39	5.389-911.0	Label RM 851
39	5.389-946.0	Label english RM 851
39	6.375-248.0	Key square 7 mm
40	5.401-286.0	Reducing bushing 45-34,1mm
40	6.388-563.0	Hose clip
41	4.070-123.0	CONTAINER RECEPTACLE
41	6.388-548.0	Hose clip
42	5.063-357.0	Cover
42	6.389-696.0	Hose DN20 -PVC
43	7.311-000.0	Hexagon nut M3 -8-A2E ISO 4032
44	7.312-043.0	Washer 3-A2 ISO 7089
45	6.685-210.0	Solenoid valve
45	6.347-077.0	Spacer sleeve
46	2.882-405.0	Conversion kit ASA 600
47	4.070-153.0	Mixing receptacle HDR777 + ASA600
47	6.373-599.0	Cable clamp
48	4.820-696.0	Комплект кабеля
48	4.820-745.0	Комплект кабеля *
48	6.631-727.0	Light barrier
49	6.375-248.0	Key square 7 mm
50	6.373-596.0	Telescopic stay
50	6.644-242.0	Fuse insert medium time-lag G-0,8A
51	6.646-051.0	Plug socket construction 250V 16A Schuk
52	7.307-355.0	Threaded pin M 8X 16-A2-21H ISO 4029
52	4.042-672.0	Holder light barrier
