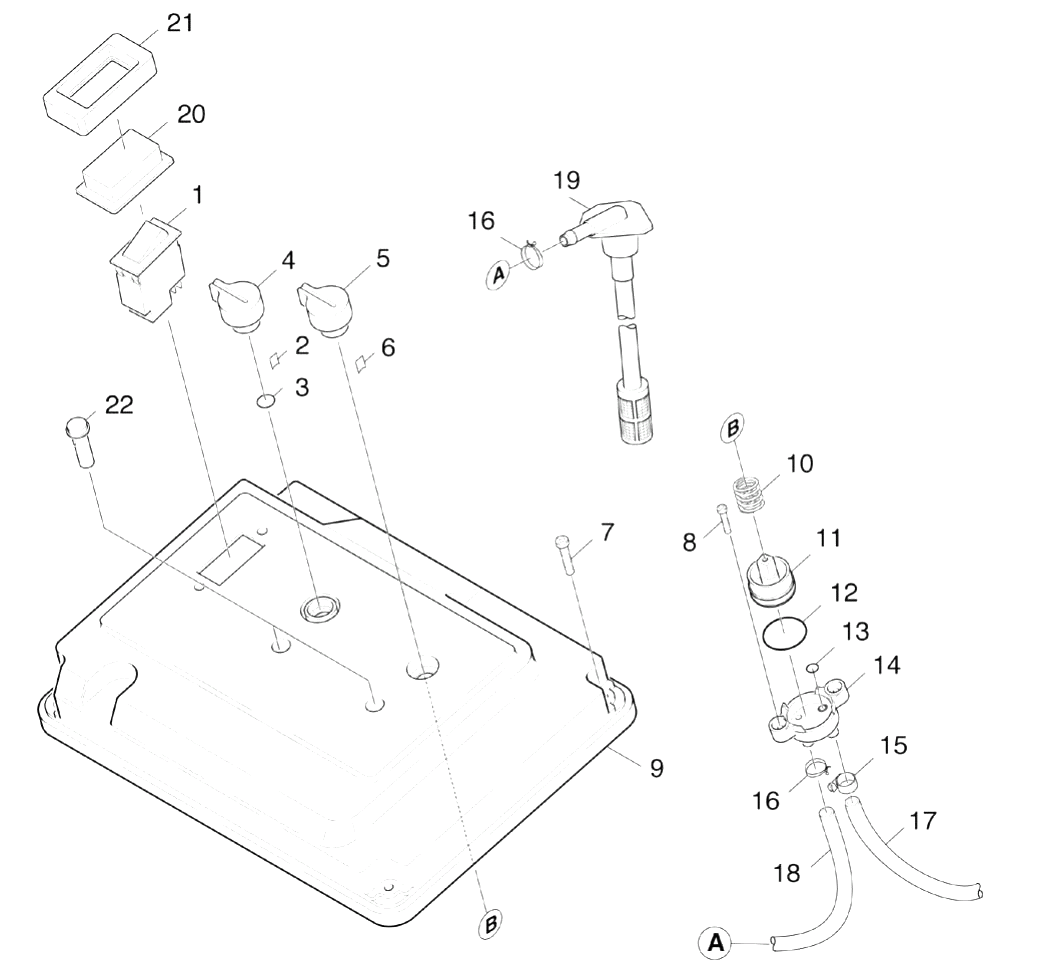

| REF. | АРТИКУЛ | ОПИСАНИЕ | ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
|---|---|---|---|
| 0 | 4.749-139.0 | Safety system | |
| 1 | 6.630-118.0 | Rocker switch | |
| 1 | 5.060-478.0 | Housing | |
| 2 | 6.313-014.0 | Spring element | |
| 2 | 6.363-037.0 | O-Ring seal complete 1ST.-R. | |
| 3 | 6.362-078.0 | O-Ring seal 13,3x2,4 | |
| 3 | 4.553-025.0 | Piston | |
| 4 | 5.321-477.0 | Handhold neutrally | |
| 4 | 5.115-147.0 | Washer | |
| 5 | 5.321-450.0 | HANDLE SWITCHES | |
| 6 | 5.337-021.0 | Plate spring | |
| 7 | 7.303-107.0 | Screw 5x16 -10.9-P2R (K-In6Rd) | |
| 7 | 5.107-192.0 | Bar | |
| 8 | 7.303-033.0 | Screw M4x16-ST-A2R (KOMBI-IN6RD | |
| 8 | 5.332-070.0 | Helical spring | |
| 9 | 5.841-362.0 | Control panel | |
| 9 | 5.332-069.0 | Helical spring | |
| 10 | 5.332-028.0 | Helical spring | |
| 10 | 5.112-424.0 | Bush | |
| 11 | 5.581-178.0 | Valve seat | |
| 11 | 6.362-169.0 | O-Ring seal 12,0 X 2,0 | |
| 12 | 6.362-712.0 | O-Ring seal 25,3 X 2,4 | |
| 12 | 5.553-265.0 | Piston | |
| 13 | 6.362-386.0 | O-Ring seal 5,0 x 1,5-NBR 80 | |
| 13 | 5.332-293.0 | Helical spring | |
| 14 | 5.587-054.0 | Valve housing | |
| 14 | 5.316-278.0 | Bolt spring | |
| 15 | 6.388-515.0 | Hose clip | |
| 15 | 5.060-414.0 | Housing | |
| 16 | 6.388-559.0 | Hose clip | |
| 16 | 5.037-080.0 | Hook | |
| 17 | 6.388-194.0 | Hose DN 7 | |
| 18 | 6.388-225.0 | Hose DN 7 | |
| 19 | 6.414-028.0 | Filter | |
| 20 | 6.631-469.0 | Protective cover (Y30600101) | |
| 21 | 5.050-061.0 | Frame | |
| 22 | 6.651-316.0 | Lens housing red |
