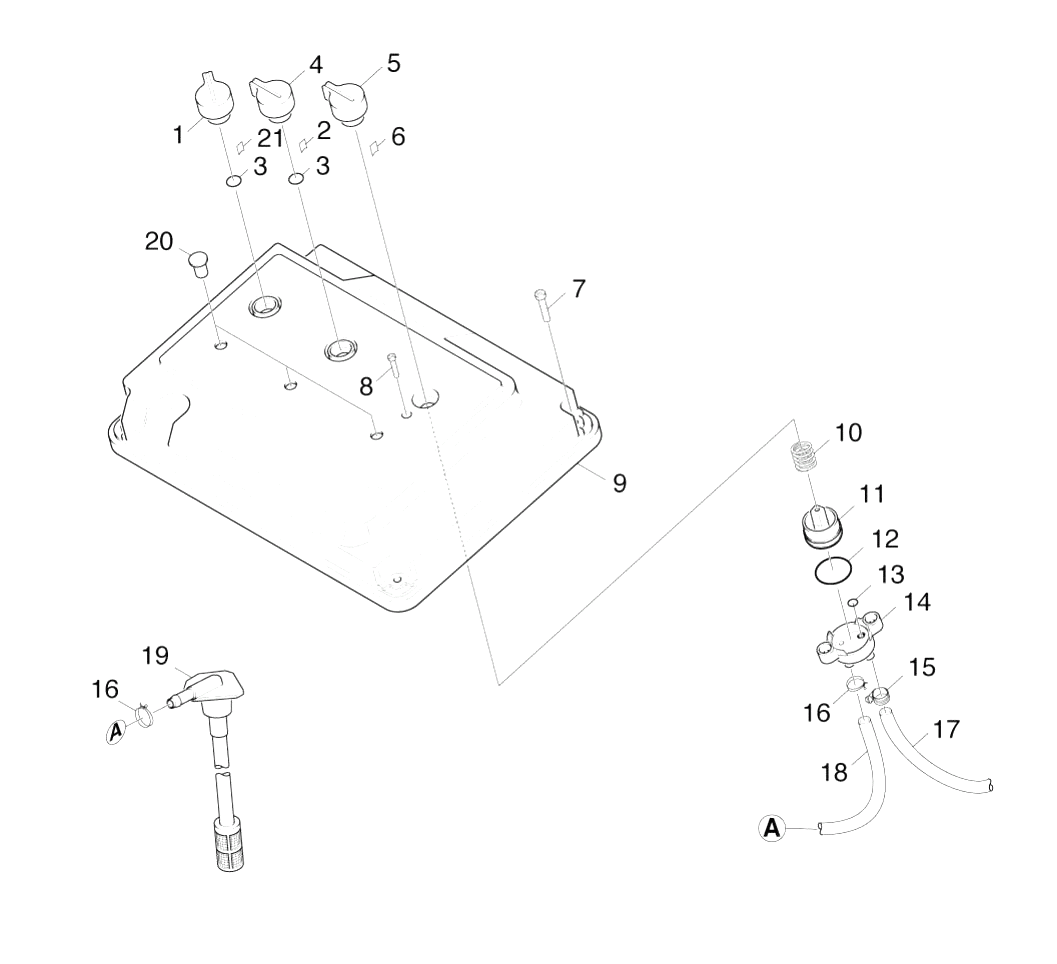

| REF. | АРТИКУЛ | ОПИСАНИЕ | ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
|---|---|---|---|
| 0 | 4.623-238.0 | Motor complete | |
| 0 | 4.623-270.0 | Motor complete | |
| 1 | 5.321-595.0 | Handhold neutrally | |
| 1 | 5.063-565.0 | Cover fuel | |
| 1 | 7.303-038.0 | Screw M5x12 -St-P2R (In6Rd) | |
| 2 | 6.313-014.0 | Spring element | |
| 2 | 5.363-290.0 | Joint ring | |
| 2 | 7.312-002.0 | Washer 5-200HV-A3E ISO 7090 | |
| 3 | 6.362-078.0 | O-Ring seal 13,3x2,4 | |
| 3 | 5.731-039.0 | Filter | |
| 3 | 7.313-002.0 | Spring washer B 5-FSt-A3E DIN 127 | |
| 4 | 5.321-477.0 | Handhold neutrally | |
| 4 | 5.071-183.0 | Tank fuel lacquered | |
| 4 | 7.311-004.0 | Hexagon nut M8 -8-A3E ISO 4032 | |
| 5 | 6.472-113.0 | Filter cartridge | |
| 5 | 5.321-450.0 | HANDLE SWITCHES | |
| 5 | 5.042-463.0 | Holder | |
| 5 | 7.312-166.0 | Toothed lock washer A8,4-FSt-A3E DIN 67 | |
| 6 | 6.472-123.0 | Filter housing complete | |
| 6 | 5.337-021.0 | Plate spring | |
| 6 | 6.303-105.0 | Screw M6x20-ST-A2R DIN 7500-1 | |
| 6 | 6.339-095.0 | Rubber buffer | |
| 7 | 6.472-122.0 | Protecting cap | |
| 7 | 6.303-155.0 | Screw 5x16 | |
| 7 | 7.312-291.0 | Washer 6-200HV-A2R ISO7093-1 | |
| 7 | 5.051-040.0 | Base plate | |
| 8 | 6.472-109.0 | Housing spring | |
| 8 | 7.303-033.0 | Screw M4x16-ST-A2R (KOMBI-IN6RD | |
| 8 | 7.303-067.0 | Screw M8x16-ST-A3R (IN6RD) | |
| 9 | 5.841-363.0 | Control panel | |
| 9 | 5.063-360.0 | Cover | |
| 10 | 6.472-108.0 | Pin | |
| 10 | 5.332-028.0 | Helical spring | |
| 10 | 6.362-635.0 | O-Ring seal 50,0x4,0-NBR 70 | |
| 11 | 5.581-178.0 | Valve seat | |
| 11 | 5.365-147.0 | Profile gasket | |
| 12 | 6.472-128.0 | Diaphragm | |
| 12 | 6.362-712.0 | O-Ring seal 25,3 X 2,4 | |
| 12 | 5.071-038.0 | Tank chemistry | |
| 13 | 6.362-386.0 | O-Ring seal 5,0 x 1,5-NBR 80 | |
| 13 | 6.414-028.0 | Filter | |
| 14 | 6.472-340.0 | Knurled nut | |
| 14 | 5.587-054.0 | Valve housing | |
| 14 | 6.388-559.0 | Hose clip | |
| 15 | 6.388-515.0 | Hose clip | |
| 15 | 6.388-225.0 | Hose DN 7 | |
| 16 | 6.388-559.0 | Hose clip | |
| 17 | 6.472-125.0 | O-Ring seal 12,0 X 1,5 | |
| 17 | 6.388-194.0 | Hose DN 7 | |
| 18 | 6.472-411.0 | Solenoid valve | |
| 18 | 6.388-225.0 | Hose DN 7 | |
| 19 | 6.472-120.0 | O-Ring seal 28,5 X 1,6 | |
| 19 | 6.414-028.0 | Filter | |
| 20 | 6.651-316.0 | Lens housing red | |
| 21 | 6.313-003.0 | Locking spring | |
| 22 | 6.472-105.0 | Seal axle |
