Karcher (Керхер) Горячая вода (0.198-284.0)

Karcher (Керхер) Горячая вода (0.198-284.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

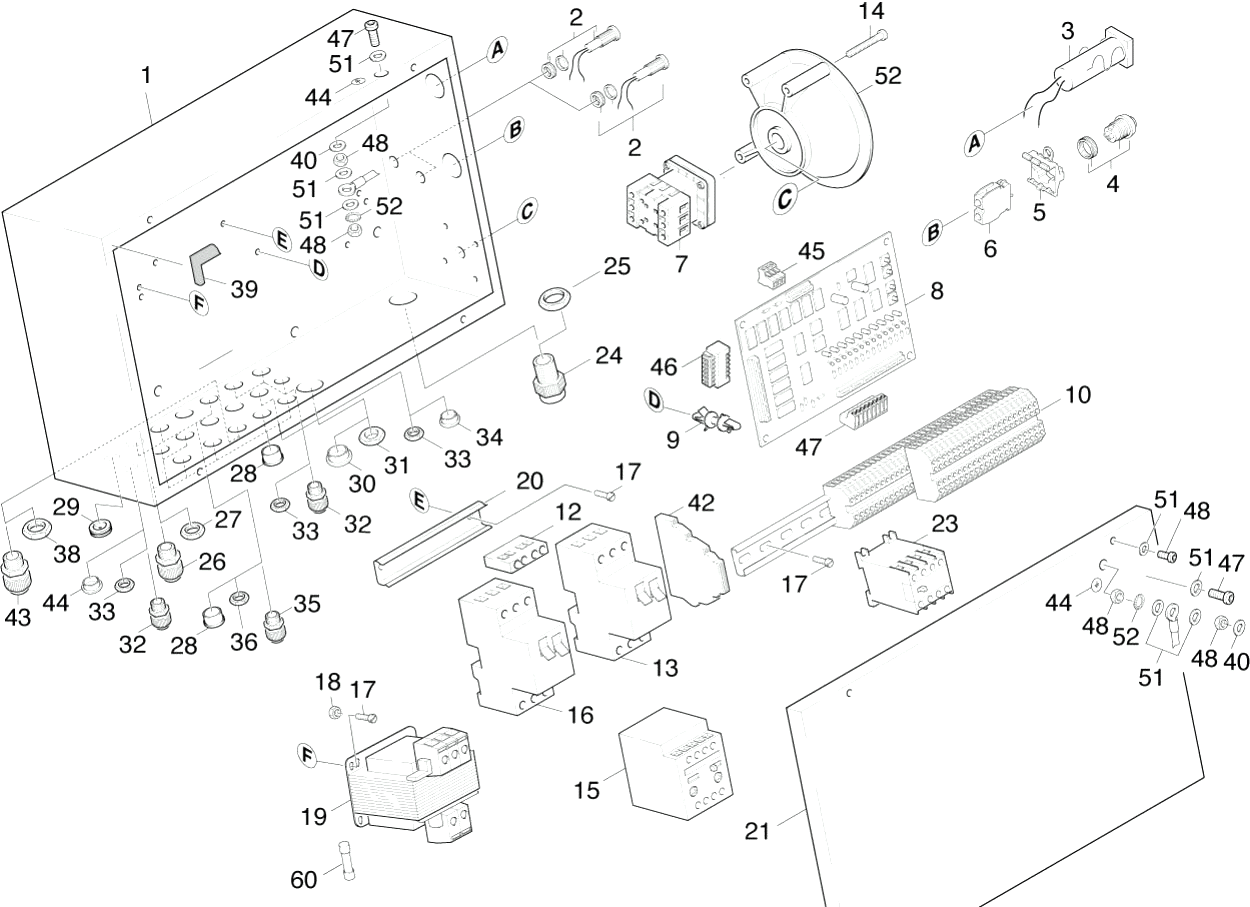

REF. АРТИКУЛ ОПИСАНИЕ ЗАПРОС НАЛИЧИЯ / ЦЕНЫ
1 5.060-770.0 Housing electric control box
2 6.651-184.0 Pilot lamp red
3 6.681-031.0 Hour counter 60HZ
3 6.681-012.0 Hour counter
4 6.634-115.0 Push button green
5 6.651-482.0 Fixed adapter
7 6.631-754.0 Switch
8 6.682-463.0 Control circuit board high-pressure
9 6.646-273.0 Distance holder
10 6.643-698.0 Strip terminal
12 6.633-282.0 Relay base
12 6.631-835.0 Auxiliary switch -1S UND 1O
13 6.633-276.0 Relay 24V AC
13 6.631-824.0 Motor protecting switch
14 7.303-035.0 Screw M4x30 -St-R2R (In6Rd)
15 6.632-126.0 Контактор 24V 50/60HZ
15 6.632-301.0 Main contactor
16 6.631-830.0 Motor protecting switch 9,0-14,0A
16 6.631-829.0 Motor protecting switch
17 7.303-037.0 Screw M5x10 -St-P2R (In6Rd)
17 7.306-057.0 Screw M4x10 -8.8-R2R (In6Rd)
18 7.311-001.0 Hexagon nut M4 -8-A2E ISO 4032
19 6.622-213.0 Control transformer 100 VA
19 6.622-021.0 Control transformer 40VA
20 7.233-311.0 Mounting rail TH 35-15 -ST EN 60715
21 5.063-866.0 Cover
22 6.641-278.0 Cable gland PG7
23 6.632-243.0 Main contactor 24V AC
24 6.641-356.0 Cable gland PG16
25 6.641-370.0 Locknut PG16-PA DIN 46320
26 6.641-613.0 Cable gland PG13,5
27 6.641-369.0 Locknut PG13,5
28 6.368-064.0 Drain plug
29 5.365-109.0 Profile gasket
30 6.641-317.0 Drain plug PG16
32 6.641-278.0 Cable gland PG7
33 6.641-756.0 Locknut PG 7
35 6.641-355.0 Cable gland PG9
36 6.641-366.0 Locknut PG 9
37 6.641-323.0 Drain plug PG11
38 6.641-367.0 Locknut PG11
39 6.273-042.0 Sealing tape 19x4
40 6.600-117.0 Contact disk 6mm
42 6.643-145.0 Label earthing
42 6.633-421.0 Relay 1W 24VAC/DC
43 6.641-357.0 Cable gland PG11
44 6.643-145.0 Label earthing
45 6.643-648.0 Strip terminal printed circuit board tri
46 6.643-690.0 Strip terminal six-pole
47 7.306-094.0 Screw M6x25 -8.8-R3R (In6Rd)
47 6.646-246.0 Strip terminal eight-pole
48 7.311-003.0 Hexagon nut M6 -8-A2E ISO 4032
48 7.306-071.0 Screw M5x10 -8.8-R2R (In6Rd)
49 7.306-094.0 Screw M6x25 -8.8-R3R (In6Rd)
50 7.311-003.0 Hexagon nut M6 -8-A2E ISO 4032
51 7.312-003.0 Washer 6 -200HV-A3E ISO 7090
51 7.312-002.0 Washer 5-200HV-A3E ISO 7090
52 7.312-232.0 Serrated lock washer A6,4-FSt-A3E DIN 6
52 5.031-635.0 Moulded part
53 7.312-003.0 Washer 6 -200HV-A3E ISO 7090
54 7.312-232.0 Serrated lock washer A6,4-FSt-A3E DIN 6
60 6.644-117.0 Fuse insert slow G-4,0A
60 6.644-052.0 Fuse insert slow G-2,0A
