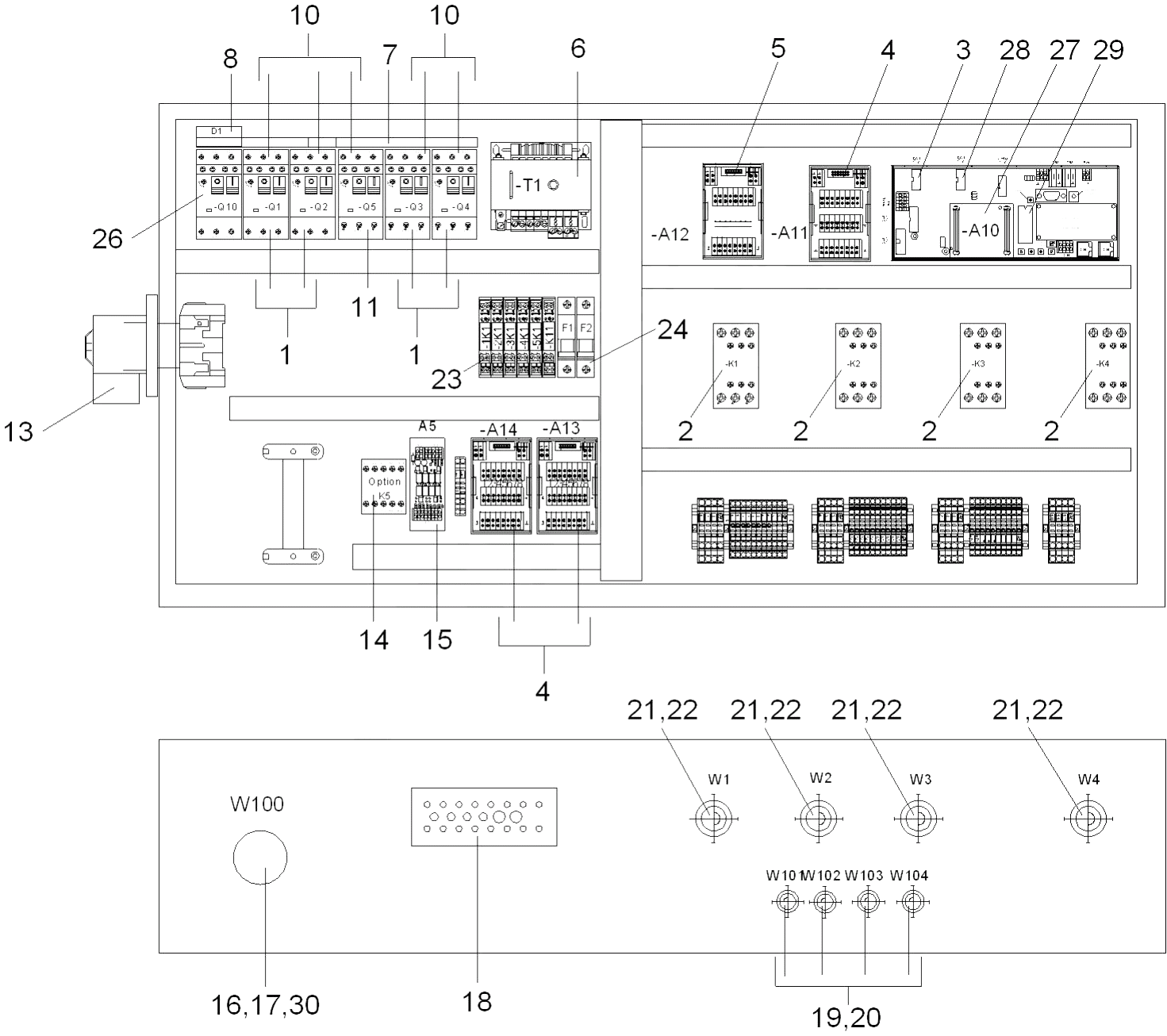

Karcher (Керхер) Электроприборный шкаф (0.209-208.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

REF.	АРТИКУЛ	ОПИСАНИЕ
1	6.631-831.0	Motor protecting switch 13,0-18,0A
2	6.632-334.0	Power contactor LC1 D32 B7
3	4.320-013.0	Electronics Programmiert HDC
4	6.682-938.0	Circuit board input HDC
5	6.682-937.0	Circuit board outlet HDC
6	6.622-253.0	Power supply 400/440V 24V AC/DC
7	6.633-422.0	Distributor 3-phase-current
8	6.633-586.0	Connection block BK 25/3 - PKZ 0
9	6.631-832.0	Выключатель защиты двигателя 17,0-23,0A
9	6.631-833.0	Motor protecting switch 20,0-25,0A
10	6.631-835.0	Auxiliary switch -1S UND 1O
11	6.631-827.0	Motor protecting switch 2,5-4,0A
13	6.635-542.0	Main switch
14	6.632-241.0	Main contactor 24V DC
15	6.682-877.0	Amplifier PT 100
16	6.648-404.0	Cable gland black M50x1,5
17	6.648-420.0	Locknut black M50x1,5
18	6.649-511.0	Cable gland plate
19	6.648-392.0	Cable gland grey M16x1,5
20	6.648-407.0	Locknut grey M16
21	6.648-344.0	Cable gland grey M20X1,5
22	6.303-257.0	Locknut grey M20
23	6.633-400.0	Module relay 2MM
24	6.644-321.0	Safety cutout - 4A/1POL
26	6.631-823.0	Motor protecting switch
27	6.682-766.0	CAN Core Modul Easy 237
28	6.682-936.0	CAN Master HDC
29	6.682-769.0	Timekeeper M48T35Y-70PC1
30	6.648-469.0	Reduction M50x1,5-M40x1,5
