Karcher (Керхер) Фильтровальная система (0.163-694.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

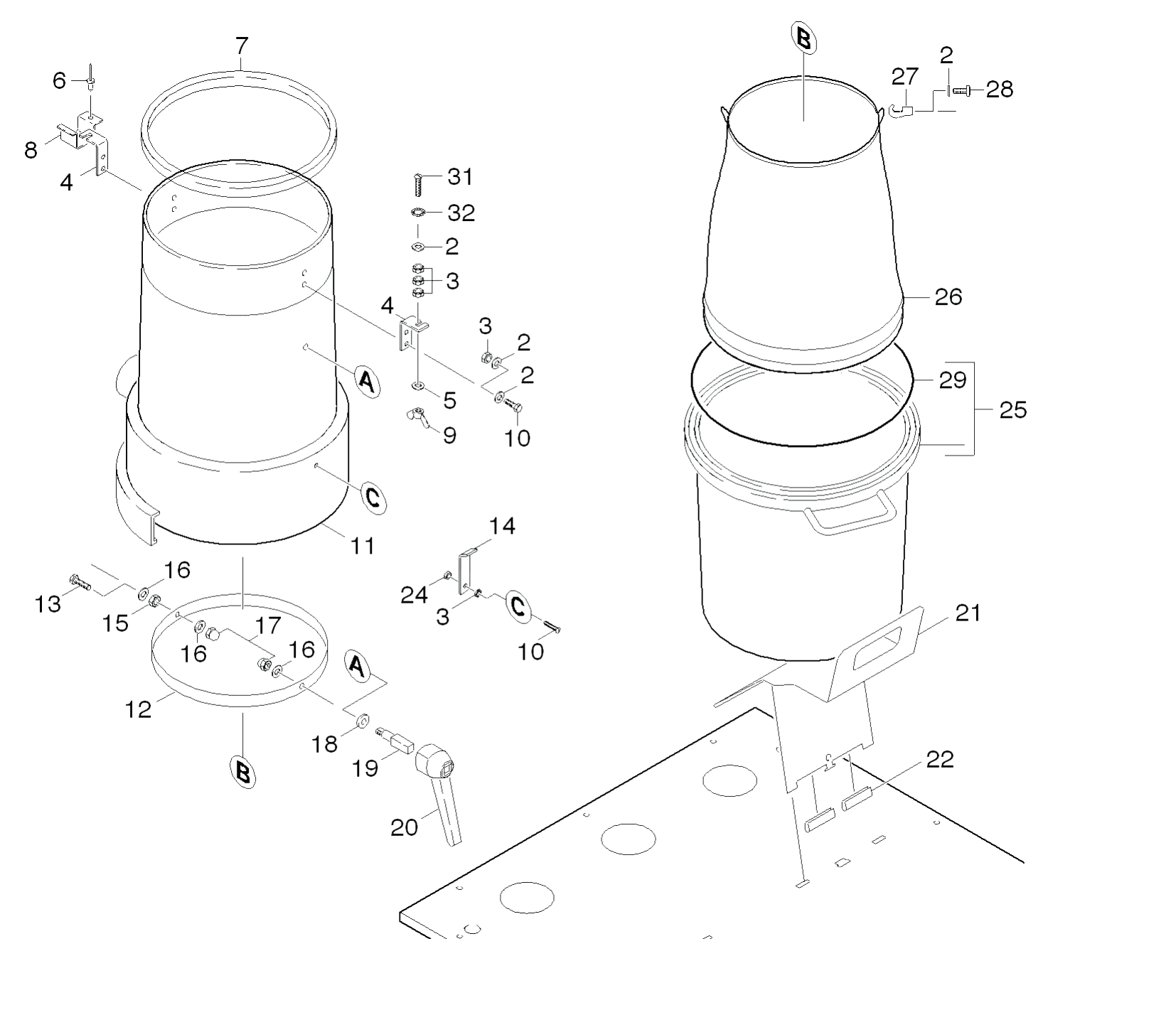

REF.	АРТИКУЛ	ОПИСАНИЕ
2	7.312-003.0	Washer 6 -200HV-A3E ISO 7090
3	7.311-003.0	Hexagon nut M6 -8-A2E ISO 4032
4	5.017-339.0	ANGLE BEHAELTER
5	7.312-276.0	Washer 6 -200HV-A2E ISO7093-1
6	6.315-058.0	Blind rivet 4
7	6.273-187.0	Cellular rubber Profilring
8	5.050-153.0	Sheet metal component holder
9	7.310-012.0	Wing nut M 6 -A DIN 315
10	7.306-092.0	Screw M6x20-ST- 8.8-R3R (IN6RD)
11	5.070-544.0	Tank self-service vacuum cleaner
12	5.114-471.0	Ring self-service vacuum cleaner
13	7.304-399.0	Hexagonal head screw M 8x25-8.8-A2E ISO
14	5.017-516.0	Angle self-service vacuum cleaner
15	7.311-004.0	Hexagon nut M8 -8-A3E ISO 4032
16	7.312-017.0	Washer 8-A2 ISO 7089
17	7.311-620.0	Cap nut M8 -A2 DIN 986
18	6.412-751.0	Joint ring
19	5.108-193.0	Pin self-service vacuum cleaner
20	6.321-150.0	Handhold self-service vacuum cleaner vib
21	5.263-074.0	Tensioning part knee lever
22	5.364-212.0	Edge protection
24	7.311-512.0	Hexagon nut M 6-8-A2E ISO 7040
25	4.070-351.0	Tank complete trash can
26	6.904-174.0	Dust filter
27	6.373-699.0	Hook self-service vacuum cleaner L=28, M
28	7.306-089.0	Screw M6x12 -8.8-R2R (In6Rd)
29	6.273-188.0	Cord cellular rubber D=10MM 968MM LANG
31	7.305-058.0	Countersunk screw M6x40-ST-8.8-R2R (IN6
32	7.312-167.0	Toothed lock washer A6,4-FSt-A3E DIN 67
