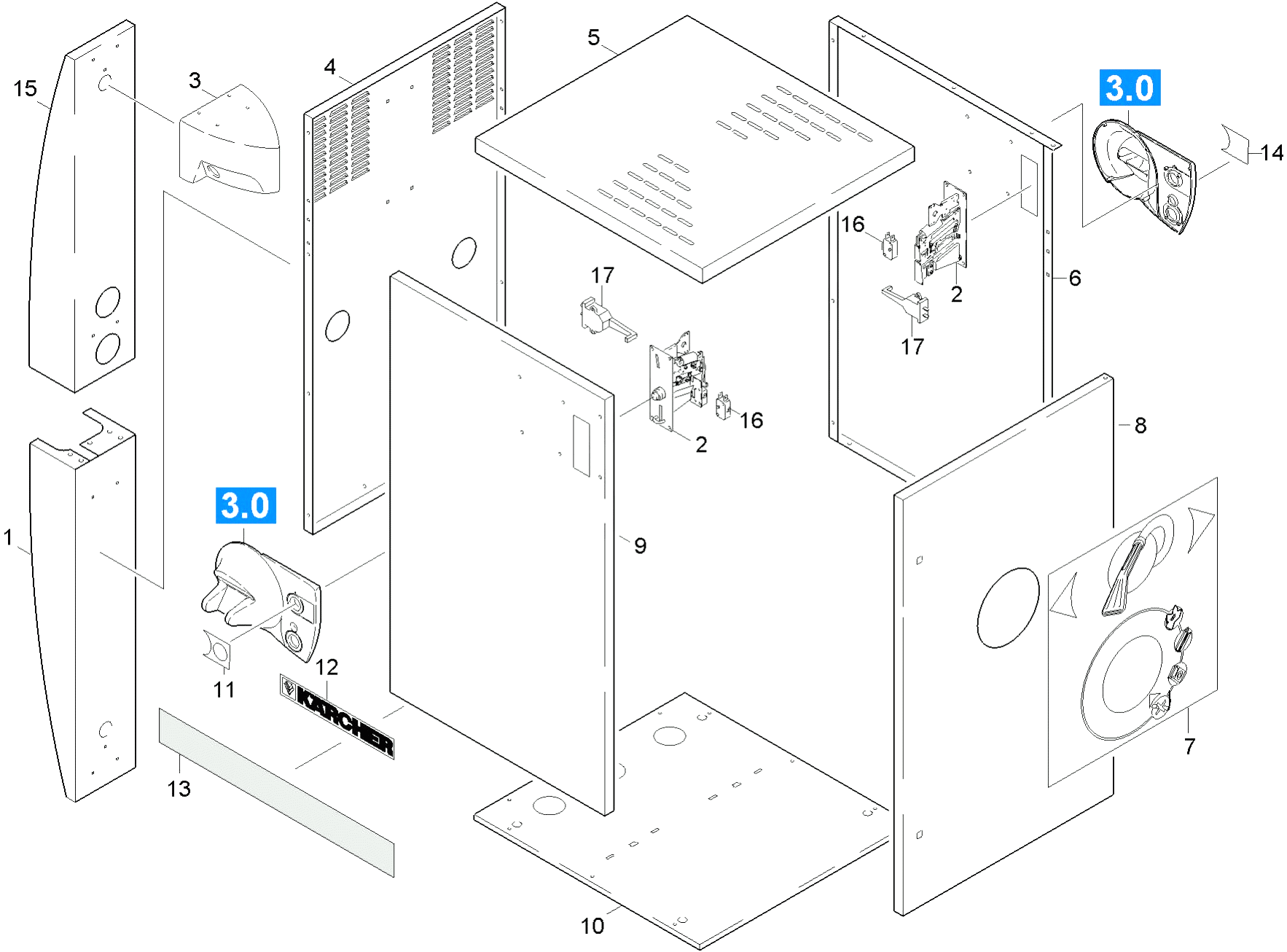

REF.	АРТИКУЛ	ОПИСАНИЕ
1	5.048-556.0	Sheet metal component black self-service
2	2.639-917.0	Conversion kit vacuum cleaner 0,5-Euro-
2	2.639-973.0	Conversion kit vacuum cleaner 1-Euro-MP
3	5.031-698.0	Moulded part self-service vacuum cleaner
3	7.305-053.0	Countersunk screw M6x16-A2-70 (IN6RD)
4	5.048-898.0	Sheet metal component white
4	5.049-061.0	Sheet metal component rear panel TOTAL
4	5.058-864.0	Sheet metal component tackle
5	4.038-804.0	Sheet metal component complete
5	4.038-841.0	Roof black DUO SB
5	6.303-224.0	Saucer-head screw M5x16-St-A2R DIN 603
6	5.048-896.0	Sheet metal component side panel white
6	5.049-060.0	Sheet metal component TOTAL
6	7.312-052.0	Washer 5 -A2 ISO 7089
7	5.383-433.0	Label arrow
7	7.311-431.0	Hexagon nut M 5-1.4305 ISO 10511
8	5.049-058.0	Sheet metal component door TOTAL
8	7.311-068.0	Hexagon nut M 8-A2-70 ISO 4032
8	5.048-899.0	Sheet metal component white door
9	7.312-067.0	Washer 4-A2 ISO 7089
9	5.049-059.0	Sheet metal component side panel left TO
