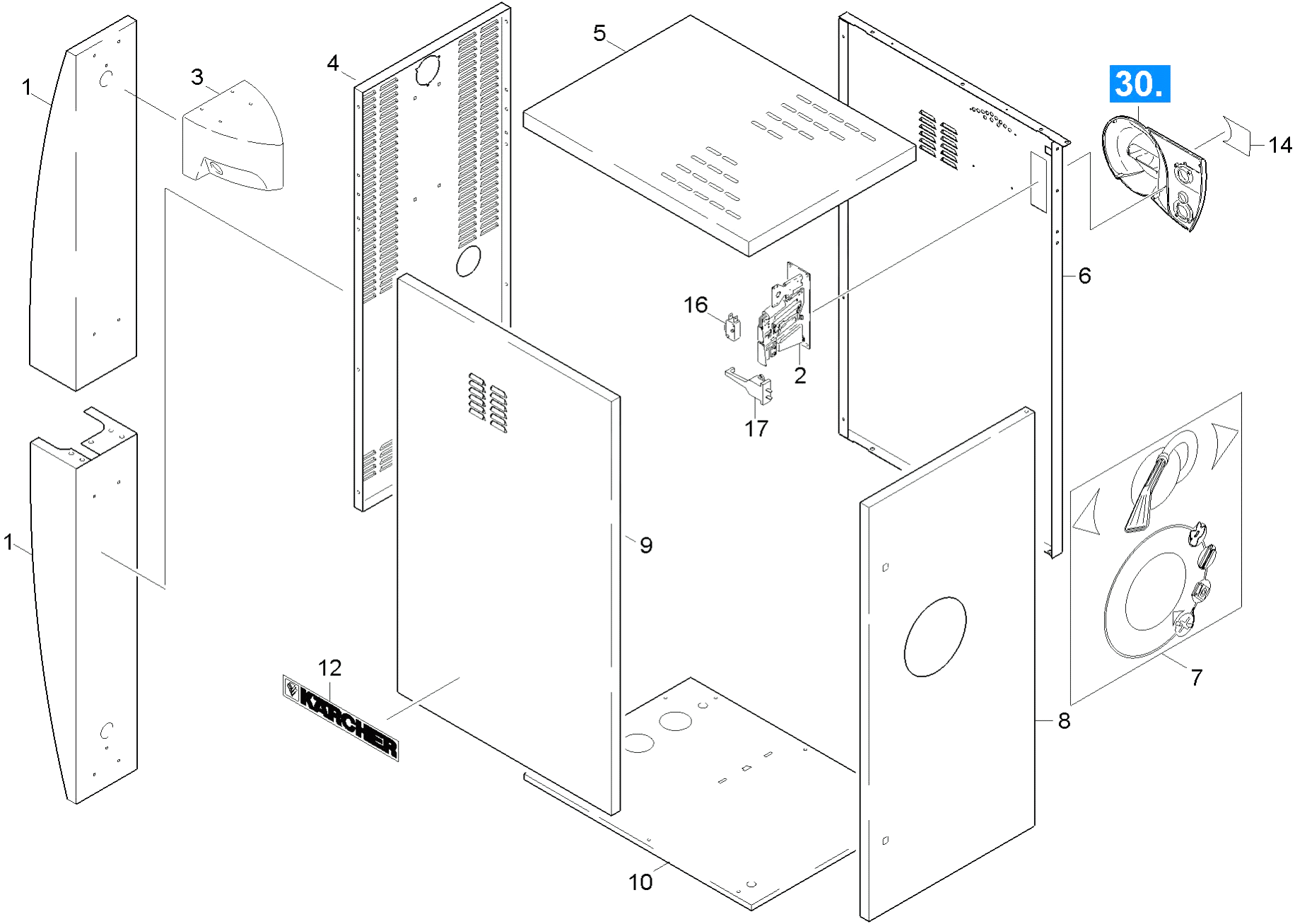

Karcher (Керхер) Рамка листовой металл (0.166-112.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

REF.	АРТИКУЛ	ОПИСАНИЕ
1	5.049-856.0	PLATE VA
1	5.049-322.0	Sheet metal component bracket 400 V -Mon
2	6.768-313.0	Coin acceptor EURO
2	5.860-003.0	Tool self-service vacuum cleaner
3	5.031-698.0	Moulded part self-service vacuum cleaner
3	6.647-906.0	Bracket ribbon cable twentysix-pole
4	5.049-853.0	Sheet metal component rear panel VA MONO
4	5.007-056.0	Stop electric self-service vacuum cleane
5	4.038-973.0	Sheet metal component roof Mono SB-Suger
5	5.048-682.0	Sheet metal component
6	5.051-433.0	Деталь из листового металла боковая стен
6	6.375-274.0	Lock
7	5.386-887.0	Label Blitzpfeil
7	5.383-003.0	Табличка стрела заброс мусора
8	7.306-077.0	Screw M5x16 -8.8-R2R (In6Rd)
8	5.049-854.0	Sheet metal component door VA MONO
9	6.310-059.0	Cage nut M 5
9	5.051-434.0	Деталь из листового металла боковая стен
10	7.303-139.0	Saucer-head screw M6x20 -A2 DIN 603
10	4.050-548.0	Sheet metal component base plate VA MONO
11	7.312-026.0	Washer 6 -A2 ISO 7090
12	7.311-067.0	Hexagon nut M 6-A2-70 ISO 4032
12	5.392-874.0	Label side Professional 355 x 133
13	6.641-356.0	Cable gland PG16
14	6.641-370.0	Locknut PG16-PA DIN 46320
14	5.380-597.0	Label Muenzsymbol
15	5.470-008.0	Coupler
16	7.303-128.0	Countersunk screw 5x20 -10.9-R2R (In6Rd
16	6.631-165.0	Switch
17	6.903-297.0	Flange
17	6.768-070.0	Slot lock electrically
18	5.408-023.0	Tube elbow
19	5.363-159.0	Joint ring
20	7.311-510.0	Hexagon nut M 8-8-A2E ISO 7040
21	6.413-154.0	Seal D30xD7x5
22	7.307-015.0	Threaded pin M8x50-St-45H-A2E ISO 4026
23	5.402-513.0	Connection piece
24	7.312-004.0	Washer 8 -200HV-A3E ISO 7090
25	7.304-400.0	Hexagonal head screw M 8x30-8.8-A2E ISO
26	5.046-542.0	Sheet metal component for connection pie
27	6.388-713.0	Hose clip
28	7.303-116.0	Screw 4x12-A2-70 (IN6RD)
29	6.390-441.0	Suction hose D=63x650mm
31	6.389-783.0	Soundproof hose 500mm
