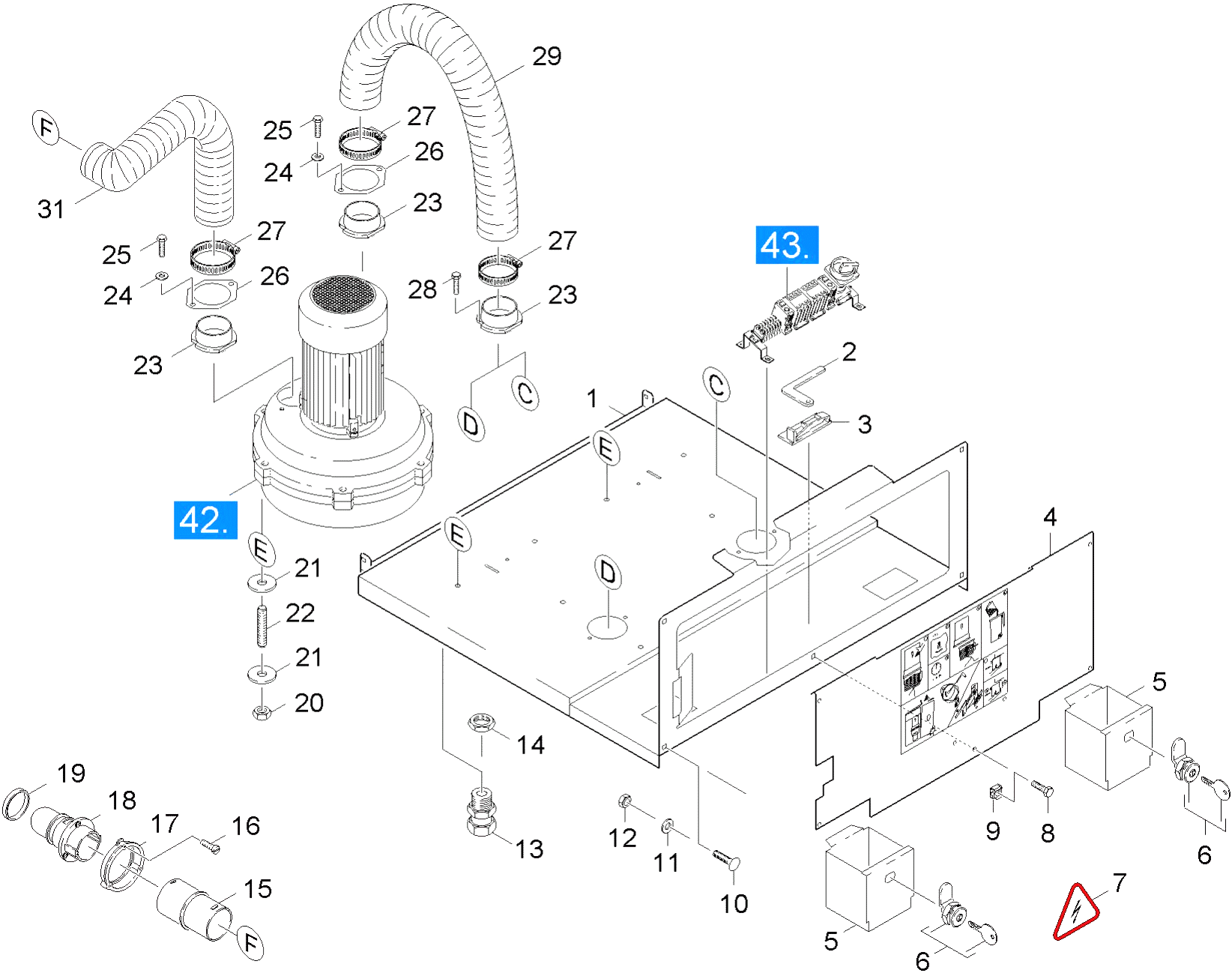

Karcher (Керхер) Основная пластина турбина (0.166-095.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

REF.	АРТИКУЛ	ОПИСАНИЕ
1	5.048-977.0	Sheet metal component
1	5.048-556.0	Sheet metal component black self-service
1	6.432-025.0	Chain 214LG
1	6.273-058.0	Sealing tape cellularrubber 9x4
1	7.305-055.0	Countersunk screw M6x30-A2-70 (IN6RD)
2	5.860-003.0	Tool self-service vacuum cleaner
2	2.639-917.0	Conversion kit vacuum cleaner 0,5-Euro-
2	2.639-973.0	Conversion kit vacuum cleaner 1-Euro-MP
2	7.312-262.0	Washer 10 -100HV-A3E ISO 7094
2	7.312-026.0	Washer 6 -A2 ISO 7090
2	7.312-003.0	Washer 6 -200HV-A3E ISO 7090
3	6.647-906.0	Bracket ribbon cable twentysix-pole
3	5.031-698.0	Moulded part self-service vacuum cleaner
3	7.305-053.0	Countersunk screw M6x16-A2-70 (IN6RD)
3	7.311-511.0	Hexagon nut M10-8-A2E ISO 7040
3	7.311-003.0	Hexagon nut M6 -8-A2E ISO 4032
3	7.311-067.0	Hexagon nut M 6-A2-70 ISO 4032
4	5.001-925.0	Cover plate electric
4	5.048-898.0	Sheet metal component white
4	5.049-061.0	Sheet metal component rear panel TOTAL
4	5.058-864.0	Sheet metal component tackle
4	7.306-074.0	Cylinder head screw M10x35-8.8-A3E ISO4
4	7.312-003.0	Washer 6 -200HV-A3E ISO 7090
4	5.017-339.0	ANGLE BEHAELTER
5	5.048-682.0	Sheet metal component
5	4.038-841.0	Roof black DUO SB
5	4.038-804.0	Sheet metal component complete
5	6.303-224.0	Saucer-head screw M5x16-St-A2R DIN 603
5	6.435-061.0	Castor D 75
5	5.305-149.0	Shaped screw
5	7.312-276.0	Washer 6 -200HV-A2E ISO7093-1
6	6.375-274.0	Lock
6	5.048-896.0	Sheet metal component side panel white
6	5.049-060.0	Sheet metal component TOTAL
6	7.312-052.0	Washer 5 -A2 ISO 7089
6	7.311-622.0	Cap nut M 6-A2 DIN 986
7	5.386-887.0	Label Blitzpfeil
7	5.383-433.0	Label arrow
7	7.311-431.0	Hexagon nut M 5-1.4305 ISO 10511
7	6.373-430.0	Ear IG M8
7	5.017-175.0	Angle 25X50X636
7	5.017-163.0	Angle 25X25X690
7	6.273-187.0	Cellular rubber Profilring
8	7.306-077.0	Screw M5x16 -8.8-R2R (In6Rd)
8	5.049-058.0	Sheet metal component door TOTAL
8	5.048-899.0	Sheet metal component white door
8	7.311-068.0	Hexagon nut M 8-A2-70 ISO 4032
8	7.307-417.0	Threaded pin M8x16 -45H-A2E ISO 4026
8	7.303-139.0	Saucer-head screw M6x20 -A2 DIN 603
8	6.368-106.0	Edge protection
9	6.310-059.0	Cage nut M 5
9	5.049-059.0	Sheet metal component side panel left TO
9	5.048-895.0	Sheet metal component black white mit Ka
9	7.312-067.0	Washer 4-A2 ISO 7089
9	6.431-077.0	Snap hook
9	7.312-058.0	Washer 5 -A2 ISO 7090
9	7.303-139.0	Saucer-head screw M6x20 -A2 DIN 603
9	7.310-012.0	Wing nut M 6 -A DIN 315
10	7.303-139.0	Saucer-head screw M6x20 -A2 DIN 603
10	5.048-897.0	Sheet metal component base plate
10	7.306-211.0	Screw M 4x25-A2-70 (IN6RD)
10	7.311-431.0	Hexagon nut M 5-1.4305 ISO 10511
10	5.383-377.0	Label self-service vacuum cleaner
10	7.306-092.0	Screw M6x20-ST- 8.8-R3R (IN6RD)
11	7.312-026.0	Washer 6 -A2 ISO 7090
11	5.380-596.0	Label Muenzsymbol
11	5.383-490.0	Label Muenzsymbol
11	4.802-009.0	Mounting part self-service vacuum cleane
11	7.304-538.0	Hexagonal head screw M8x16-A4-70 ISO 40
11	5.070-544.0	Tank self-service vacuum cleaner
12	7.311-067.0	Hexagon nut M 6-A2-70 ISO 4032
12	6.273-058.0	Sealing tape cellularrubber 9x4
12	7.303-075.0	Sheet metal screw ST4,8X 9,5-ST-A2R (IN
12	5.114-471.0	Ring self-service vacuum cleaner
13	6.641-356.0	Cable gland PG16
13	5.383-447.0	Label self-service vacuum cleaner DUO
13	7.306-182.0	Pan head screw M5x16 -A2-70 ISO 14583
13	5.048-792.0	Sheet metal component self-service vacuu
13	7.304-399.0	Hexagonal head screw M 8x25-8.8-A2E ISO
14	6.641-370.0	Locknut PG16-PA DIN 46320
14	5.380-597.0	Label Muenzsymbol
14	5.383-491.0	Label Muenzsymbol
14	6.310-062.0	Cap nut M 8
14	5.001-925.0	Cover plate electric
15	5.470-008.0	Coupler
15	5.049-079.0	Sheet metal component black column
15	7.315-411.0	Rivet 8,0x0,4x6,0-CuZn DIN 7340
15	7.304-395.0	Hexagonal head screw M8x16-8.8-A2E ISO
15	5.048-525.0	Sheet metal component bracket 230 V DUO
15	7.311-004.0	Hexagon nut M8 -8-A3E ISO 4032
16	7.303-128.0	Countersunk screw 5x20 -10.9-R2R (In6Rd
16	6.631-165.0	Switch
16	6.304-054.0	Hexagonal head screw M 8x 16
16	7.312-004.0	Washer 8 -200HV-A3E ISO 7090
16	5.860-003.0	Tool self-service vacuum cleaner
16	7.312-017.0	Washer 8-A2 ISO 7089
17	6.903-297.0	Flange
17	6.768-070.0	Slot lock electrically
17	5.042-403.0	Hose holder
17	5.042-268.0	Hose holder
17	5.132-074.0	Plug
17	6.647-906.0	Bracket ribbon cable twentysix-pole
17	7.311-620.0	Cap nut M8 -A2 DIN 986
18	5.408-023.0	Tube elbow
18	5.672-183.0	Bracket self-service vacuum cleaner coin
18	6.412-751.0	Joint ring
19	5.363-159.0	Joint ring
19	6.542-030.0	Spring drive 1-2kg
19	5.108-193.0	Pin self-service vacuum cleaner
20	7.311-510.0	Hexagon nut M 8-8-A2E ISO 7040
20	7.311-006.0	Hexagon nut M10 -8-A3E ISO 4032
20	7.306-077.0	Screw M5x16 -8.8-R2R (In6Rd)
20	6.321-150.0	Handhold self-service vacuum cleaner vib
21	6.413-154.0	Seal D30xD7x5
21	7.306-021.0	Cylinder head screw M10x50 -A2-70 ISO 4
21	7.306-090.0	Screw M6x16 -8.8-R3R (In6Rd)
21	4.263-028.0	Tensioning part self-service vacuum clea
22	7.307-015.0	Threaded pin M8x50-St-45H-A2E ISO 4026
22	7.303-300.0	Knurled thumb screw M6x12-ST-A2E DIN 65
22	6.641-356.0	Cable gland PG16
22	6.388-754.0	Hose 13X3,5 PVC
23	5.402-513.0	Connection piece
23	6.641-370.0	Locknut PG16-PA DIN 46320
23	6.390-150.0	Clamp
24	7.312-004.0	Washer 8 -200HV-A3E ISO 7090
24	5.048-682.0	Sheet metal component
24	7.306-131.0	Screw M6x45 -8.8-A3R (In6Rd)
25	7.304-400.0	Hexagonal head screw M 8x30-8.8-A2E ISO
25	6.375-274.0	Lock
25	4.070-351.0	Tank complete trash can
26	5.046-542.0	Sheet metal component for connection pie
26	6.686-134.0	Magnet SB SAUGER
26	6.904-174.0	Dust filter
27	6.388-713.0	Hose clip
27	5.383-214.0	Label
27	6.373-699.0	Hook self-service vacuum cleaner L=28, M
28	7.303-116.0	Screw 4x12-A2-70 (IN6RD)
28	5.386-887.0	Label Blitzpfeil
28	7.306-089.0	Screw M6x12 -8.8-R2R (In6Rd)
29	6.390-441.0	Suction hose D=63x650mm
29	7.315-600.0	Blind rivet 4x8 -Al/A2 ISO 15984
30	5.045-451.0	Sheet metal component
31	6.389-783.0	Soundproof hose 500mm
32	4.610-061.0	Blower complete
32	4.610-026.0	Vacuum motor
33	6.273-060.0	Profile gasket D78
34	5.692-016.0	Air circulation
35	5.379-007.0	Rubber ring
36	5.034-368.0	Retaining bracket
37	5.108-122.0	Pin
38	5.031-410.0	Moulded part
39	5.034-383.0	Retaining bracket
40	7.303-063.0	Sheet metal screw ST3,5X16-ST-A2R (IN6R
41	6.610-212.0	Carbon brush set only for replacement F.
