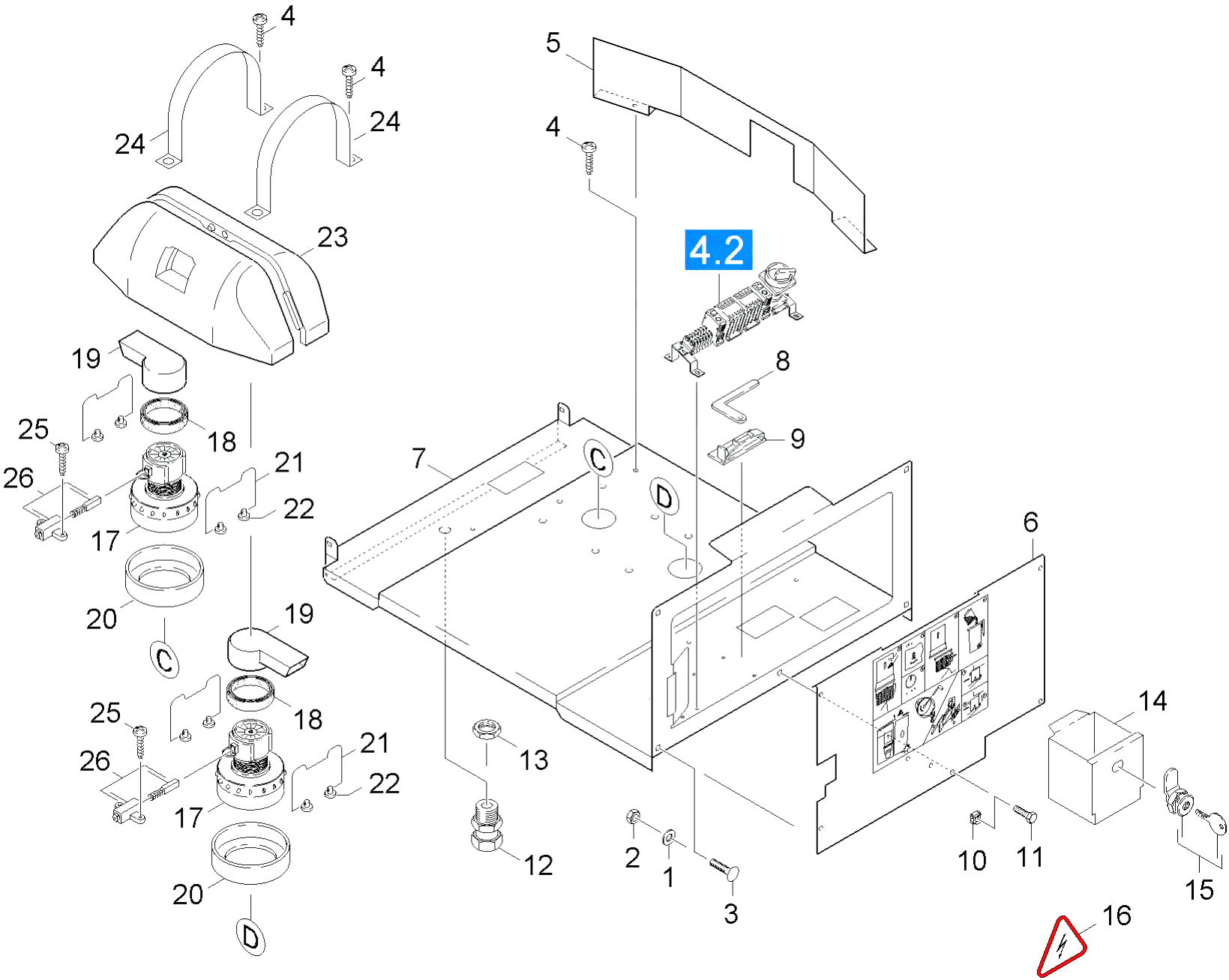

Karcher (Керхер) Основная пластина турбина (0.165-840.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

REF.	АРТИКУЛ	ОПИСАНИЕ
1	7.312-026.0	Washer 6 -A2 ISO 7090
2	7.311-067.0	Hexagon nut M 6-A2-70 ISO 4032
3	7.303-139.0	Saucer-head screw M6x20 -A2 DIN 603
3	7.303-075.0	Sheet metal screw ST4,8X 9,5-ST-A2R (IN
4	7.303-075.0	Sheet metal screw ST4,8X 9,5-ST-A2R (IN
4	5.048-792.0	Sheet metal component self-service vacuu
5	5.048-792.0	Sheet metal component self-service vacuu
5	5.001-925.0	Cover plate electric
6	5.007-056.0	Stop electric self-service vacuum cleane
7	5.049-147.0	Sheet metal component bracket 230 V MONO
8	5.860-003.0	Tool self-service vacuum cleaner
9	6.647-906.0	Bracket ribbon cable twentysix-pole
10	6.310-059.0	Cage nut M 5
11	7.306-077.0	Screw M5x16 -8.8-R2R (In6Rd)
12	6.641-356.0	Cable gland PG16
13	6.641-370.0	Locknut PG16-PA DIN 46320
14	5.048-682.0	Sheet metal component
15	6.375-274.0	Lock
16	4.066-218.0	Cover only for replacement
16	4.066-220.0	Cover grey SHELL
16	4.066-221.0	Cover grey only for replacement ESSO
16	5.386-887.0	Label Blitzpfeil
17	4.610-026.0	Vacuum motor
18	6.273-060.0	Profile gasket D78
19	5.692-016.0	Air circulation
20	5.379-007.0	Rubber ring
21	5.034-368.0	Retaining bracket
22	5.108-122.0	Pin
23	5.031-410.0	Moulded part
24	5.034-383.0	Retaining bracket
25	7.303-063.0	Sheet metal screw ST3,5X16-ST-A2R (IN6R
26	6.610-212.0	Carbon brush set only for replacement F.
