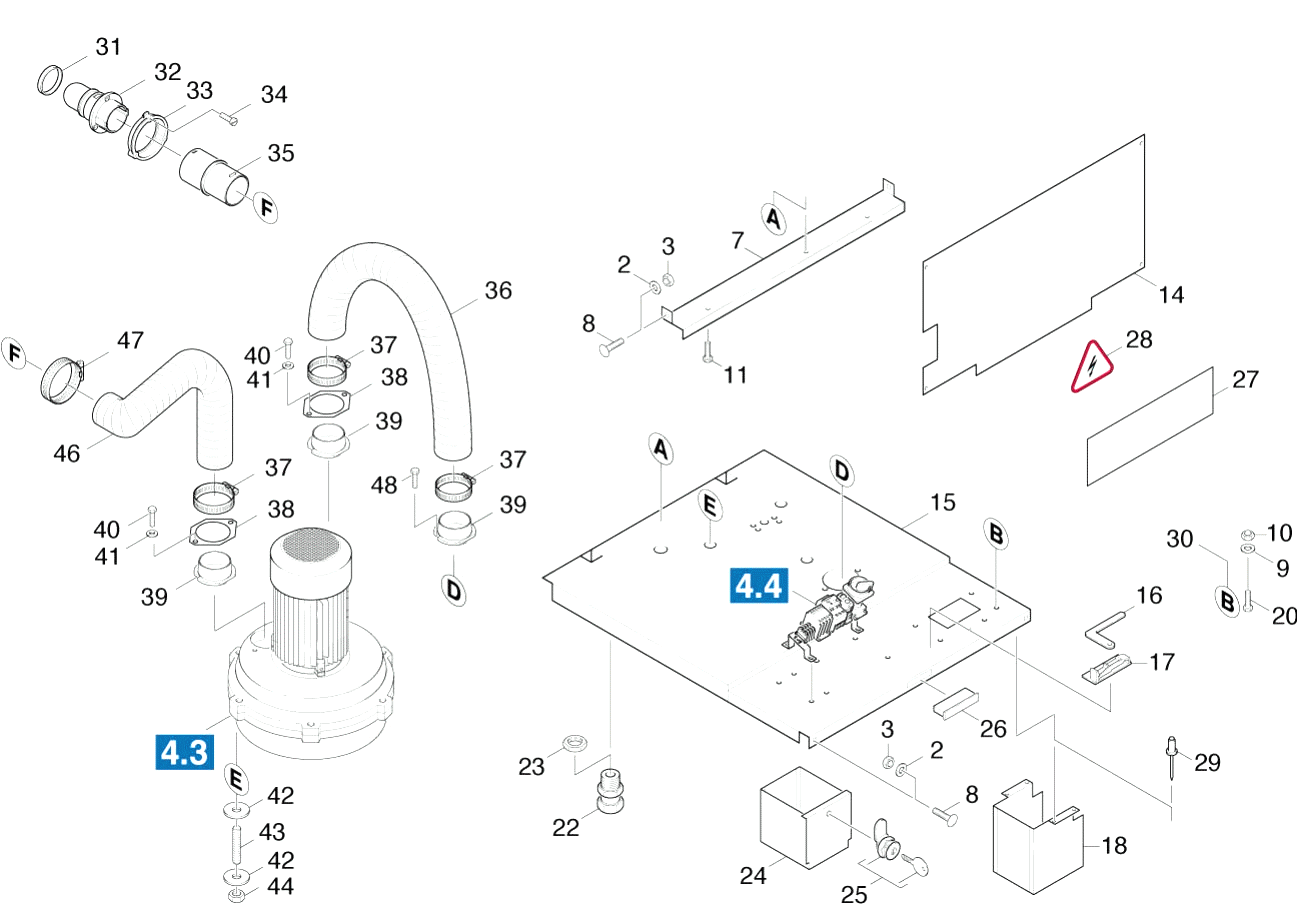

Karcher (Керхер) Основная пластина турбина (0.163-017.0)
Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85
| REF. |
АРТИКУЛ |
ОПИСАНИЕ |
ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
| 1 |
7.305-055.0 |
Countersunk screw M6x30-A2-70 (IN6RD) |
|
| 1 |
5.048-556.0 |
Sheet metal component black self-service |
|
| 1 |
6.432-025.0 |
Chain 214LG |
|
| 1 |
6.273-058.0 |
Sealing tape cellularrubber 9x4 |
|
| 2 |
7.312-026.0 |
Washer 6 -A2 ISO 7090 |
|
| 2 |
7.312-003.0 |
Washer 6 -200HV-A3E ISO 7090 |
|
| 2 |
2.639-973.0 |
Conversion kit vacuum cleaner 1-Euro-MP |
|
| 2 |
2.639-917.0 |
Conversion kit vacuum cleaner 0,5-Euro- |
|
| 2 |
7.312-262.0 |
Washer 10 -100HV-A3E ISO 7094 |
|
| 3 |
7.311-067.0 |
Hexagon nut M 6-A2-70 ISO 4032 |
|
| 3 |
7.311-003.0 |
Hexagon nut M6 -8-A2E ISO 4032 |
|
| 3 |
5.031-698.0 |
Moulded part self-service vacuum cleaner |
|
| 3 |
7.305-053.0 |
Countersunk screw M6x16-A2-70 (IN6RD) |
|
| 3 |
7.311-511.0 |
Hexagon nut M10-8-A2E ISO 7040 |
|
| 4 |
5.017-339.0 |
ANGLE BEHAELTER |
|
| 4 |
5.049-144.0 |
Sheet metal component white |
|
| 4 |
5.058-864.0 |
Sheet metal component tackle |
|
| 4 |
7.306-074.0 |
Cylinder head screw M10x35-8.8-A3E ISO4 |
|
| 4 |
7.312-003.0 |
Washer 6 -200HV-A3E ISO 7090 |
|
| 5 |
7.312-276.0 |
Washer 6 -200HV-A2E ISO7093-1 |
|
| 5 |
4.038-879.0 |
Roof black hose clamp MONO SB |
|
| 5 |
4.038-847.0 |
Sheet metal component complete black Dac |
|
| 5 |
6.303-224.0 |
Saucer-head screw M5x16-St-A2R DIN 603 |
|
| 5 |
6.435-061.0 |
Castor D 75 |
|
| 5 |
5.305-149.0 |
Shaped screw |
|
| 6 |
7.311-622.0 |
Cap nut M 6-A2 DIN 986 |
|
| 6 |
5.048-896.0 |
Sheet metal component side panel white |
|
| 6 |
5.049-060.0 |
Sheet metal component TOTAL |
|
| 6 |
7.312-052.0 |
Washer 5 -A2 ISO 7089 |
|
| 7 |
5.017-346.0 |
Angle self-service vacuum cleaner 486X5 |
|
| 7 |
6.273-187.0 |
Cellular rubber Profilring |
|
| 7 |
5.383-433.0 |
Label arrow |
|
| 7 |
7.311-431.0 |
Hexagon nut M 5-1.4305 ISO 10511 |
|
| 7 |
6.373-430.0 |
Ear IG M8 |
|
| 7 |
5.017-347.0 |
Angle 540X25X68 |
|
| 8 |
7.303-139.0 |
Saucer-head screw M6x20 -A2 DIN 603 |
|
| 8 |
5.049-146.0 |
Sheet metal component door self-service |
|
| 8 |
7.311-068.0 |
Hexagon nut M 8-A2-70 ISO 4032 |
|
| 8 |
7.307-417.0 |
Threaded pin M8x16 -45H-A2E ISO 4026 |
|
| 8 |
6.368-106.0 |
Edge protection |
|
| 9 |
7.312-058.0 |
Washer 5 -A2 ISO 7090 |
|
| 9 |
7.310-012.0 |
Wing nut M 6 -A DIN 315 |
|
| 9 |
5.049-140.0 |
Sheet metal component black white mit Ka |
|
| 9 |
5.049-406.0 |
Side panel left MONO-SAUGER TOTAL |
|
| 9 |
7.312-067.0 |
Washer 4-A2 ISO 7089 |
|
| 9 |
6.431-077.0 |
Snap hook |
|
| 9 |
7.303-139.0 |
Saucer-head screw M6x20 -A2 DIN 603 |
|
| 10 |
7.311-431.0 |
Hexagon nut M 5-1.4305 ISO 10511 |
|
| 10 |
7.306-092.0 |
Screw M6x20-ST- 8.8-R3R (IN6RD) |
|
| 10 |
5.049-142.0 |
Sheet metal component base plate black |
|
| 10 |
7.306-211.0 |
Screw M 4x25-A2-70 (IN6RD) |
|
| 10 |
5.383-377.0 |
Label self-service vacuum cleaner |
|
| 11 |
7.304-538.0 |
Hexagonal head screw M8x16-A4-70 ISO 40 |
|
| 11 |
5.070-544.0 |
Tank self-service vacuum cleaner |
|
| 11 |
4.802-010.0 |
Mounting part hose return MONO SB |
|
| 12 |
5.114-471.0 |
Ring self-service vacuum cleaner |
|
| 12 |
6.273-058.0 |
Sealing tape cellularrubber 9x4 |
|
| 12 |
7.303-075.0 |
Sheet metal screw ST4,8X 9,5-ST-A2R (IN |
|
| 13 |
7.304-399.0 |
Hexagonal head screw M 8x25-8.8-A2E ISO |
|
| 13 |
5.383-447.0 |
Label self-service vacuum cleaner DUO |
|
| 13 |
7.306-182.0 |
Pan head screw M5x16 -A2-70 ISO 14583 |
|
| 13 |
5.048-792.0 |
Sheet metal component self-service vacuu |
|
| 14 |
5.007-056.0 |
Stop electric self-service vacuum cleane |
|
| 14 |
5.383-491.0 |
Label Muenzsymbol |
|
| 14 |
5.380-597.0 |
Label Muenzsymbol |
|
| 14 |
6.310-062.0 |
Cap nut M 8 |
|
| 15 |
5.049-332.0 |
Sheet metal component rear tub |
|
| 15 |
7.311-004.0 |
Hexagon nut M8 -8-A3E ISO 4032 |
|
| 15 |
5.049-079.0 |
Sheet metal component black column |
|
| 15 |
7.315-411.0 |
Rivet 8,0x0,4x6,0-CuZn DIN 7340 |
|
| 15 |
7.304-395.0 |
Hexagonal head screw M8x16-8.8-A2E ISO |
|
| 15 |
5.049-147.0 |
Sheet metal component bracket 230 V MONO |
|
| 16 |
5.860-003.0 |
Tool self-service vacuum cleaner |
|
| 16 |
7.312-017.0 |
Washer 8-A2 ISO 7089 |
|
| 16 |
6.631-165.0 |
Switch |
|
| 16 |
6.304-054.0 |
Hexagonal head screw M 8x 16 |
|
| 16 |
7.312-004.0 |
Washer 8 -200HV-A3E ISO 7090 |
|
| 17 |
6.647-906.0 |
Bracket ribbon cable twentysix-pole |
|
| 17 |
7.311-427.0 |
Hexagon nut M8 -04-A2E ISO 10511 |
|
| 17 |
6.768-070.0 |
Slot lock electrically |
|
| 17 |
5.042-403.0 |
Hose holder |
|
| 17 |
5.132-074.0 |
Plug |
|
| 18 |
5.672-183.0 |
Bracket self-service vacuum cleaner coin |
|
| 18 |
6.412-751.0 |
Joint ring |
|
| 18 |
5.058-864.0 |
Sheet metal component tackle |
|
| 19 |
5.108-193.0 |
Pin self-service vacuum cleaner |
|
| 19 |
6.542-030.0 |
Spring drive 1-2kg |
|
| 20 |
7.306-077.0 |
Screw M5x16 -8.8-R2R (In6Rd) |
|
| 20 |
6.321-150.0 |
Handhold self-service vacuum cleaner vib |
|
| 20 |
7.311-006.0 |
Hexagon nut M10 -8-A3E ISO 4032 |
|
| 21 |
4.263-029.0 |
Натяжная сторона бока спинки пылесос. са |
|
| 21 |
7.306-021.0 |
Cylinder head screw M10x50 -A2-70 ISO 4 |
|
| 21 |
7.306-090.0 |
Screw M6x16 -8.8-R3R (In6Rd) |
|
| 22 |
6.641-356.0 |
Cable gland PG16 |
|
| 22 |
6.388-754.0 |
Hose 13X3,5 PVC |
|
| 22 |
7.306-089.0 |
Screw M6x12 -8.8-R2R (In6Rd) |
|
| 23 |
6.641-370.0 |
Locknut PG16-PA DIN 46320 |
|
| 23 |
6.390-150.0 |
Clamp |
|
| 24 |
5.048-682.0 |
Sheet metal component |
|
| 24 |
7.306-131.0 |
Screw M6x45 -8.8-A3R (In6Rd) |
|
| 25 |
6.375-279.0 |
Lock self-service vacuum cleaner |
|
| 25 |
4.070-351.0 |
Tank complete trash can |
|
| 25 |
6.375-274.0 |
Lock |
|
| 26 |
6.686-134.0 |
Magnet SB SAUGER |
|
| 26 |
6.904-174.0 |
Dust filter |
|
| 27 |
5.383-214.0 |
Label |
|
| 27 |
6.373-699.0 |
Hook self-service vacuum cleaner L=28, M |
|
| 28 |
5.386-887.0 |
Label Blitzpfeil |
|
| 28 |
7.306-089.0 |
Screw M6x12 -8.8-R2R (In6Rd) |
|
| 29 |
7.315-600.0 |
Blind rivet 4x8 -Al/A2 ISO 15984 |
|
| 29 |
6.273-188.0 |
Cord cellular rubber D=10MM 968MM LANG |
|
| 30 |
5.045-451.0 |
Sheet metal component |
|
| 30 |
6.369-259.0 |
Insert D 12 |
|
| 31 |
5.363-159.0 |
Joint ring |
|
| 31 |
7.305-058.0 |
Countersunk screw M6x40-ST-8.8-R2R (IN6 |
|
| 32 |
5.408-023.0 |
Tube elbow |
|
| 32 |
7.312-167.0 |
Toothed lock washer A6,4-FSt-A3E DIN 67 |
|
| 32 |
4.610-026.0 |
Vacuum motor |
|
| 32 |
4.610-061.0 |
Blower complete |
|
| 33 |
6.903-297.0 |
Flange |
|
| 33 |
6.273-060.0 |
Profile gasket D78 |
|
| 34 |
7.303-128.0 |
Countersunk screw 5x20 -10.9-R2R (In6Rd |
|
| 34 |
5.692-016.0 |
Air circulation |
|
| 35 |
5.470-008.0 |
Coupler |
|
| 35 |
5.379-007.0 |
Rubber ring |
|
| 36 |
6.390-441.0 |
Suction hose D=63x650mm |
|
| 36 |
5.034-368.0 |
Retaining bracket |
|
| 37 |
6.388-713.0 |
Hose clip |
|
| 37 |
5.108-122.0 |
Pin |
|
| 38 |
5.046-542.0 |
Sheet metal component for connection pie |
|
| 38 |
5.031-410.0 |
Moulded part |
|
| 39 |
5.402-513.0 |
Connection piece |
|
| 39 |
5.034-383.0 |
Retaining bracket |
|
| 40 |
7.304-400.0 |
Hexagonal head screw M 8x30-8.8-A2E ISO |
|
| 40 |
7.303-063.0 |
Sheet metal screw ST3,5X16-ST-A2R (IN6R |
|
| 41 |
7.312-004.0 |
Washer 8 -200HV-A3E ISO 7090 |
|
| 41 |
6.610-212.0 |
Carbon brush set only for replacement F. |
|
| 42 |
6.413-154.0 |
Seal D30xD7x5 |
|
| 43 |
7.307-015.0 |
Threaded pin M8x50-St-45H-A2E ISO 4026 |
|
| 44 |
7.311-510.0 |
Hexagon nut M 8-8-A2E ISO 7040 |
|
| 46 |
6.389-783.0 |
Soundproof hose 500mm |
|
| 47 |
6.388-704.0 |
Hose clip |
|
| 48 |
7.303-116.0 |
Screw 4x12-A2-70 (IN6RD) |
|
