Karcher (Керхер) Основная пластина турбина (0.163-006.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

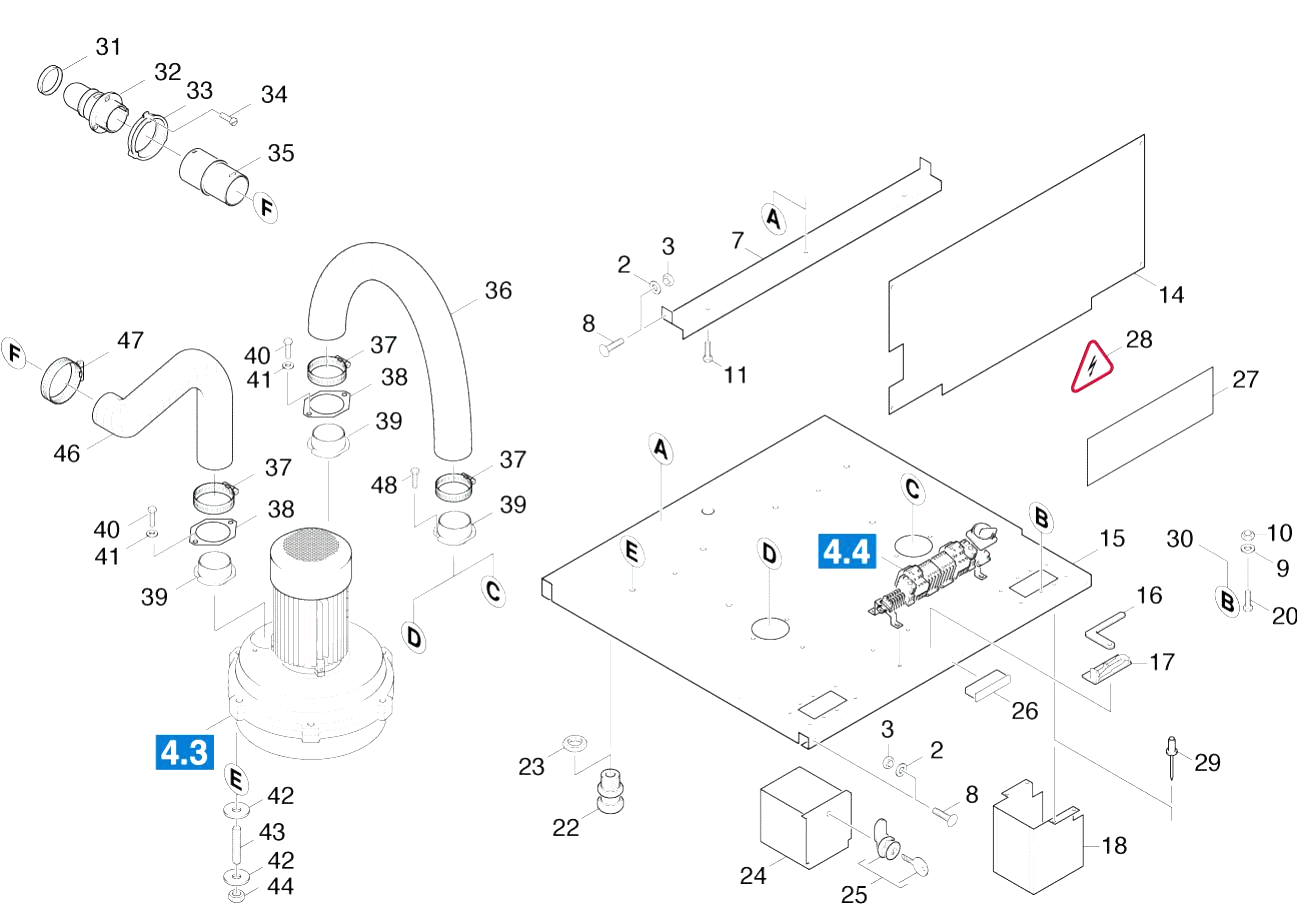

REF.	АРТИКУЛ	ОПИСАНИЕ
2	7.312-026.0	Washer 6 -A2 ISO 7090
3	7.311-067.0	Hexagon nut M 6-A2-70 ISO 4032
7	5.017-175.0	Angle 25X50X636
8	7.303-139.0	Saucer-head screw M6x20 -A2 DIN 603
9	7.312-058.0	Washer 5 -A2 ISO 7090
10	7.311-431.0	Hexagon nut M 5-1.4305 ISO 10511
11	7.304-538.0	Hexagonal head screw M8x16-A4-70 ISO 40
14	5.001-925.0	Cover plate electric
15	5.048-977.0	Sheet metal component
16	5.860-003.0	Tool self-service vacuum cleaner
17	6.647-906.0	Bracket ribbon cable twentysix-pole
18	5.672-183.0	Bracket self-service vacuum cleaner coin
20	7.306-077.0	Screw M5x16 -8.8-R2R (In6Rd)
21	7.306-090.0	Screw M6x16 -8.8-R3R (In6Rd)
22	7.303-300.0	Knurled thumb screw M6x12-ST-A2E DIN 65
22	6.641-356.0	Cable gland PG16
23	6.641-370.0	Locknut PG16-PA DIN 46320
24	5.048-682.0	Sheet metal component
25	6.375-274.0	Lock
26	6.686-134.0	Magnet SB SAUGER
27	5.383-214.0	Label
28	5.386-887.0	Label Blitzpfeil
29	7.315-600.0	Blind rivet 4x8 -Al/A2 ISO 15984
