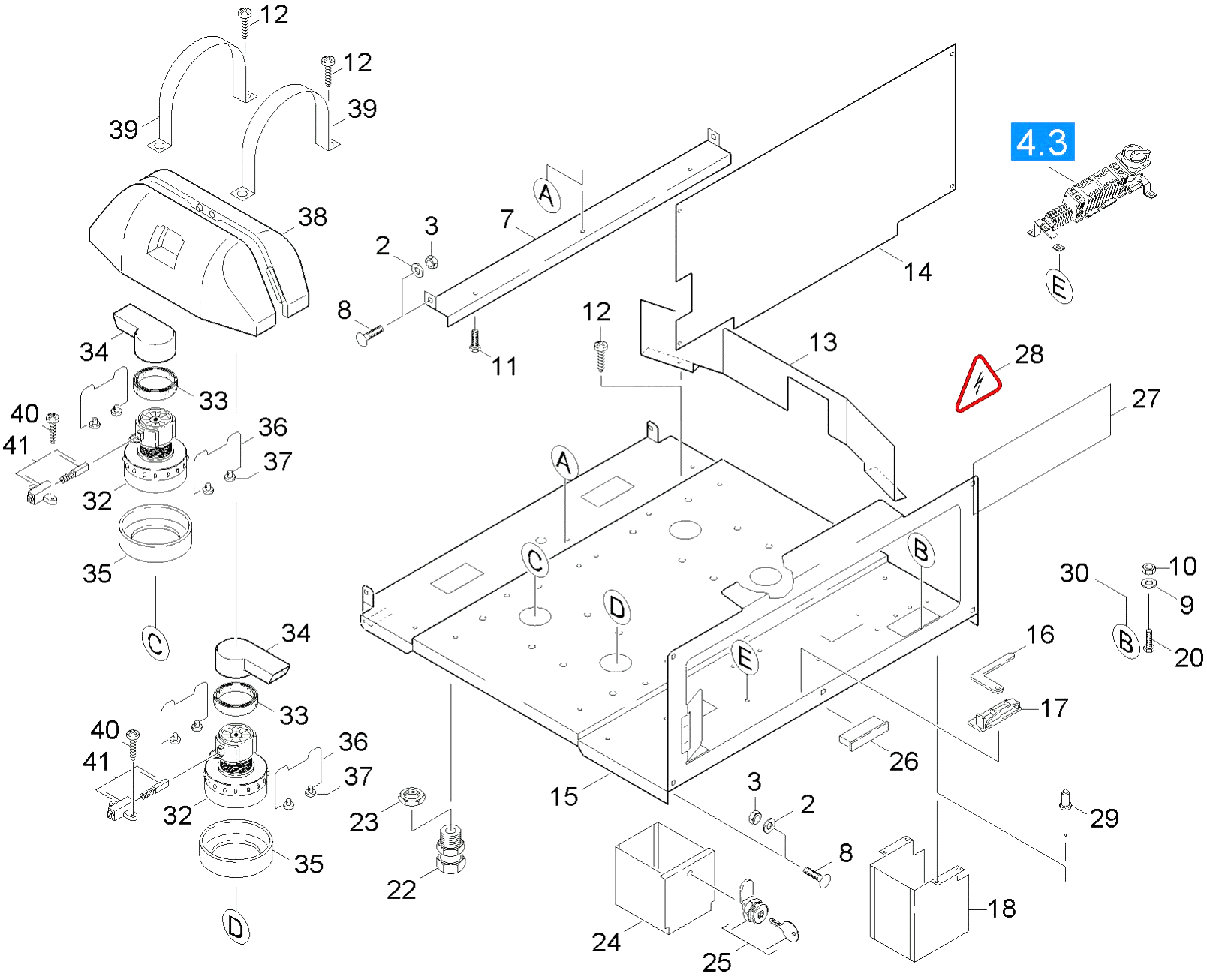

Karcher (Керхер) Основная пластина турбина (0.162-949.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

REF.	АРТИКУЛ	ОПИСАНИЕ
1	7.305-055.0	Countersunk screw M6x30-A2-70 (IN6RD)
2	7.312-026.0	Washer 6 -A2 ISO 7090
2	7.312-003.0	Washer 6 -200HV-A3E ISO 7090
3	7.311-067.0	Hexagon nut M 6-A2-70 ISO 4032
3	7.311-003.0	Hexagon nut M6 -8-A2E ISO 4032
4	5.017-339.0	ANGLE BEHAELTER
5	7.312-276.0	Washer 6 -200HV-A2E ISO7093-1
6	7.311-622.0	Cap nut M 6-A2 DIN 986
7	5.017-175.0	Angle 25X50X636
7	6.273-187.0	Cellular rubber Profilring
8	7.303-139.0	Saucer-head screw M6x20 -A2 DIN 603
9	7.312-058.0	Washer 5 -A2 ISO 7090
9	7.310-012.0	Wing nut M 6 -A DIN 315
10	7.311-431.0	Hexagon nut M 5-1.4305 ISO 10511
10	7.306-092.0	Screw M6x20-ST- 8.8-R3R (IN6RD)
11	7.304-538.0	Hexagonal head screw M8x16-A4-70 ISO 40
11	5.070-544.0	Tank self-service vacuum cleaner
12	7.303-075.0	Sheet metal screw ST4,8X 9,5-ST-A2R (IN
12	5.114-471.0	Ring self-service vacuum cleaner
13	5.048-792.0	Sheet metal component self-service vacuu
13	7.304-399.0	Hexagonal head screw M 8x25-8.8-A2E ISO
14	5.001-925.0	Cover plate electric
15	5.048-525.0	Sheet metal component bracket 230 V DUO
15	7.311-004.0	Hexagon nut M8 -8-A3E ISO 4032
16	5.860-003.0	Tool self-service vacuum cleaner
16	7.312-017.0	Washer 8-A2 ISO 7089
17	6.647-906.0	Bracket ribbon cable twentysix-pole
17	7.311-620.0	Cap nut M8 -A2 DIN 986
18	5.672-183.0	Bracket self-service vacuum cleaner coin
18	6.412-751.0	Joint ring
19	5.108-193.0	Pin self-service vacuum cleaner
20	7.306-077.0	Screw M5x16 -8.8-R2R (In6Rd)
20	6.321-150.0	Handhold self-service vacuum cleaner vib
21	4.263-028.0	Tensioning part self-service vacuum clea
22	6.641-356.0	Cable gland PG16
23	6.641-370.0	Locknut PG16-PA DIN 46320
24	5.048-682.0	Sheet metal component
25	6.375-274.0	Lock
26	6.686-134.0	Magnet SB SAUGER
27	5.383-214.0	Label
28	5.386-887.0	Label Blitzpfeil
29	7.315-600.0	Blind rivet 4x8 -Al/A2 ISO 15984
