Karcher (Керхер) Держатель шланга (0.163-957.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

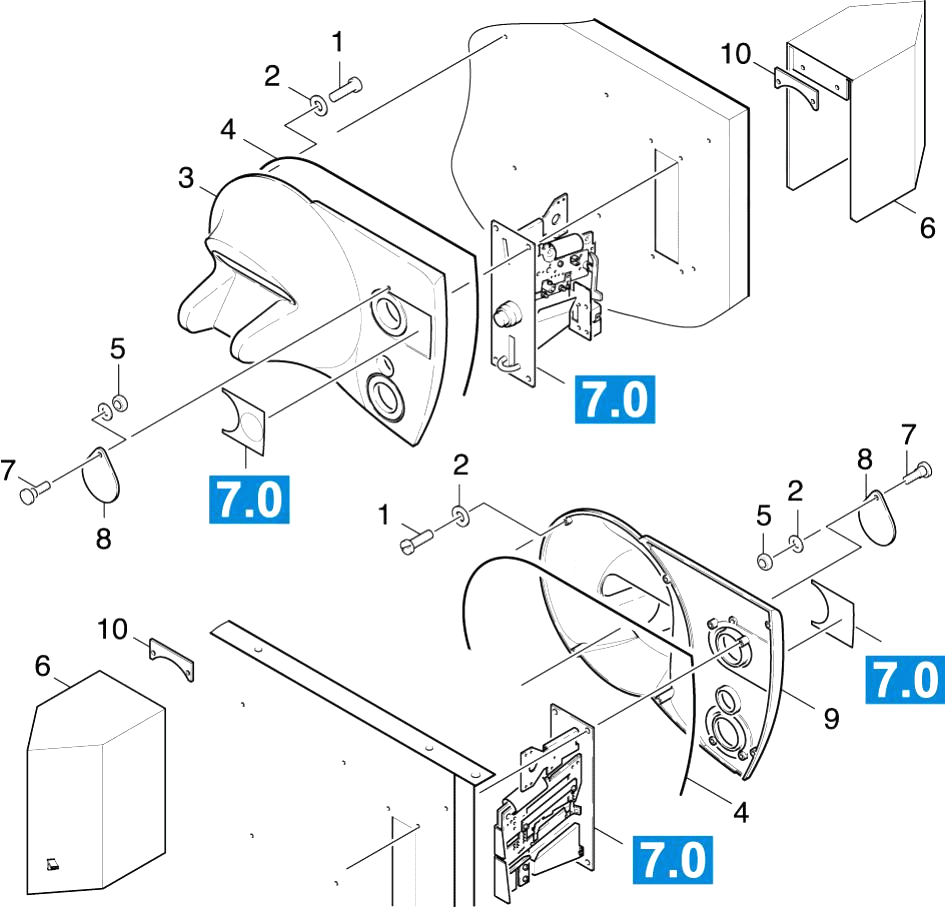

REF.	АРТИКУЛ	ОПИСАНИЕ
1	7.303-106.0	Screw 4x12 -10.9-R2R (IN6RD)
2	7.312-001.0	Washer 4 -200HV-A3E ISO 7089
3	5.031-724.0	Moulded part self-service vacuum cleaner
4	6.273-037.0	Seal string cellular rubber 3
5	7.311-064.0	Hexagon nut M 4-A2-70 ISO 4032
6	4.040-489.0	Sheet metal component complete
7	5.316-923.0	Bolt self-service vacuum cleaner
8	5.006-107.0	Cover plate coin acceptor SB-Sauger
9	5.031-725.0	Moulded part self-service vacuum cleaner
10	5.008-529.0	Plate
13	5.042-550.0	Holder
16	5.382-509.0	Label
16	5.388-851.0	Label self-service vacuum cleaner yellow
16	5.382-511.0	Label
16	5.389-050.0	Label white
16	5.389-533.0	Label JET
17	5.389-324.0	Label white left 20 FT
17	5.389-002.0	Label 500 LIRE
17	5.389-233.0	Label yellow 20 FT
17	5.382-512.0	Label yellow left 10 CZK
17	5.389-006.0	Label 10 OES
17	5.388-859.0	Label yellow left WM
17	5.390-287.0	Label left DM-BP
18	5.382-506.0	Label yellow right 20FT
18	5.382-517.0	Label yellow right 10 SK
18	5.390-289.0	Label right DM-BP
18	5.389-840.0	Табличка жёлтый справа 20BFR
18	5.389-485.0	Label yellow right WM
18	5.382-513.0	Label yellow right 10CZK
18	5.382-393.0	Label yellow right 10 OS
19	6.273-120.0	Adhesiv cloth tape Zellkautschuk
20	5.442-790.0	Piece of tube
