Karcher (Керхер) Прибор детали (0.165-315.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

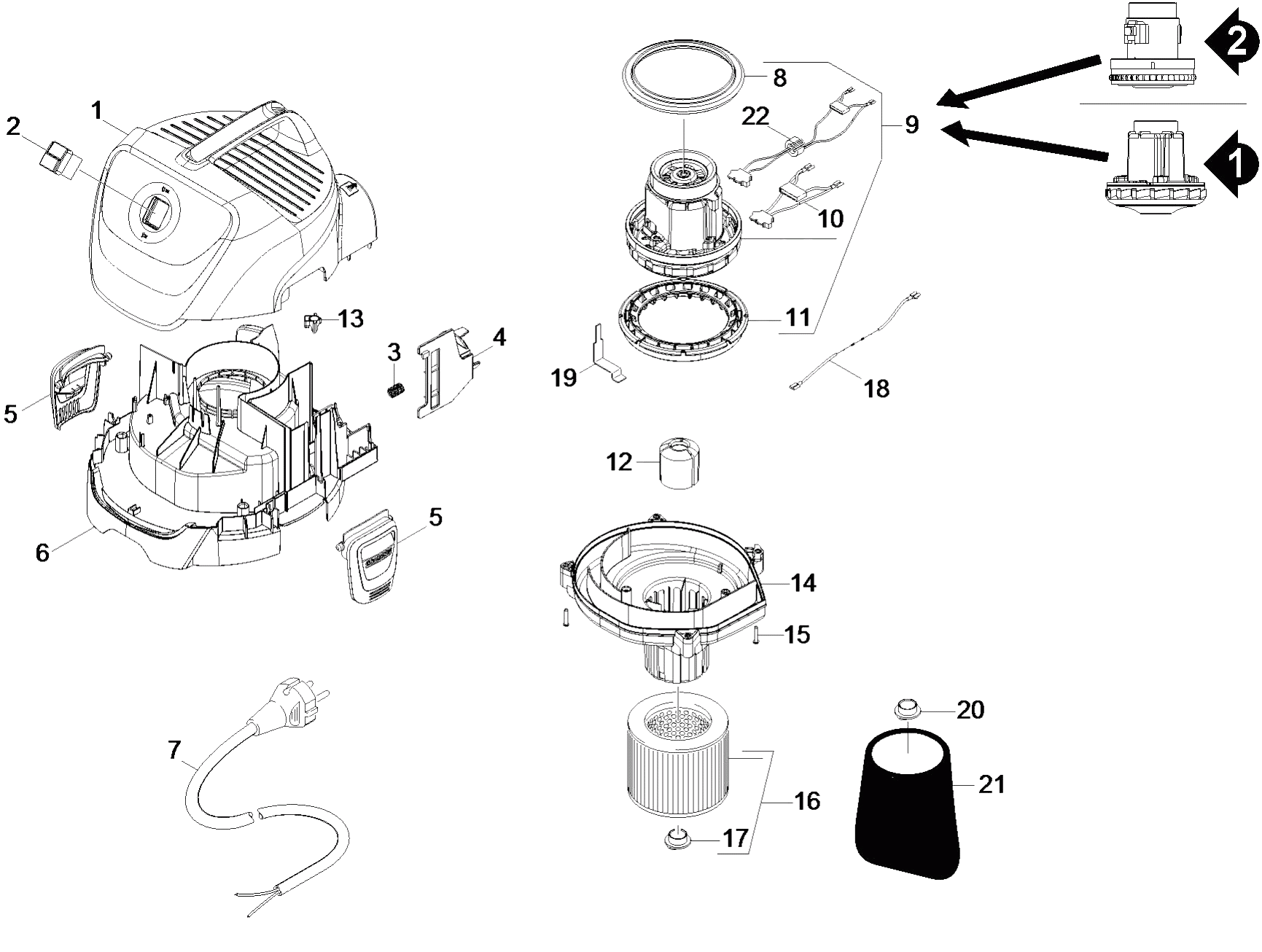

REF.	АРТИКУЛ	ОПИСАНИЕ
1	5.069-310.0	Cover WD 3.XXX neutral
2	6.630-087.0	Switch
3	5.332-997.0	Helical spring
4	5.640-363.0	Slider
5	5.075-037.0	Closure
6	5.053-185.0	Motor bracket M
7	6.649-967.0	Cable with plug *JP
7	6.649-148.0	Cable with plug *AU
7	6.649-056.0	Cable with plug
7	6.648-021.0	Cable with plug *GB
7	6.647-996.0	Cable with plug *EU Cable with plug
7	6.650-261.0	Cable with plug *TW
7	6.650-092.0	Cable with plug H05 VV-F 2x0,75 *CH
8	9.079-024.0	Уплотнитель
9	4.624-103.0	Vacuum motor complete for replacement 12
9	4.624-025.0	Vacuum motor complete f?r Ersatz 1200W D
9	4.490-269.0	Vacuum motor complete for replacement 12
9	4.490-265.0	Vacuum motor complete for replacement 10
10	6.649-755.0	Cable with capacitor 100/120V
10	6.650-121.0	Cable with capacitor DNA
11	5.365-324.0	Bearing motor height compensation
11	9.079-050.0	Уплотнитель двигателя
12	5.585-054.0	Floater
13	5.034-734.0	Retaining bracket
13	5.034-736.0	Retaining bracket cable
14	5.731-646.0	Filter cage
