Karcher (Керхер) Прибор детали (0.165-312.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

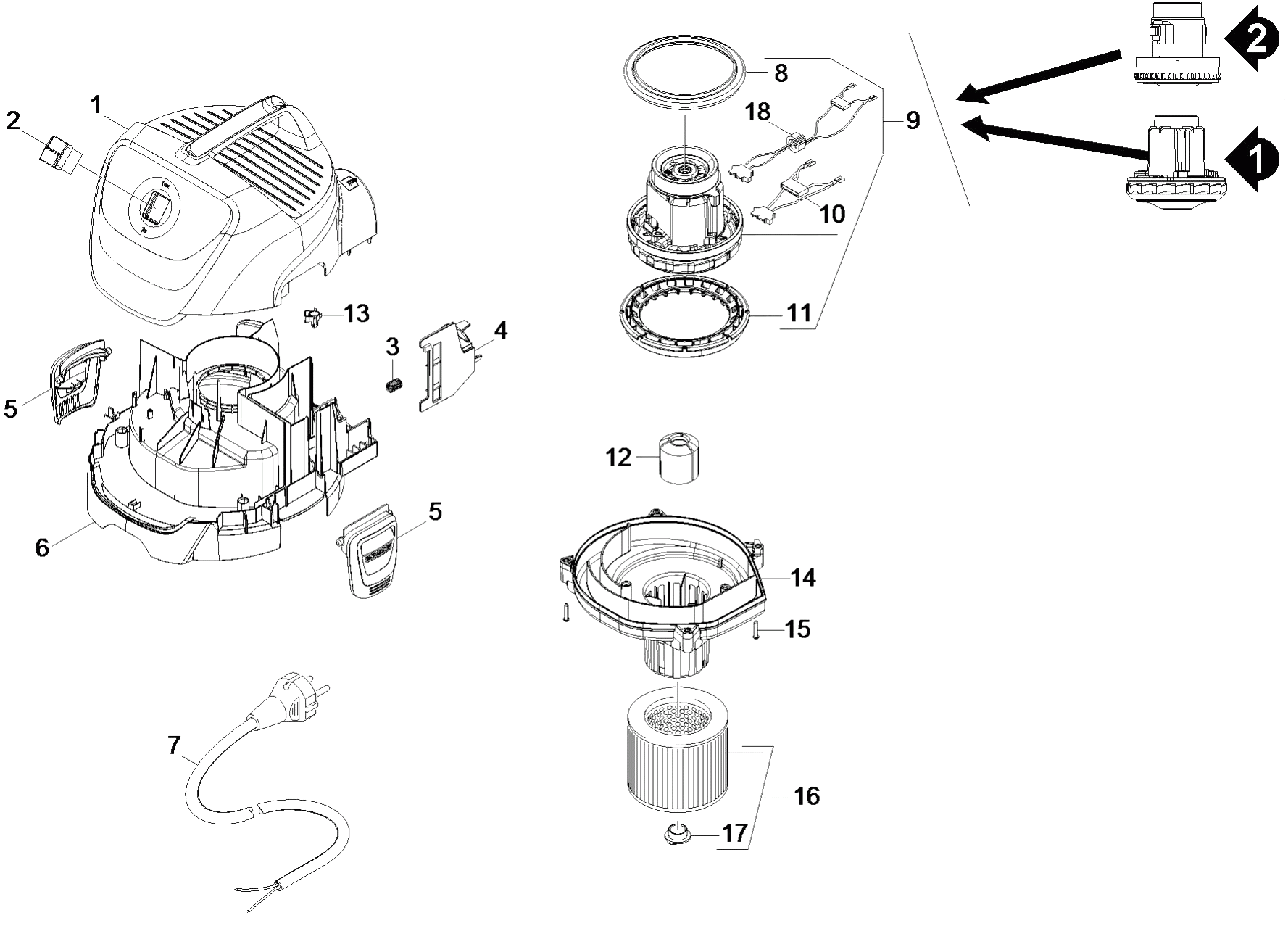

REF.	АРТИКУЛ	ОПИСАНИЕ
1	5.069-310.0	Cover WD 3.XXX neutral
2	6.630-087.0	Switch
3	5.332-997.0	Helical spring
4	5.640-363.0	Slider
5	5.075-037.0	Closure
6	6.649-148.0	Cable with plug *AU
6	5.053-183.0	Motor bracket
7	9.079-024.0	Уплотнитель
7	6.648-021.0	Cable with plug *GB
7	6.649-056.0	Cable with plug
7	6.650-092.0	Cable with plug H05 VV-F 2x0,75 *CH
7	9.084-161.0	Кабель с штепсель 2x16 AWG MX/ BR
7	6.648-186.0	Cable with plug *AR
7	6.649-148.0	Cable with plug *AU
8	4.490-268.0	Vacuum motor complete for replacement 10
8	4.490-266.0	Vacuum motor complete for replacement 10
8	4.490-265.0	Vacuum motor complete for replacement 10
9	9.079-050.0	Уплотнитель двигателя
9	5.365-324.0	Bearing motor height compensation
10	5.585-054.0	Floater
11	5.034-734.0	Retaining bracket
11	5.034-736.0	Retaining bracket cable
12	5.731-647.0	Filtering basket
13	7.303-096.0	Screw 4x22 -ST-10.9-R2R (IN6RD)
