Karcher (Керхер) Крышка детали (0.163-596.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

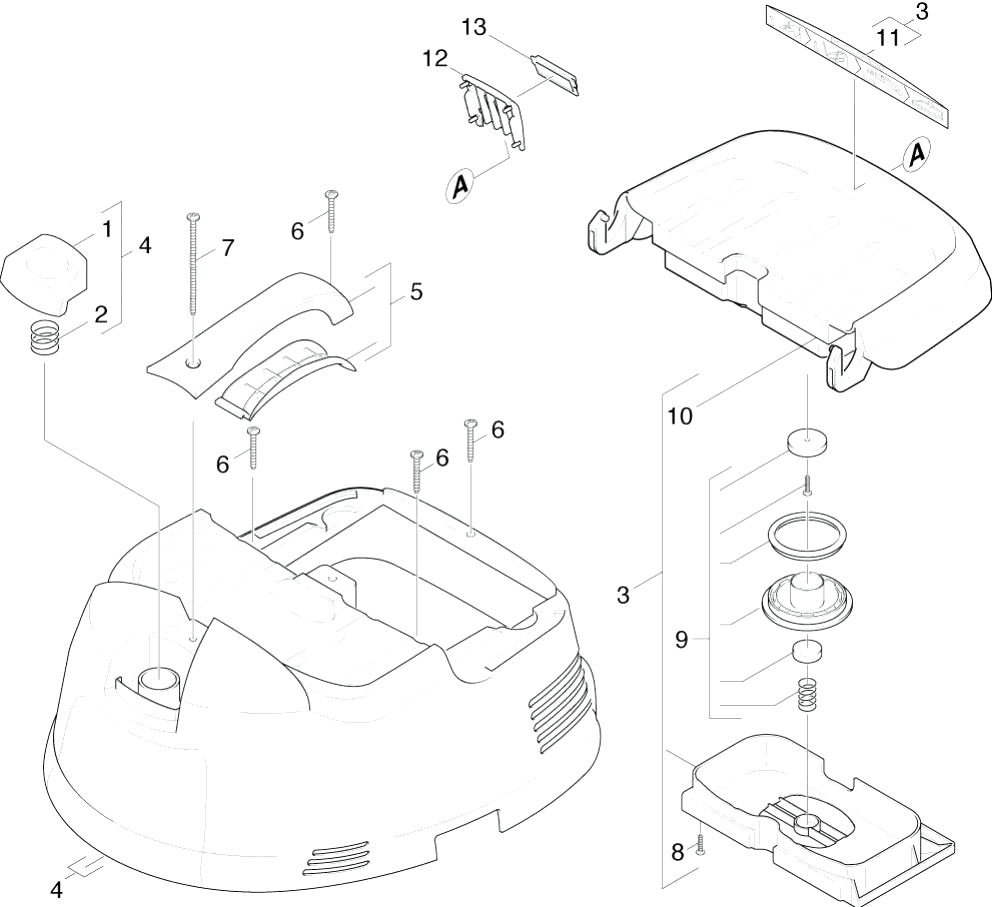

REF.	АРТИКУЛ	ОПИСАНИЕ
1	5.324-057.0	Pushbutton
2	5.332-490.0	Spring pushbutton
3	4.063-729.0	FILTER COVER kpl.
4	4.066-321.0	Cover complete NT 65/2 Eco
5	4.321-150.0	Handhold complete
6	7.303-154.0	Screw 5x50 -A2-70 (In6Rd)
7	7.303-155.0	Screw 5x100-A2-70 (IN6RD)
8	7.303-086.0	Screw 5x30 -10.9-R2R (K-In6Rd)
9	2.889-072.0	Spare part set PFC NT 65/2 Eco
10	5.063-997.0	Cover filter
11	5.384-885.0	Label
12	5.064-017.0	Cover backwashing
13	5.032-303.0	Slider
25	7.311-001.0	Hexagon nut M4 -8-A2E ISO 4032
26	7.312-001.0	Washer 4 -200HV-A3E ISO 7089
27	7.306-208.0	Screw M 4x16-A2-70 (IN6RD)
29	7.312-029.0	Washer 10-CuZn-E2E ISO 7090
30	7.311-006.0	Hexagon nut M10 -8-A3E ISO 4032
31	7.306-094.0	Screw M6x25 -8.8-R3R (In6Rd)
32	7.311-571.0	Square nut M6 -05-A2E DIN 557
33	5.030-993.0	Washer
34	7.312-003.0	Washer 6 -200HV-A3E ISO 7090
35	7.311-003.0	Hexagon nut M6 -8-A2E ISO 4032
37	5.122-084.0	Flange
38	5.332-493.0	Rubber buffer
39	7.306-129.0	Screw M6x40 -8.8-R3R (In6Rd)
40	7.312-276.0	Washer 6 -200HV-A2E ISO7093-1
42	7.312-033.0	Washer 6-CuZn-E2E ISO7090
