Karcher (Керхер) Крышка детали (0.166-630.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

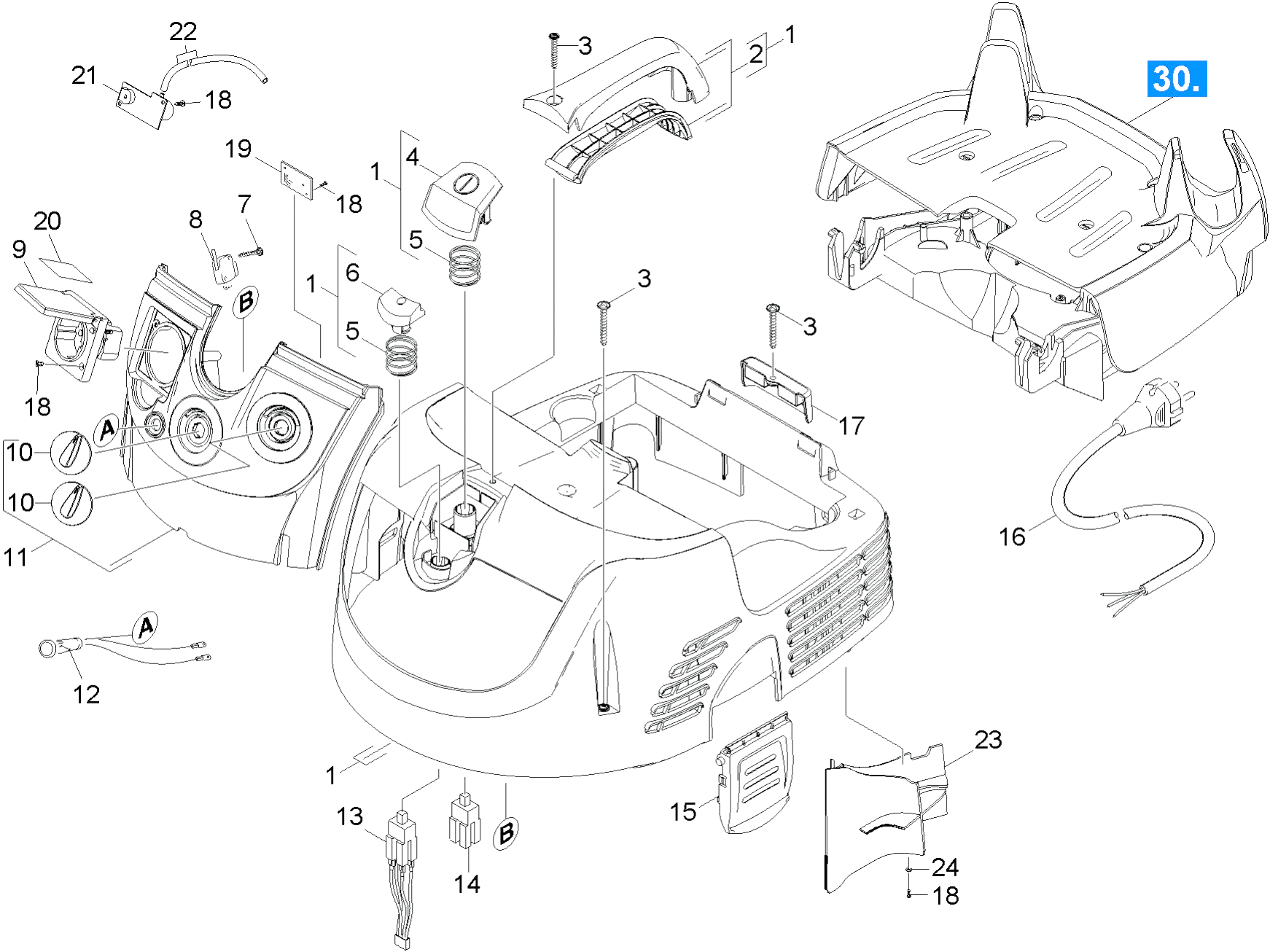

REF.	АРТИКУЛ	ОПИСАНИЕ
1	4.066-366.0	Cover complete only for replacement TE +
2	4.321-213.0	Handhold complete only for replacement
3	7.303-086.0	Screw 5x30 -10.9-R2R (K-In6Rd)
4	5.324-124.0	Pushbutton on/off RAL 1018
5	5.332-934.0	Spring Pushbutton on/off
6	4.324-032.0	Pushbutton complete only for replacement
7	7.303-205.0	Screw 4x16-St-10.9-R2R (In6Rd)
8	6.630-135.0	Micro switch
9	6.646-432.0	Plug socket *EUROPA
10	5.321-838.0	Turning knob
11	4.841-171.0	Control panel only for replacement TE
12	6.651-433.0	Pilot lamp green
13	6.630-416.0	Switch with LED
14	6.630-437.0	Switch on/off
15	5.033-256.0	Strap closure
16	6.649-385.0	Power cable 7,5m Gummi *EU
17	5.033-744.0	Covering cap
18	7.303-092.0	Screw 3x12 -10.9-R2R (K-In6Rd)
19	4.682-098.0	Circuit board speed control only for rep
20	5.383-840.0	Label 2200 W
21	4.682-099.0	Circuit board hose selector switch only
22	6.391-700.0	Hose ? 3 x 1,35 410mm
23	5.033-122.0	"""Moulded part blow-out ripped """"M"""" """
24	7.312-001.0	Washer 4 -200HV-A3E ISO 7089
