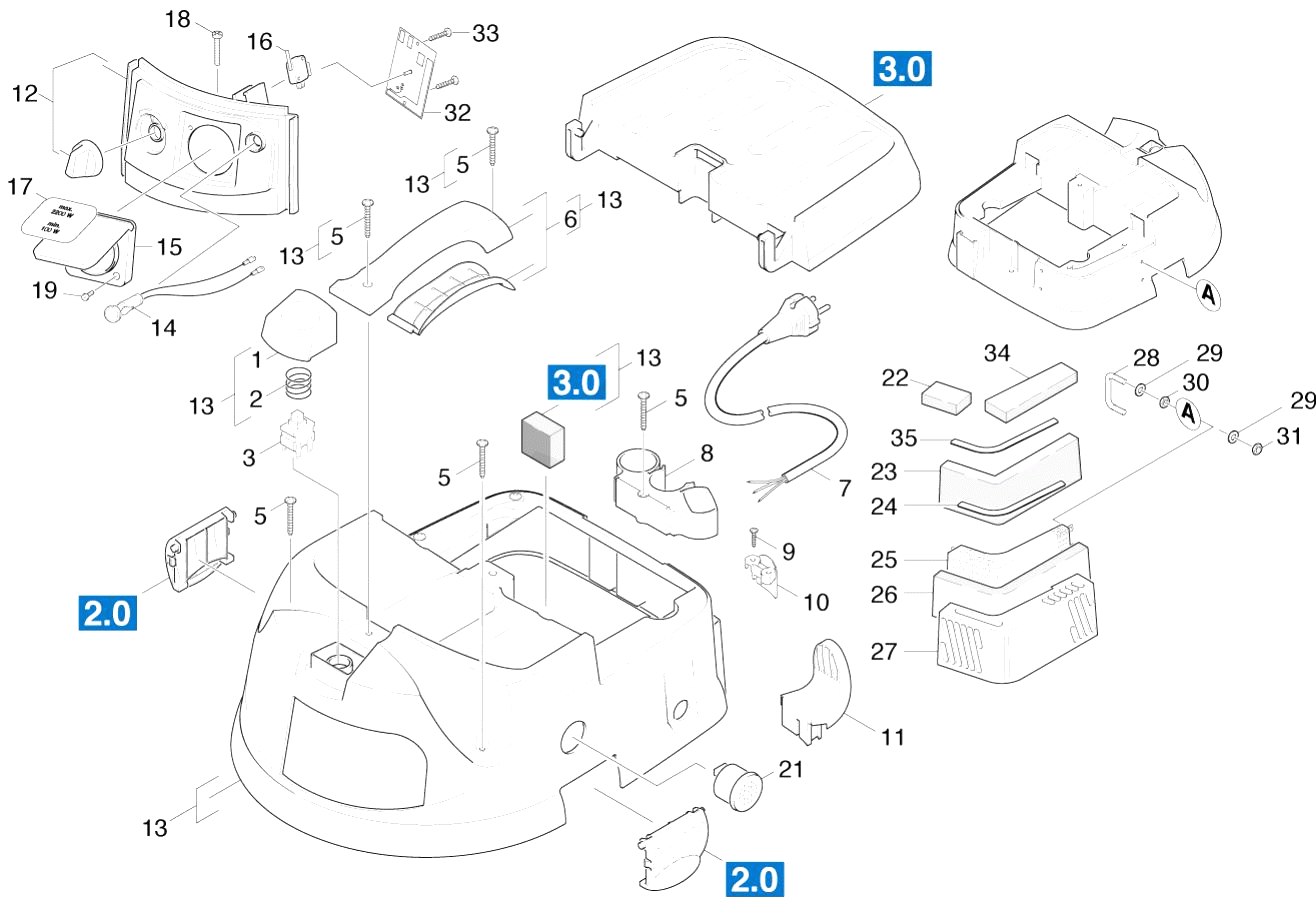

Karcher (Керхер) Крышка детали (0.163-200.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

REF.	АРТИКУЛ	ОПИСАНИЕ
1	5.324-040.0	Pushbutton
2	5.332-457.0	Spring switch
3	6.630-032.0	Switch
5	7.303-154.0	Screw 5x50 -A2-70 (In6Rd)
6	4.321-122.0	Handhold complete
7	6.649-385.0	Power cable 7,5m Gummi *EU
8	5.031-603.0	Holder accessories
9	7.303-205.0	Screw 4x16-St-10.9-R2R (In6Rd)
10	5.031-981.0	Strain relief ISS 55-S WUERTH
11	5.044-224.0	Holder cable
12	4.841-122.0	Control panel complete M / H
13	4.066-306.0	Cover complete
14	6.651-433.0	Pilot lamp green
15	6.646-432.0	Plug socket *EUROPA
15	6.646-433.0	Plug socket *CH
16	6.630-135.0	Micro switch
17	5.383-840.0	Label 2200 W
18	7.303-086.0	Screw 5x30 -10.9-R2R (K-In6Rd)
19	6.303-318.0	Screw 3,5x12-10.9-R2R (IN6RD)
21	7.312-001.0	Washer 4 -200HV-A3E ISO 7089
21	6.424-020.0	Signal transmitter B/P 228
22	7.312-030.0	Washer 3-CuZn-E2E ISO7089
22	6.286-400.0	Insulating mat
23	7.306-203.0	Screw M 3X 8-A2-70 (IN6RD)
23	6.286-398.0	Insulating mat
24	6.630-230.0	Magnet limit switch
24	6.368-340.0	Edge protection
25	6.389-930.0	Hose stem
25	5.049-689.0	Sheet metal component
26	6.363-185.0	Joint ring
26	6.286-397.0	Insulating mat
27	5.031-210.0	Cap
27	5.049-690.0	Sheet metal component
28	6.600-106.0	Magnet D10X10
28	5.034-676.0	Retaining bracket
29	5.332-355.0	Pressure spring
29	7.312-293.0	Washer 4-A2 ISO 7093-1
30	7.311-064.0	Hexagon nut M 4-A2-70 ISO 4032
31	5.363-581.0	Form seal air-drive vacuum cleaner
31	7.311-516.0	Hexagon nut M 4-A2-70 ISO 10511
32	5.411-164.0	Screw plug
32	6.682-562.0	Circuit board
33	5.587-206.0	Valve housing
33	7.303-092.0	Screw 3x12 -10.9-R2R (K-In6Rd)
34	6.389-844.0	"""Hose coupling G1/4"""" """
34	6.286-399.0	Insulating mat covering cap above
35	7.312-234.0	Serrated lock washer A3,2 -FSt-A3E DIN6
35	6.368-338.0	Edge protection
