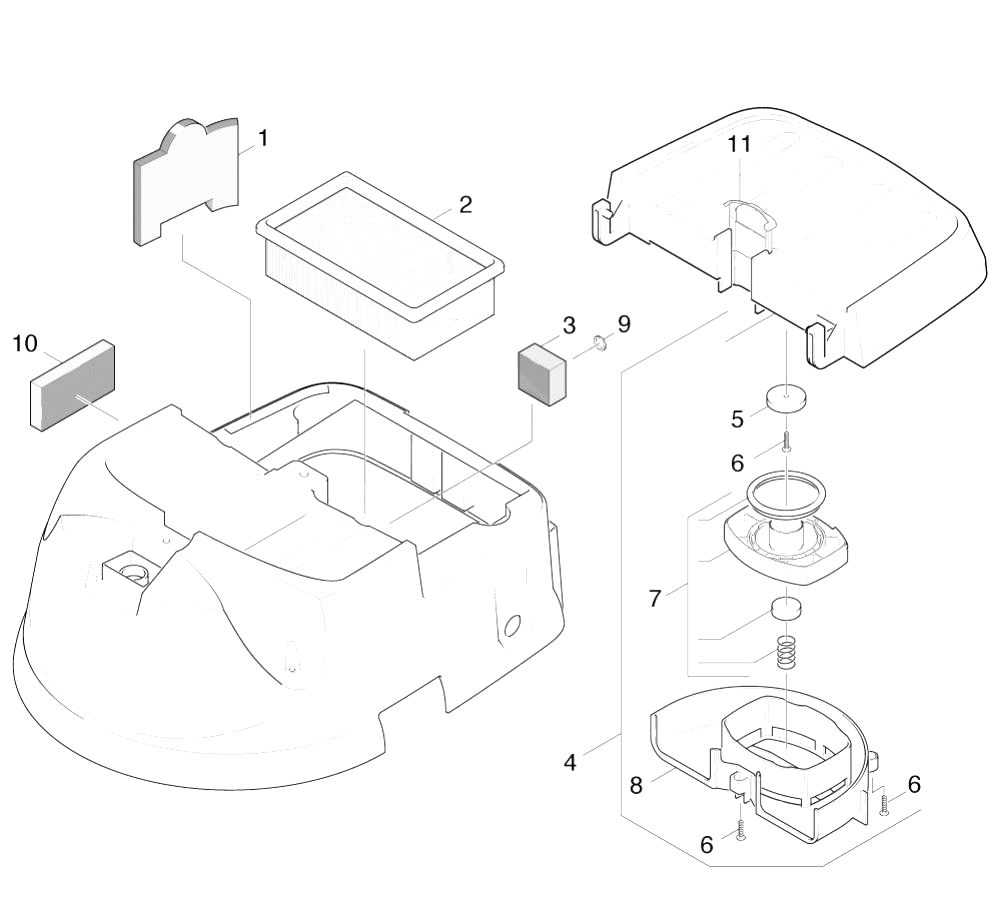

Karcher (Керхер) Фильтр (0.163-341.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

REF.	АРТИКУЛ	ОПИСАНИЕ
1	6.904-215.0	Filter working air 3St. Kae
2	6.904-367.0	Flat filter only for replacement Kaerche
3	6.630-032.0	Switch
3	6.630-437.0	Switch on/off
3	6.904-191.0	Filter cooling air outlet
4	4.063-677.0	Cover filter turbine 1100W
5	7.303-154.0	Screw 5x50 -A2-70 (In6Rd)
5	5.115-840.0	Washer Gegenmagnet
6	4.321-122.0	Handhold complete
6	7.303-129.0	Screw 4x16 -10.9-R2R (K-In6Rd)
7	6.649-385.0	Power cable 7,5m Gummi *EU
7	6.649-399.0	Cable with plug *GB
7	6.649-393.0	Cable with plug *CH
7	6.648-727.0	Cable with plug *AU
8	5.006-043.0	Plate
8	5.031-603.0	Holder accessories
9	6.343-139.0	Lock washer
9	7.303-205.0	Screw 4x16-St-10.9-R2R (In6Rd)
10	6.904-204.0	Filter cooling air input
10	5.031-981.0	Strain relief ISS 55-S WUERTH
11	5.031-899.0	Slider PFC
11	5.044-224.0	Holder cable
12	5.841-376.0	Control panel
13	4.066-360.0	Cover complete Eco TE
14	6.651-433.0	Pilot lamp green
