Karcher (Керхер) Крышка (0.165-800.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

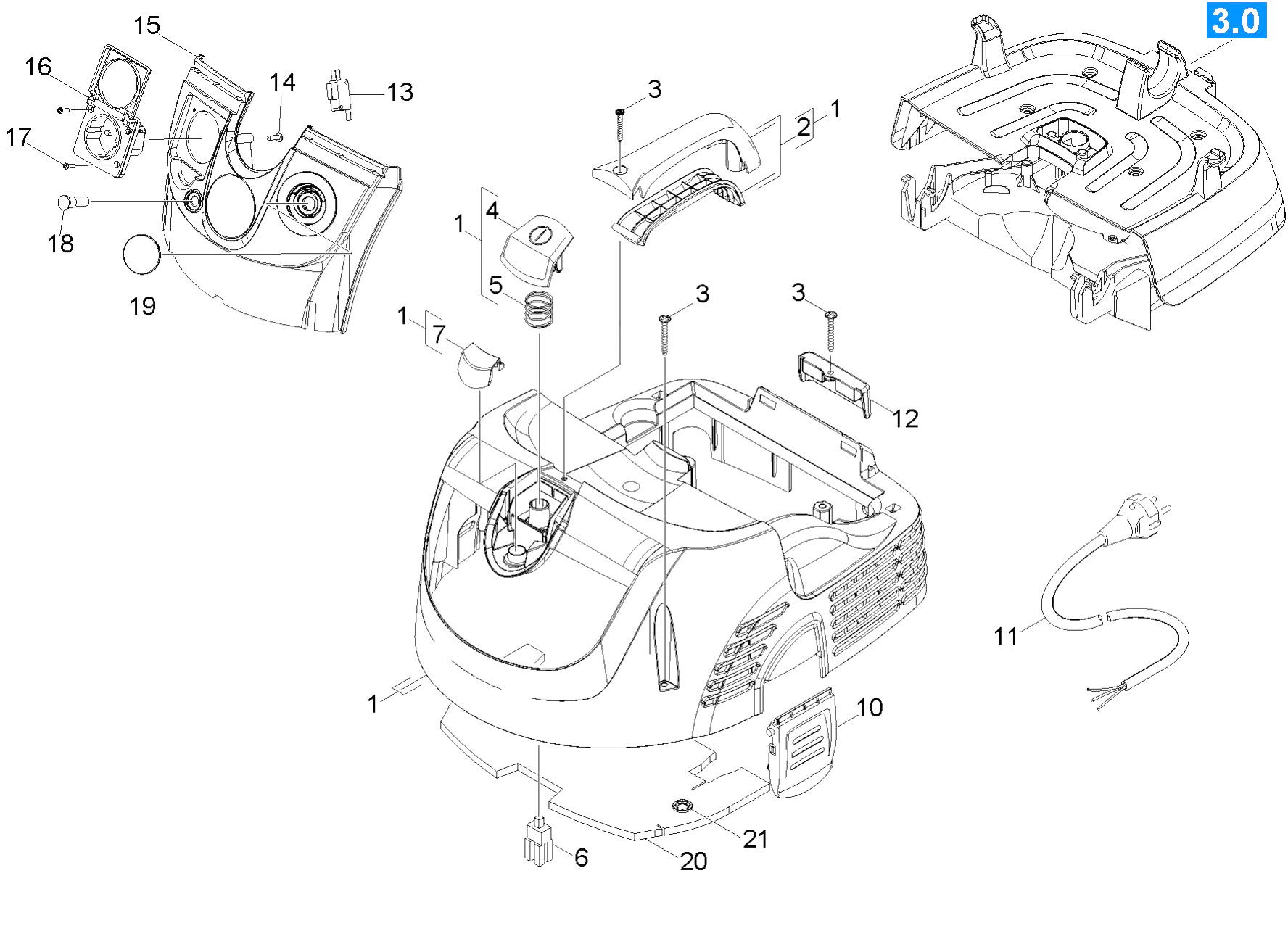

REF.	АРТИКУЛ	ОПИСАНИЕ
1	4.066-401.0	Cover complete NT 25/1 Ap Te
2	4.321-213.0	Handhold complete only for replacement
3	7.303-086.0	Screw 5x30 -10.9-R2R (K-In6Rd)
4	5.324-124.0	Pushbutton on/off RAL 1018
5	5.332-934.0	Spring Pushbutton on/off
6	6.630-437.0	Switch on/off
7	4.324-032.0	Pushbutton complete only for replacement
7	5.324-149.0	Pushbutton closed
9	6.630-416.0	Switch with LED
10	5.034-858.0	Retaining bracket
10	5.033-256.0	Strap closure
11	6.649-531.0	Power cable 7,5M Gummi *EU
12	5.033-744.0	Covering cap
12	6.373-815.0	Holder Toolflex
13	6.630-135.0	Micro switch
14	7.303-205.0	Screw 4x16-St-10.9-R2R (In6Rd)
15	7.311-065.0	Hexagon nut M 5-A2-70 ISO 4032
15	6.649-385.0	Power cable 7,5m Gummi *EU
16	7.306-182.0	Pan head screw M5x16 -A2-70 ISO 14583
16	6.646-432.0	Plug socket *EUROPA
17	7.312-052.0	Washer 5 -A2 ISO 7089
17	7.303-092.0	Screw 3x12 -10.9-R2R (K-In6Rd)
18	6.651-433.0	Pilot lamp green
19	5.412-016.0	Closure cap
20	6.286-512.0	Insulating mat cover
21	6.343-149.0	Quick-fastener
