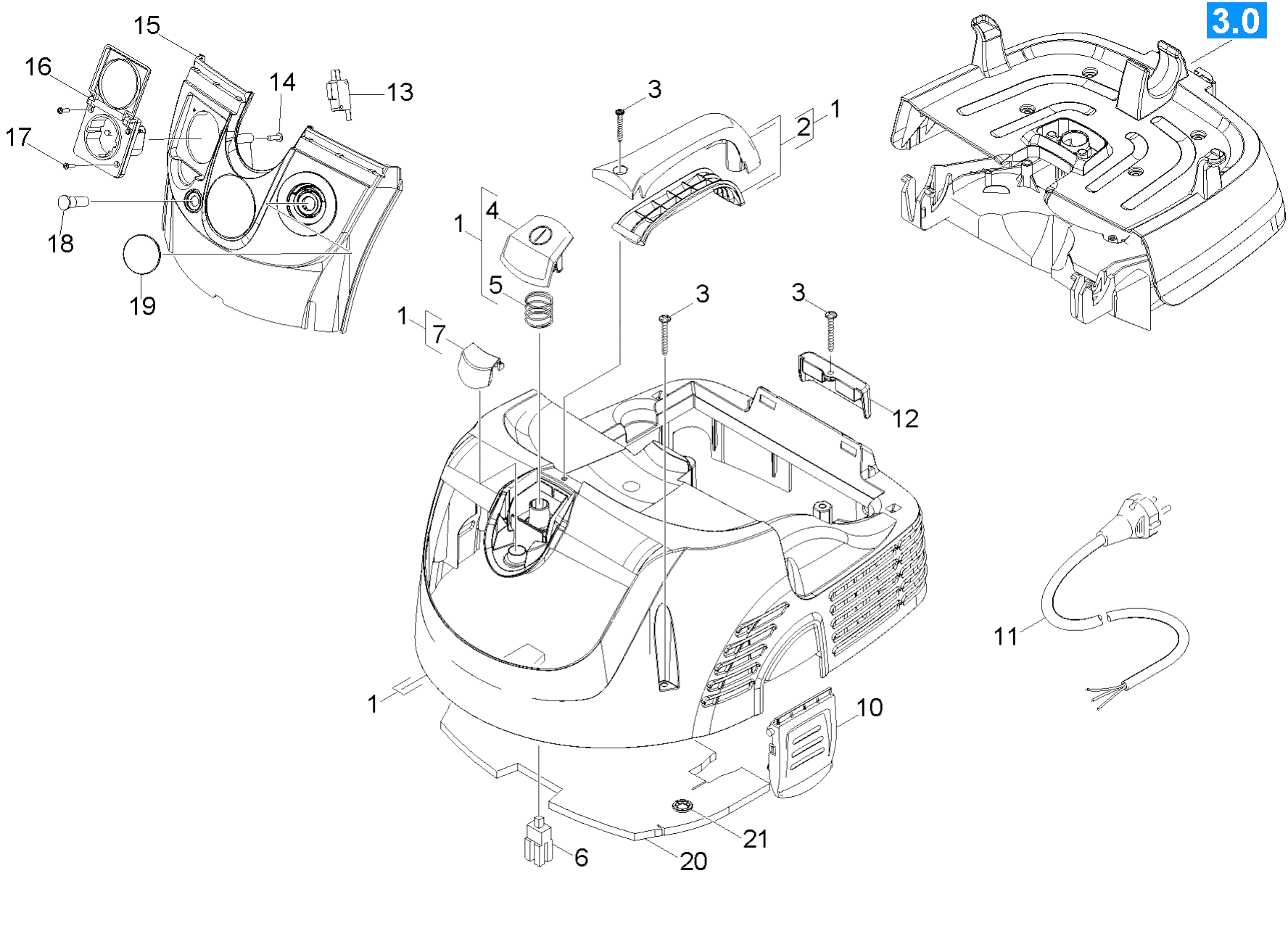

Karcher (Керхер) Крышка (0.165-800.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

REF.	АРТИКУЛ	ОПИСАНИЕ
1	4.066-401.0	Cover complete NT 25/1 Ap Te
2	4.321-213.0	Handhold complete only for replacement
3	6.903-294.0	Joint closure
3	7.303-086.0	Screw 5x30 -10.9-R2R (K-In6Rd)
4	6.903-292.0	Locking hook
4	5.324-124.0	Pushbutton on/off RAL 1018
5	6.903-297.0	Flange
5	5.332-934.0	Spring Pushbutton on/off
6	6.903-355.0	Holder closure
6	6.630-437.0	Switch on/off
7	6.906-106.0	Filter bags NT 301
7	5.324-149.0	Pushbutton closed
8	6.310-052.0	Knurled nut
9	6.903-258.0	Double castor
10	5.033-256.0	Strap closure
11	7.303-128.0	Countersunk screw 5x20 -10.9-R2R (In6Rd
12	5.033-744.0	Covering cap
12	4.440-262.0	Suction hose DN 35
13	6.630-135.0	Micro switch
13	5.114-105.0	Ring
14	7.303-205.0	Screw 4x16-St-10.9-R2R (In6Rd)
14	6.903-296.0	Connecting nipple
15	6.649-385.0	Power cable 7,5m Gummi *EU
15	6.903-284.0	Floor tool DN35
16	6.646-432.0	Plug socket *EUROPA
16	6.906-240.0	Crevice nozzle DN35
17	7.303-092.0	Screw 3x12 -10.9-R2R (K-In6Rd)
17	6.900-514.0	Suction tube DN35
18	6.651-433.0	Pilot lamp green
18	6.900-519.0	Elbow DN35 STAHL
19	5.412-016.0	Closure cap
19	6.906-511.0	Combination nozzle DN35
20	6.286-512.0	Insulating mat cover
20	4.515-342.0	Roller complete with axle
21	6.343-149.0	Quick-fastener
22	6.903-278.0	Brush strips set
23	6.903-277.0	Set suction lips
