Karcher (Керхер) Крышка (0.165-536.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

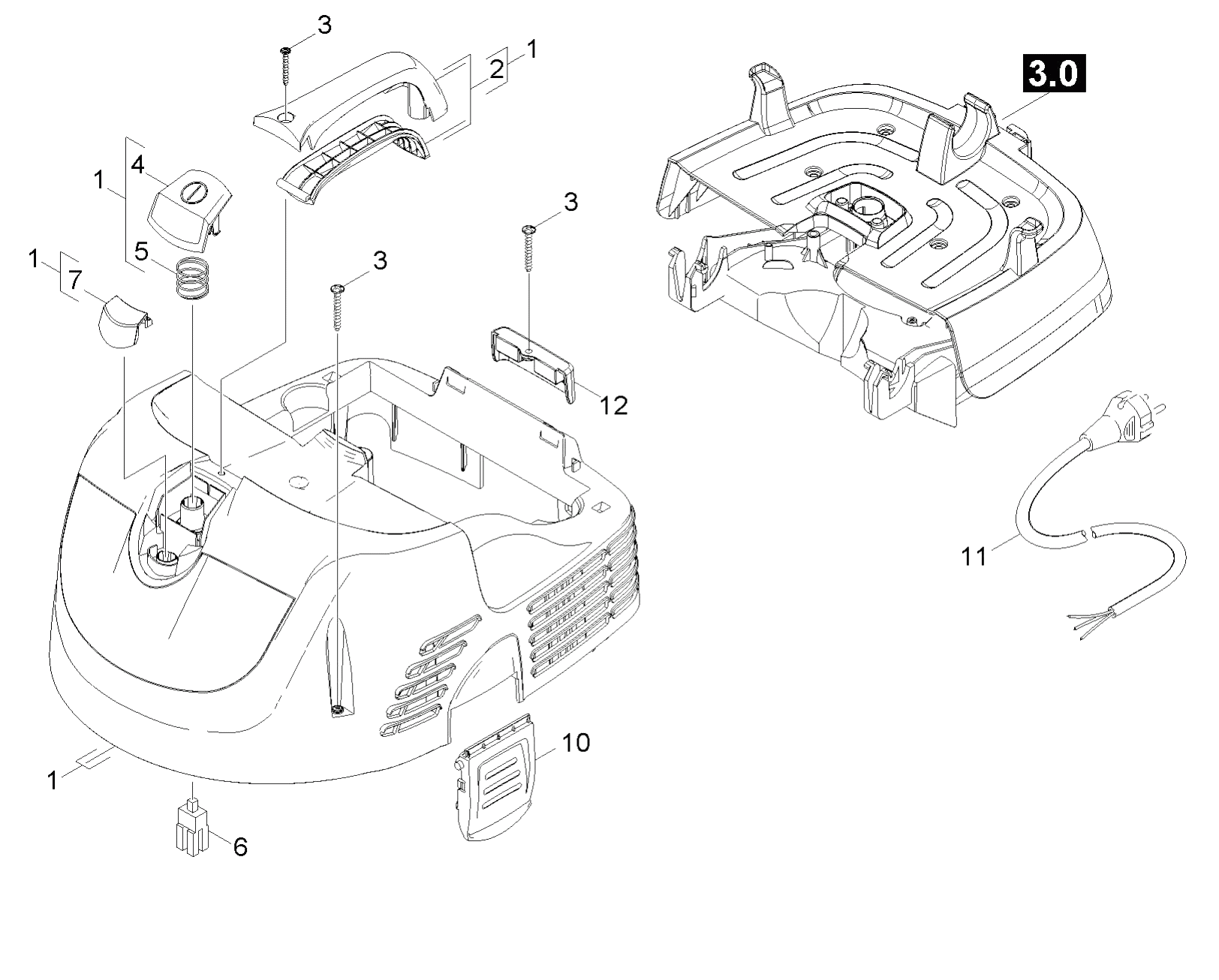

REF.	АРТИКУЛ	ОПИСАНИЕ
1	4.066-399.0	Cover complete only for replacement NT 2
1	5.324-140.0	Pushbutton yellow
2	4.321-213.0	Handhold complete only for replacement
3	5.032-363.0	Strain relief
3	5.032-478.0	Strain relief
3	7.303-086.0	Screw 5x30 -10.9-R2R (K-In6Rd)
4	6.647-264.0	Power cable 7,5m PVC *GB
4	5.324-124.0	Pushbutton on/off RAL 1018
4	6.647-263.0	Power cable 7,5m PVC *EU
4	6.647-265.0	Power cable 7,5m PVC *CH
4	6.648-233.0	Cable with plug *RA
4	6.648-370.0	Cable with plug
4	6.647-266.0	Power cable 7,5m PVC *AUS
5	5.332-934.0	Spring Pushbutton on/off
6	6.630-437.0	Switch on/off
7	5.324-149.0	Pushbutton closed
7	5.332-457.0	Spring switch
8	5.032-433.0	Moulded part
9	5.321-711.0	Handhold
10	5.033-256.0	Strap closure
10	7.303-084.0	Screw 4x25 -10.9-R2R (K-In6Rd)
11	6.647-263.0	Power cable 7,5m PVC *EU
11	5.069-006.0	Cover
12	5.033-744.0	Covering cap
12	6.286-433.0	Sound insulation set
13	6.614-005.0	Ferrite ring
