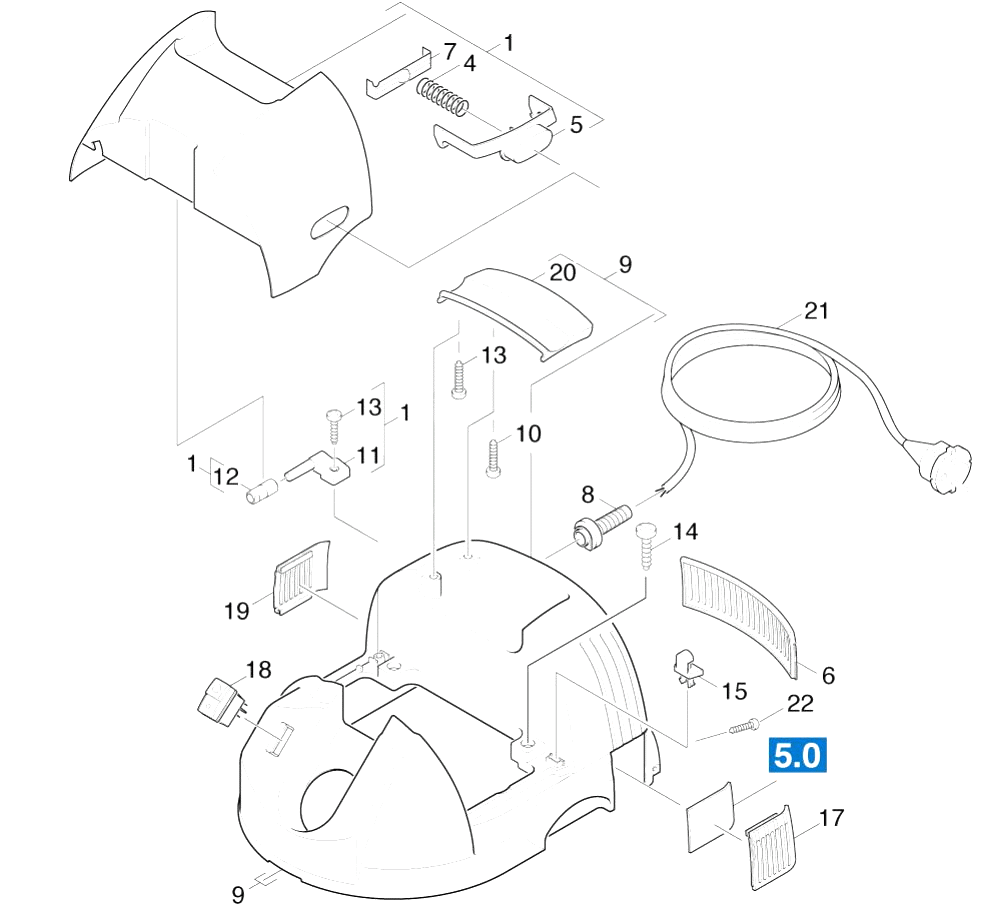

Karcher (Керхер) Крышка детали (0.162-570.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

REF.	АРТИКУЛ	ОПИСАНИЕ
1	6.959-333.0	Cover complete black
4	6.959-250.0	Pressure spring
6	6.959-335.0	Grate exhaust air
7	6.959-274.0	Sheet metal component locking part
8	5.820-070.0	Cable bushing 6-8,5mm
9	6.959-380.0	Cover complete
10	6.303-023.0	Oval head screw steel zinc-plated 3,5X13
11	9.412-129.0	Moulded part bolt
12	9.411-054.0	Sleeve black
13	7.303-084.0	Screw 4x25 -10.9-R2R (K-In6Rd)
14	7.303-086.0	Screw 5x30 -10.9-R2R (K-In6Rd)
15	6.959-216.0	Hook
17	6.959-337.0	Grate exhaust air
18	6.959-375.0	Поворотный переключатель
18	6.962-194.0	Switch turbine
18	6.959-340.0	Выключатель комплектный
19	6.959-338.0	Intake grating
20	6.959-369.0	Рукоятка черная
21	6.647-858.0	Cable with plug
21	6.959-349.0	Cable with plug *EU
21	6.647-933.0	Cable with plug *GB CET 5,5M 3X1,5
21	6.648-224.0	Cable with plug
21	6.959-341.0	Кабель с штепсель
22	7.305-023.0	Countersunk screw M4x16 -4.8-A2E ISO 20
23	6.959-181.0	Handhold switch
24	5.122-131.0	Flange
26	6.646-165.0	Plug socket
26	6.646-193.0	Plug socket
27	6.646-164.0	Cover frame
28	7.303-026.0	Screw 4x16 -A2-70 (In6Rd)
29	7.303-126.0	Countersunk screw 4x20 -10.9-R2R (In6Rd
30	6.959-277.0	Cable conduit
