Karcher (Керхер) Крышка детали (0.164-993.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

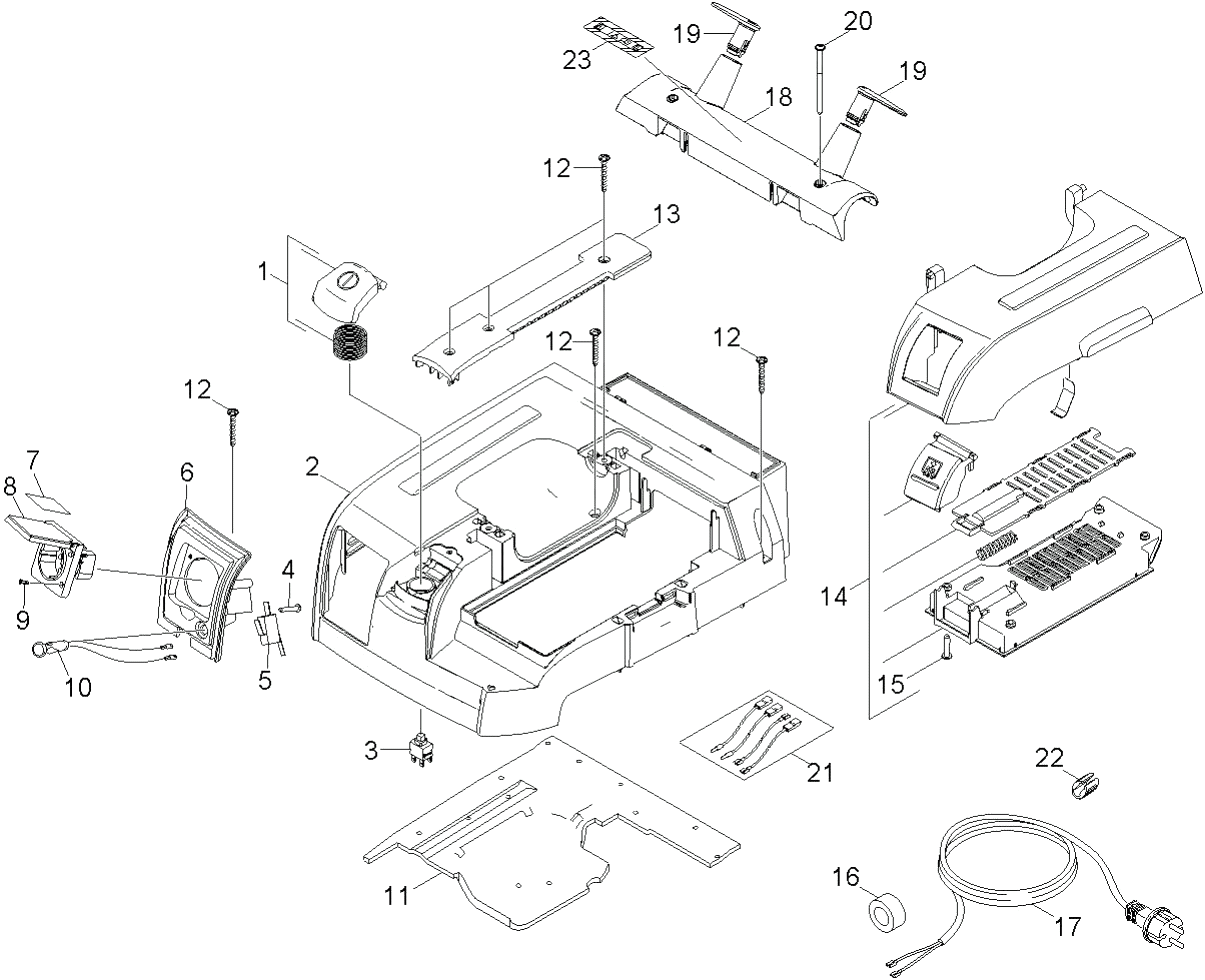

REF.	АРТИКУЛ	ОПИСАНИЕ
1	4.324-026.0	Pushbutton complete
2	5.069-267.0	Cover Te
3	6.630-437.0	Switch on/off
4	7.303-084.0	Screw 4x25 -10.9-R2R (K-In6Rd)
5	6.630-135.0	Micro switch
6	5.841-507.0	Control panel Te
7	5.390-840.0	Label (100-1100W)
7	5.390-839.0	Табличка (100-1800W)
7	5.383-840.0	Label 2200 W
8	6.646-433.0	Plug socket *CH
8	6.646-435.0	Plug socket *GB
8	6.646-432.0	Plug socket *EUROPA
9	7.303-206.0	Screw 3,5x16 -10.9-A2E (In6Rd)
10	6.651-433.0	Pilot lamp green
11	9.412-129.0	Moulded part bolt
11	6.286-566.0	Insulating mat set only for replacement
12	9.411-054.0	Sleeve black
12	7.303-086.0	Screw 5x30 -10.9-R2R (K-In6Rd)
13	5.321-929.0	Handhold cover
13	7.303-084.0	Screw 4x25 -10.9-R2R (K-In6Rd)
14	4.730-149.0	Filter dedusting complete
14	7.303-086.0	Screw 5x30 -10.9-R2R (K-In6Rd)
15	6.303-200.0	Screw 5x25-IN6RD
15	6.959-216.0	Hook
16	6.346-043.0	Ferrite ring
17	6.649-819.0	Power cable 7,5m PVC
17	6.959-337.0	Grate exhaust air
17	6.649-677.0	Power cable 7,5m Gummi *EU
17	6.649-777.0	Power cable 7,5m Gummi *CH
17	6.649-778.0	Power cable 7,5m Gummi *GB
18	5.044-909.0	Holder
18	6.959-340.0	Выключатель комплектный
18	6.962-194.0	Switch turbine
19	5.044-661.0	Catch for cable
19	6.959-338.0	Intake grating
20	7.303-171.0	Screw 5x80 -10.9-R2R (K-In6Rd)
20	6.959-369.0	Рукоятка черная
21	4.839-419.0	Electrical small parts Te
21	6.648-224.0	Cable with plug
21	6.959-349.0	Cable with plug *EU
21	6.647-858.0	Cable with plug
21	6.959-341.0	Кабель с штепсель
21	6.649-145.0	Cable with plug *AU
21	4.839-403.0	Electrical small parts TE
22	6.647-681.0	Cable clip
22	7.305-023.0	Countersunk screw M4x16 -4.8-A2E ISO 20
23	5.392-837.0	Label L-Aufkleber
