Karcher (Керхер) Крышка детали (0.166-328.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

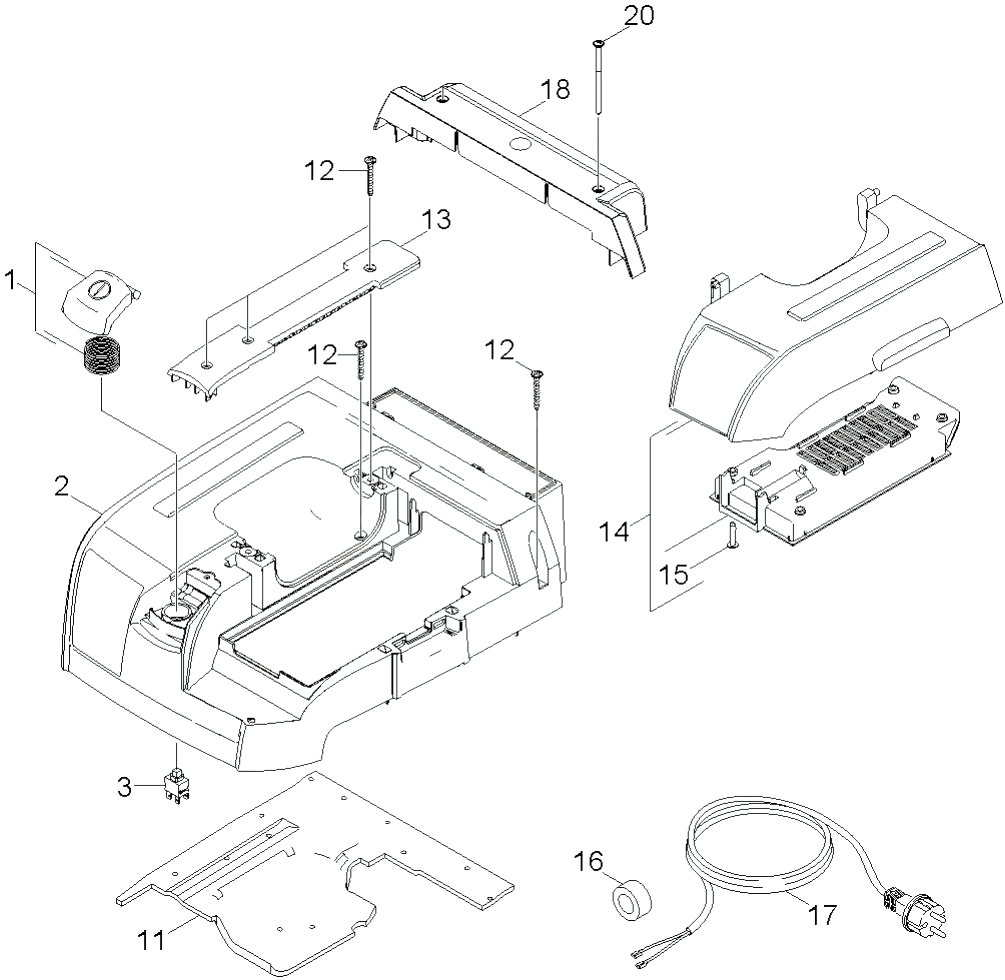

REF.	АРТИКУЛ	ОПИСАНИЕ
1	4.324-026.0	Pushbutton complete
2	5.069-266.0	Cover Eco
3	5.031-703.0	Tension ring C35
3	6.630-437.0	Switch on/off
4	2.639-690.0	Repair set
5	5.443-464.0	Hosebarb
6	5.031-718.0	Elbow
7	6.906-240.0	Crevice nozzle DN35
8	6.903-284.0	Floor tool DN35
9	4.515-342.0	Roller complete with axle
11	6.286-566.0	Insulating mat set only for replacement
11	6.903-278.0	Brush strips set
12	7.303-086.0	Screw 5x30 -10.9-R2R (K-In6Rd)
12	6.903-277.0	Set suction lips
13	5.321-929.0	Handhold cover
13	6.902-152.0	Suction tube
14	4.730-149.0	Filter dedusting complete
14	4.730-150.0	Cover filter complete nur fuer Ersatz
14	6.904-407.0	Filter bags fleece 5 Stk. Kaercher
15	6.303-200.0	Screw 5x25-IN6RD
16	6.346-043.0	Ferrite ring
16	6.904-406.0	Paper filtering bag Kaercher 10 Stk.
17	6.649-677.0	Power cable 7,5m Gummi *EU
17	6.649-676.0	Power cable 7,5m PVC *EU
17	4.060-420.0	Housing module C35
18	5.044-909.0	Holder
18	5.064-370.0	Кожух держатель принадлежности
18	4.324-015.0	Pushbutton module complete
19	5.044-661.0	Catch for cable
20	7.303-171.0	Screw 5x80 -10.9-R2R (K-In6Rd)
21	4.839-403.0	Electrical small parts TE
22	6.647-681.0	Cable clip
