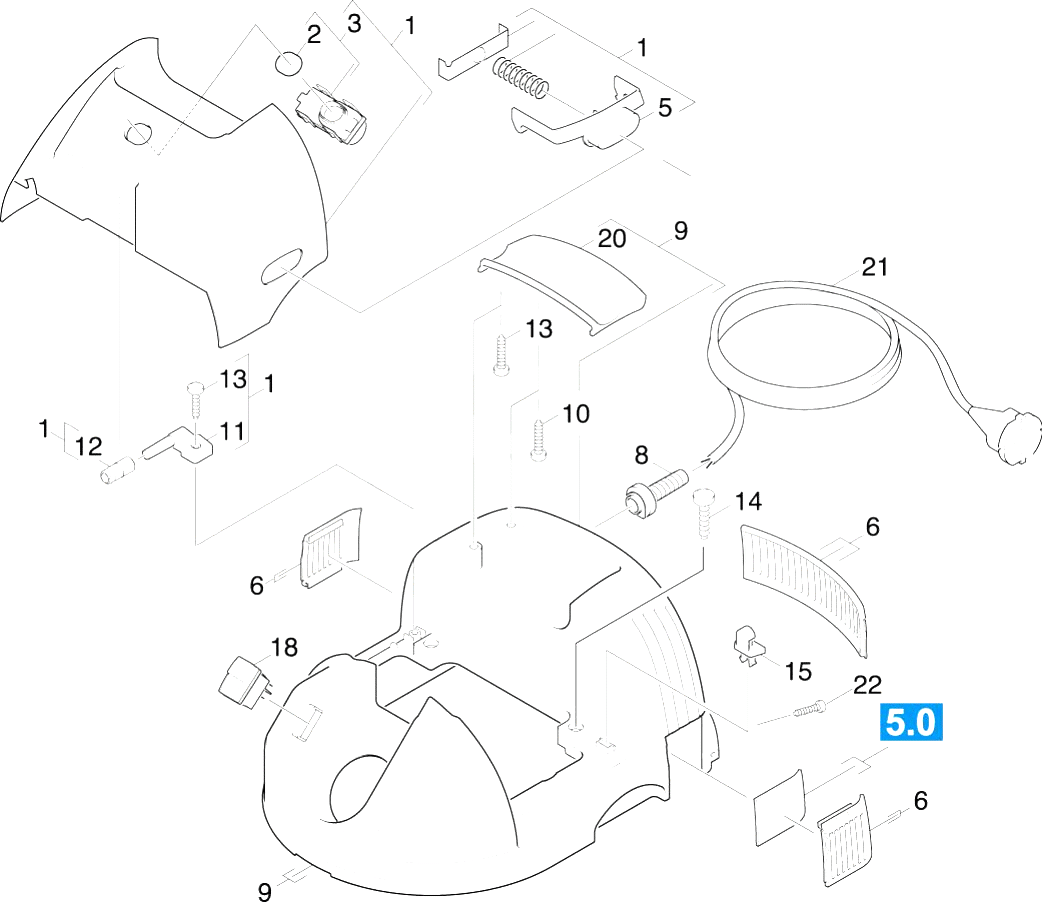

Karcher (Керхер) Крышка детали (0.162-364.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

REF.	АРТИКУЛ	ОПИСАНИЕ
1	9.418-312.0	Кожух в сборе
2	6.959-211.0	Seal
3	6.959-212.0	Filter pilot complete
5	6.959-364.0	Locking part black
6	2.884-286.0	Spare parts set air exhaust louver
8	5.820-070.0	Cable bushing 6-8,5mm
10	6.303-023.0	Oval head screw steel zinc-plated 3,5X13
11	9.412-129.0	Moulded part bolt
12	9.411-054.0	Sleeve black
13	7.303-084.0	Screw 4x25 -10.9-R2R (K-In6Rd)
14	7.303-086.0	Screw 5x30 -10.9-R2R (K-In6Rd)
15	6.959-216.0	Hook
18	6.962-194.0	Switch turbine
18	6.631-804.0	Rotary switch
18	6.959-375.0	Поворотный переключатель
20	6.959-369.0	Рукоятка черная
21	6.959-244.0	Cable with plug *CH
21	6.959-246.0	Cable with plug *GB
21	6.649-145.0	Cable with plug *AU
21	6.959-243.0	Cable with plug *EU
21	6.647-933.0	Cable with plug *GB CET 5,5M 3X1,5
21	6.647-855.0	Cable with plug *AUS CET 5,5M
21	6.647-853.0	Cable with plug *EU CET 5,5M
22	7.305-023.0	Countersunk screw M4x16 -4.8-A2E ISO 20
23	6.959-181.0	Handhold switch
24	5.122-131.0	Flange
26	6.646-166.0	Plug socket
26	6.646-193.0	Plug socket
26	6.646-165.0	Plug socket
26	6.646-201.0	Plug socket
27	6.646-164.0	Cover frame
28	7.303-026.0	Screw 4x16 -A2-70 (In6Rd)
29	7.303-126.0	Countersunk screw 4x20 -10.9-R2R (In6Rd
30	6.959-277.0	Cable conduit
31	5.382-674.0	Табличка 50-2400W
31	5.382-581.0	Label 100-1100W
32	6.631-768.0	Binder handhold
33	7.306-050.0	Screw M2,5x10 -8.8-R2R (In6Rd)
