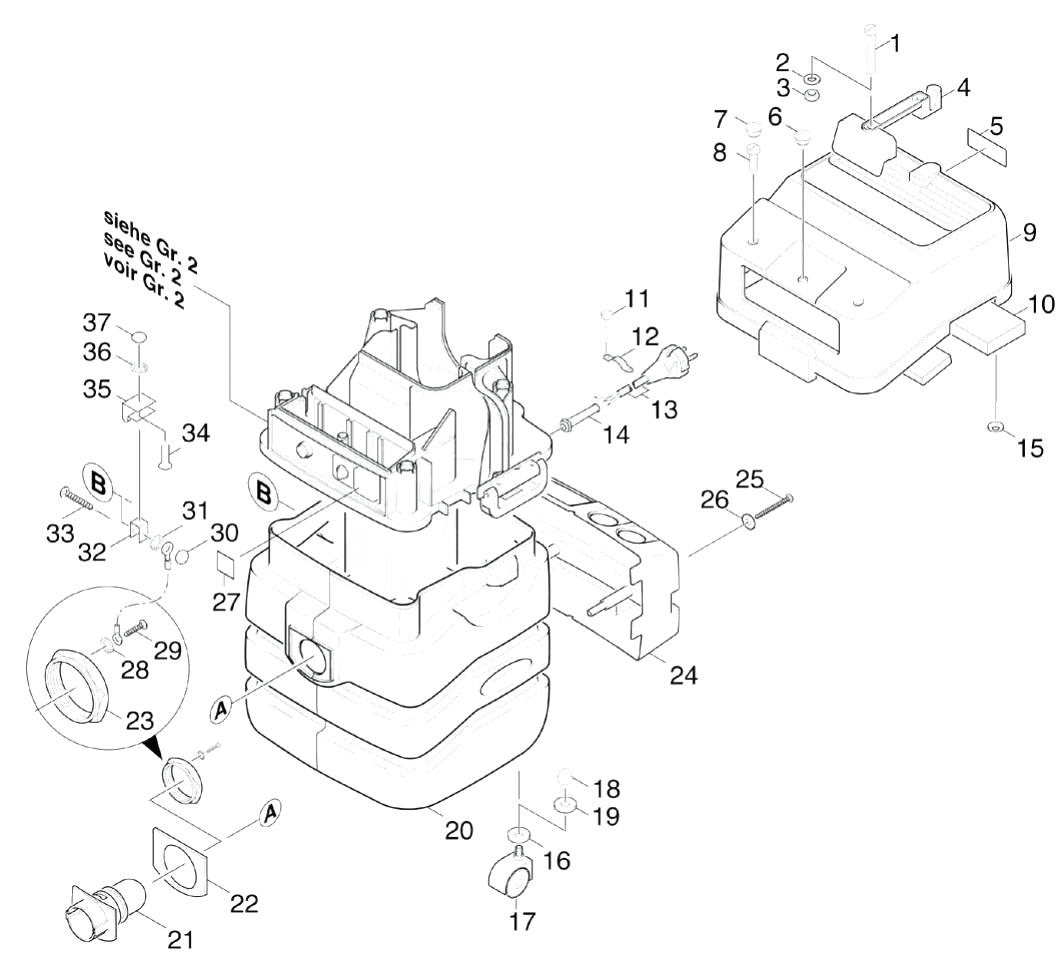

Karcher (Керхер) Корпус наружная деталь (0.162-646.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

REF.	АРТИКУЛ	ОПИСАНИЕ
1	7.306-138.0	Screw M6x60 -8.8-R3R (In6Rd)
2	7.312-276.0	Washer 6 -200HV-A2E ISO7093-1
3	7.311-003.0	Hexagon nut M6 -8-A2E ISO 4032
4	5.324-125.0	Pushbutton on/off OEM RAL 3020
4	4.324-041.0	Pushbutton on/off only for replacement O
4	5.321-300.0	Handhold
5	5.332-934.0	Spring Pushbutton on/off
5	5.386-008.0	Warning sign
6	4.324-033.0	Pushbutton complete only for replacement
6	6.368-125.0	Drain plug
7	6.368-121.0	Cap 15,4
8	7.306-192.0	Screw M 6x 12-A2-70 (In6Rd)
9	6.646-432.0	Plug socket *EUROPA
9	6.646-433.0	Plug socket *CH
9	6.646-561.0	Plug socket *EU
9	6.646-846.0	Plug socket *CH
9	5.066-302.0	Cover
10	5.321-872.0	Turning knob OEM
10	5.673-034.0	Insulating mat kit
11	4.841-189.0	Control panel only for replacement TE OE
11	6.303-023.0	Oval head screw steel zinc-plated 3,5X13
12	6.630-191.0	Switch
12	6.373-319.0	Cable clamp R 8
13	6.630-416.0	Switch with LED
13	6.641-087.0	Cable with plug
14	6.630-437.0	Switch on/off
14	5.394-138.0	Protection part
15	5.033-256.0	Strap closure
15	6.343-139.0	Lock washer
16	6.649-393.0	Cable with plug *CH
16	7.312-290.0	Washer 10-A2 ISO 7093-1
16	6.649-385.0	Power cable 7,5m Gummi *EU
17	6.435-126.0	Castor
17	5.031-975.0	Covering cap holder accessories
17	5.033-744.0	Covering cap
18	7.311-402.0	Cap nut M10-A1-50 DIN 1587
18	7.303-092.0	Screw 3x12 -10.9-R2R (K-In6Rd)
19	7.312-029.0	Washer 10-CuZn-E2E ISO 7090
19	4.682-098.0	Circuit board speed control only for rep
20	5.070-506.0	Емкость серый NT 551
21	4.030-053.0	Suction connection
