Karcher (Керхер) Крышка детали (0.163-226.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

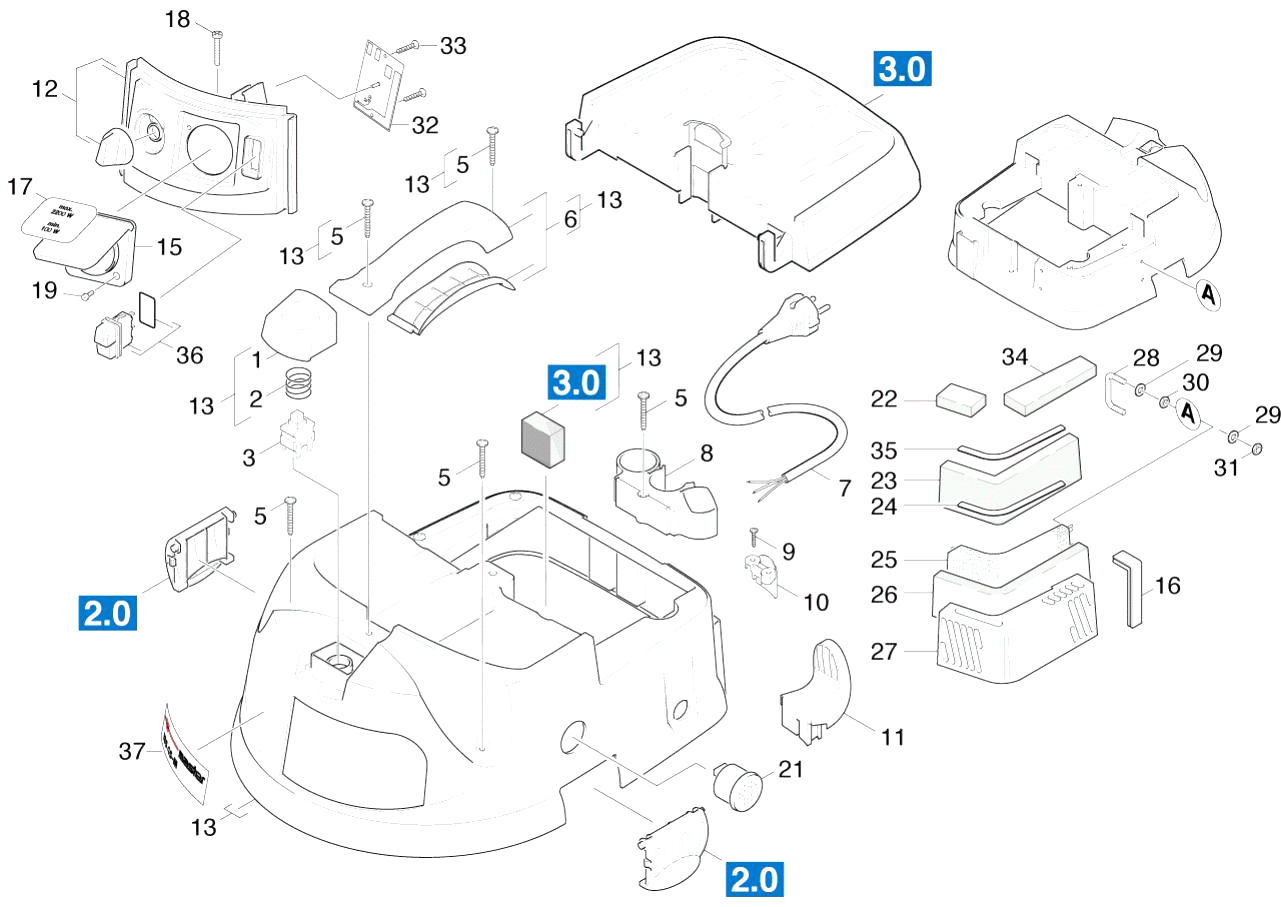

REF.	АРТИКУЛ	ОПИСАНИЕ
1	5.324-040.0	Pushbutton
2	5.332-457.0	Spring switch
3	6.630-032.0	Switch
4	4.324-041.0	Pushbutton on/off only for replacement O
5	5.332-934.0	Spring Pushbutton on/off
5	7.303-154.0	Screw 5x50 -A2-70 (In6Rd)
6	4.324-033.0	Pushbutton complete only for replacement
6	4.321-122.0	Handhold complete
7	7.303-129.0	Screw 4x16 -10.9-R2R (K-In6Rd)
7	6.648-846.0	Кабель с штепсель *DK
7	6.648-276.0	Cable with plug *CH
7	6.648-273.0	Power cable 7,5m PVC *EU
8	6.630-135.0	Micro switch
8	5.031-603.0	Holder accessories
9	6.646-433.0	Plug socket *CH
9	6.646-540.0	Plug socket *DK
9	6.646-432.0	Plug socket *EUROPA
9	6.646-561.0	Plug socket *EU
9	7.303-205.0	Screw 4x16-St-10.9-R2R (In6Rd)
9	6.646-846.0	Plug socket *CH
9	6.646-847.0	Plug socket *DK
10	5.031-794.0	Strain relief TE
10	5.031-981.0	Strain relief ISS 55-S WUERTH
10	5.321-872.0	Turning knob OEM
11	5.044-224.0	Holder cable
11	4.841-190.0	Control panel only for replacement M OEM
11	4.841-179.0	Control panel only for replacement M OEM
12	4.841-123.0	Control panel complete M-SAUGER WUERTH
12	6.630-191.0	Switch
13	4.066-306.0	Cover complete
13	6.630-416.0	Switch with LED
14	6.630-437.0	Switch on/off
15	6.646-433.0	Plug socket *CH
15	6.646-432.0	Plug socket *EUROPA
15	6.646-540.0	Plug socket *DK
15	5.033-256.0	Strap closure
16	6.368-342.0	Edge protection air circulation external
16	6.649-393.0	Cable with plug *CH
16	6.649-466.0	Cable with plug *DK
16	6.649-385.0	Power cable 7,5m Gummi *EU
17	5.380-908.0	Label (100-1100W) Wuerth
17	5.380-577.0	Label 2200W WUERTH
17	5.031-603.0	Holder accessories
18	7.303-086.0	Screw 5x30 -10.9-R2R (K-In6Rd)
18	7.303-092.0	Screw 3x12 -10.9-R2R (K-In6Rd)
19	6.303-318.0	Screw 3,5x12-10.9-R2R (IN6RD)
19	4.682-098.0	Circuit board speed control only for rep
20	5.380-908.0	Label (100-1100W) Wuerth
20	5.380-577.0	Label 2200W WUERTH
21	6.424-020.0	Signal transmitter B/P 228
21	4.682-099.0	Circuit board hose selector switch only
22	6.286-400.0	Insulating mat
22	6.391-700.0	Hose ? 3 x 1,35 410mm
23	6.286-398.0	Insulating mat
23	5.033-122.0	"""Moulded part blow-out ripped """"M"""" """
24	6.368-340.0	Edge protection
25	5.049-689.0	Sheet metal component
26	6.286-397.0	Insulating mat
27	5.049-690.0	Sheet metal component
28	5.034-676.0	Retaining bracket
