Karcher (Керхер) Крышка детали (0.164-580.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

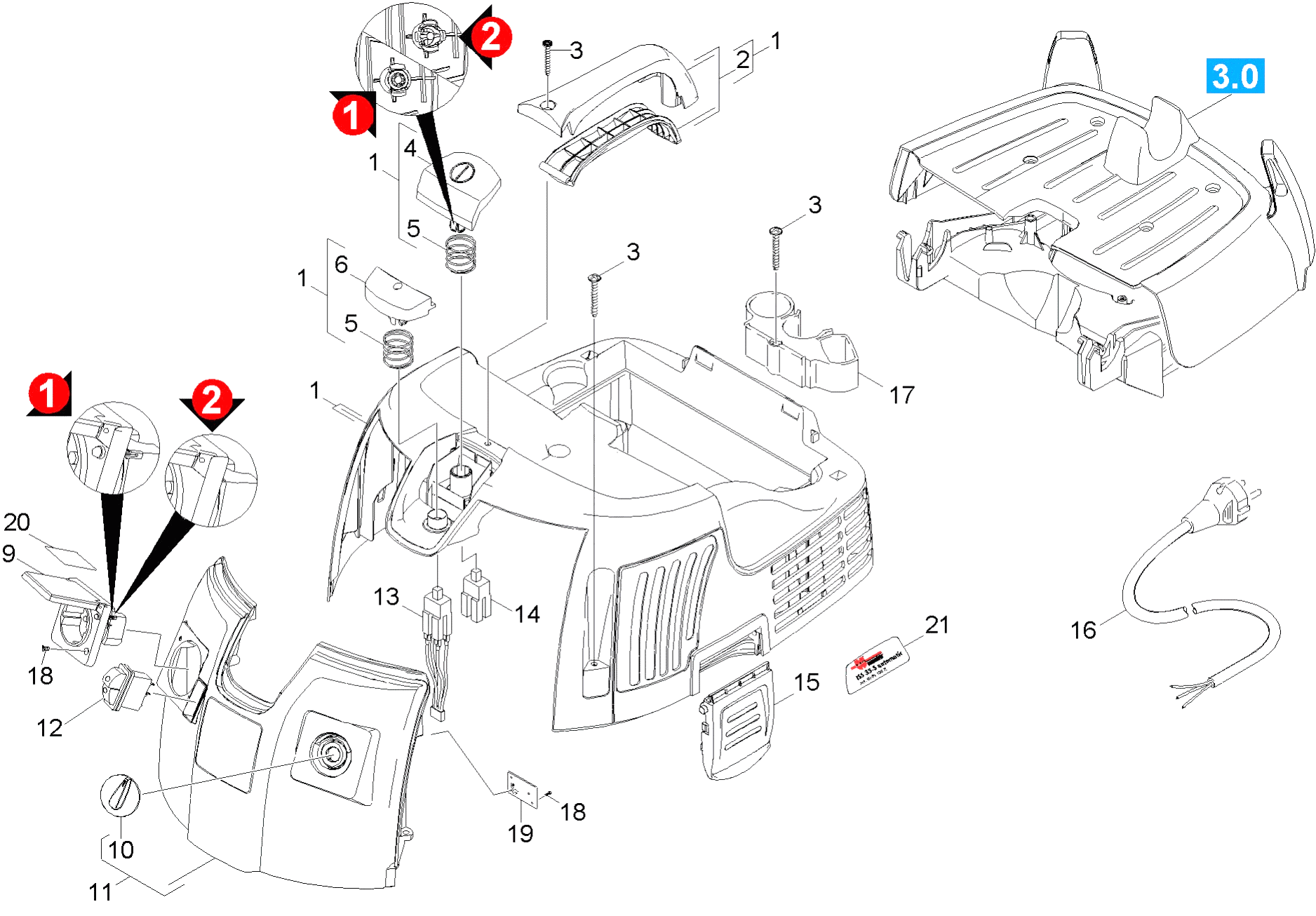

REF.	АРТИКУЛ	ОПИСАНИЕ
1	4.066-369.0	Cover complete only for replacement Te+M
2	4.321-213.0	Handhold complete only for replacement
3	7.303-086.0	Screw 5x30 -10.9-R2R (K-In6Rd)
4	5.324-125.0	Pushbutton on/off OEM RAL 3020
4	4.324-041.0	Pushbutton on/off only for replacement O
5	5.332-934.0	Spring Pushbutton on/off
6	4.324-033.0	Pushbutton complete only for replacement
9	6.646-846.0	Plug socket *CH
9	6.646-432.0	Plug socket *EUROPA
9	6.646-561.0	Plug socket *EU
9	6.646-433.0	Plug socket *CH
10	5.321-872.0	Turning knob OEM
11	4.841-189.0	Control panel only for replacement TE OE
12	6.630-191.0	Switch
13	6.630-416.0	Switch with LED
14	6.630-437.0	Switch on/off
15	5.033-256.0	Strap closure
16	6.649-385.0	Power cable 7,5m Gummi *EU
16	6.649-393.0	Cable with plug *CH
17	5.031-603.0	Holder accessories
18	7.303-092.0	Screw 3x12 -10.9-R2R (K-In6Rd)
19	4.682-098.0	Circuit board speed control only for rep
20	5.380-908.0	Label (100-1100W) Wuerth
20	5.380-577.0	Label 2200W WUERTH
21	5.392-068.0	Label ISS 35 S
21	5.392-092.0	Label ISS 35 S *CH
