Karcher (Керхер) Крышка (0.165-232.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

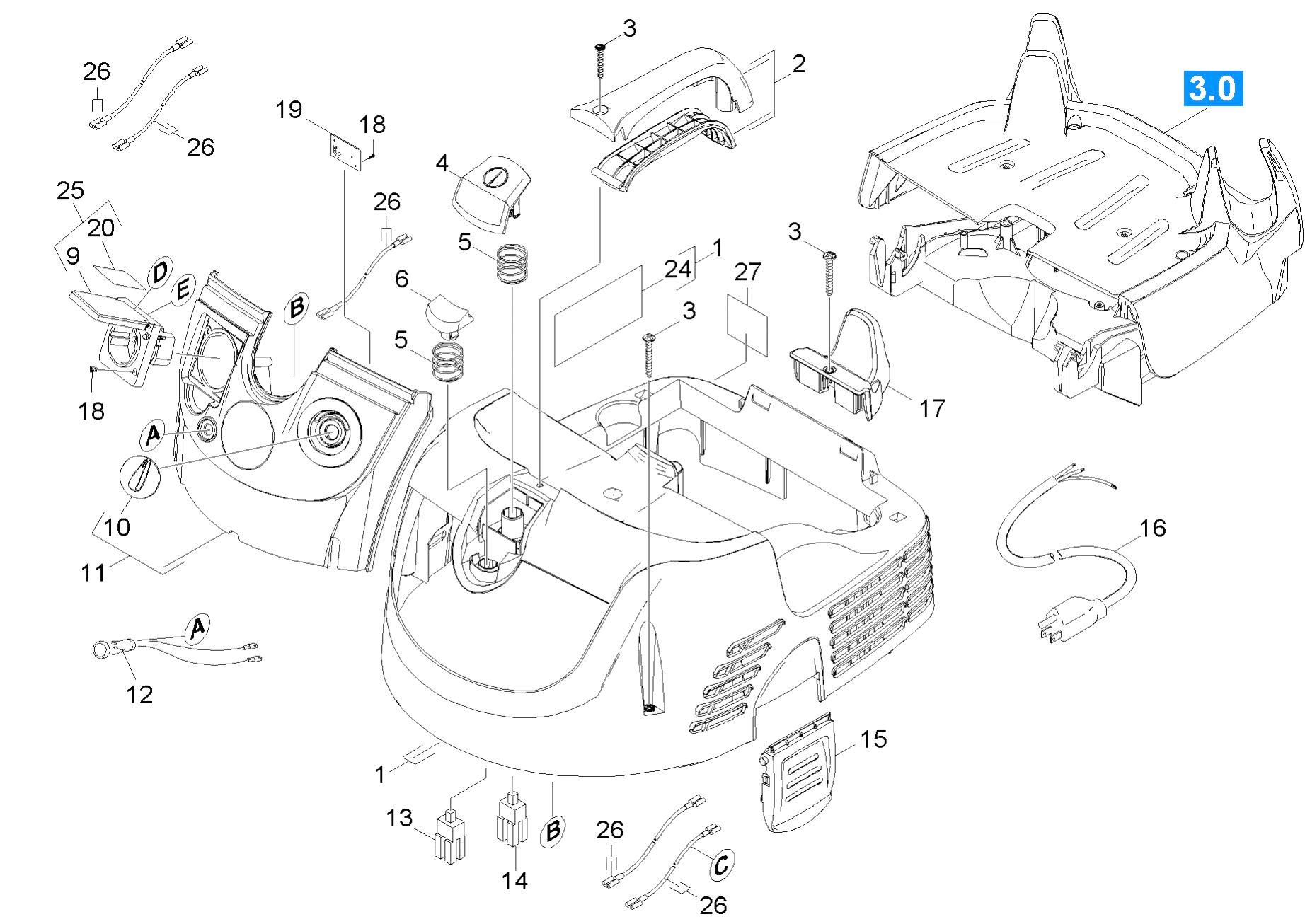

REF.	АРТИКУЛ	ОПИСАНИЕ
1	4.066-386.0	Cover complete only for replacement DEWA
2	4.321-213.0	Handhold complete only for replacement
3	7.303-086.0	Screw 5x30 -10.9-R2R (K-In6Rd)
4	5.324-130.0	Pushbutton on/off rot DeWALT
5	5.332-934.0	Spring Pushbutton on/off
6	5.324-129.0	Pushbutton closed TACT
9	6.646-436.0	Plug socket *
10	5.321-838.0	Turning knob
11	4.841-221.0	Control panel only for replacement DEWAL
12	6.651-433.0	Pilot lamp green
13	6.630-482.0	Switch
14	6.630-465.0	Switch
15	5.033-256.0	Strap closure
16	6.649-693.0	Power cable
17	5.044-940.0	Catch for cable
18	7.303-092.0	Screw 3x12 -10.9-R2R (K-In6Rd)
19	4.682-098.0	Circuit board speed control only for rep
20	5.392-658.0	Label 3 A
24	5.392-704.0	Label Sicherheitshinweise
25	4.646-026.0	Plug socket complete only for replacemen
26	2.820-299.0	Cable set only for replacement D27904/D2
27	5.392-660.0	Rating plate D27905
