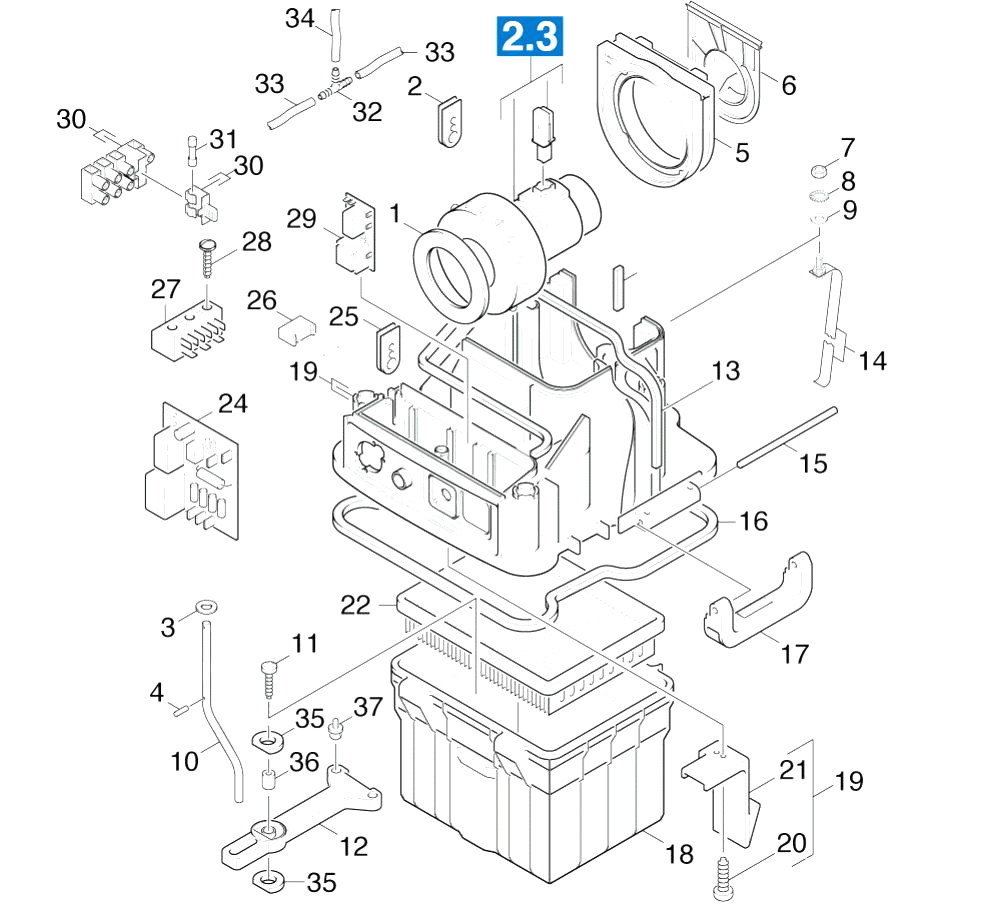

| REF. | АРТИКУЛ | ОПИСАНИЕ | ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
|---|---|---|---|
| 1 | 5.363-219.0 | Joint ring | |
| 2 | 5.394-219.0 | Protection part | |
| 3 | 7.312-029.0 | Washer 10-CuZn-E2E ISO 7090 | |
| 4 | 7.314-839.0 | Grooved pin 4x16 -CuZn ISO 8742 | |
| 5 | 6.343-139.0 | Lock washer | |
| 5 | 5.364-171.0 | Плоское уплотнение | |
| 6 | 5.394-138.0 | Protection part | |
| 6 | 5.063-350.0 | Cover | |
| 7 | 6.641-087.0 | Cable with plug | |
| 7 | 7.311-065.0 | Hexagon nut M 5-A2-70 ISO 4032 | |
| 8 | 5.363-398.0 | Seal cover | |
| 8 | 7.312-172.0 | Toothed lock washer A5,3-FSt-A3E DIN 67 | |
| 9 | 5.031-411.0 | Moulded part | |
| 9 | 7.312-002.0 | Washer 5-200HV-A3E ISO 7090 | |
| 10 | 7.306-056.0 | Screw M4x8 -8.8-R2R (In6Rd) | |
| 10 | 5.107-096.0 | Bar | |
| 11 | 6.647-914.0 | Cable with plug two-pole *GB | |
| 11 | 6.641-973.0 | Cable with plug *AU | |
| 11 | 7.311-001.0 | Hexagon nut M4 -8-A2E ISO 4032 | |
| 11 | 7.303-110.0 | Screw 5x35 -10.9-R2R (In6Rd) | |
| 12 | 6.903-259.0 | Cable bushing | |
| 12 | 6.373-660.0 | U-Fastening 5,0-5,5MM | |
| 12 | 5.481-068.0 | Lever | |
| 13 | 6.903-300.0 | Seal motor | |
| 13 | 5.031-412.0 | Moulded part left | |
| 13 | 5.364-138.0 | Flat gasket | |
| 14 | 4.490-008.0 | Vacuum motor complete only for replaceme | |
| 14 | 6.490-124.0 | Vacuum motor 900W | |
| 14 | 5.031-413.0 | Moulded part right | |
| 14 | 4.034-042.0 | Retaining bracket | |
| 15 | 5.363-400.0 | Seal cover | |
| 15 | 5.314-047.0 | Pin | |
| 16 | 9.424-035.0 | Кабель и конденсатор | |
| 16 | 6.368-121.0 | Cap 15,4 | |
| 16 | 5.363-216.0 | Joint ring | |
| 17 | 6.903-246.0 | Seal motor | |
| 17 | 7.306-192.0 | Screw M 6x 12-A2-70 (In6Rd) | |
| 17 | 5.321-108.0 | Handhold | |
| 18 | 6.959-177.0 | Ring foamed material | |
| 18 | 6.368-125.0 | Drain plug | |
| 18 | 5.050-030.0 | Frame | |
| 19 | 9.411-947.0 | Уголок | |
| 19 | 6.368-187.0 | Protective plug | |
| 19 | 4.605-024.0 | Housing complete | |
| 20 | 5.386-008.0 | Warning sign | |
| 20 | 7.303-116.0 | Screw 4x12-A2-70 (IN6RD) | |
| 21 | 6.903-395.0 | Screw 5,0x28 | |
| 21 | 5.037-079.0 | Hook | |
| 22 | 5.731-032.0 | Filter cartridge III | |
| 23 | 6.368-125.0 | Drain plug | |
| 24 | 6.682-188.0 | Electronics | |
| 25 | 5.394-218.0 | Protection part | |
| 26 | 6.661-112.0 | Anti-interference capacitor | |
| 27 | 6.643-136.0 | Strip terminal triple-pole | |
| 28 | 6.303-053.0 | Oval head screw 3,5x32-St-vz | |
| 29 | 6.682-116.0 | Electronics | |
| 30 | 6.643-219.0 | Strip terminal | |
| 31 | 6.644-120.0 | Fuse medium time-lag 0,063A | |
| 32 | 6.388-904.0 | T-Hose nozzle | |
| 33 | 6.389-799.0 | Hose D 3 x 1,35 | |
| 34 | 6.389-639.0 | Hose 3x1,35 | |
| 35 | 5.364-141.0 | Flat gasket | |
| 36 | 5.112-308.0 | Bush | |
| 37 | 5.132-056.0 | Plug |
