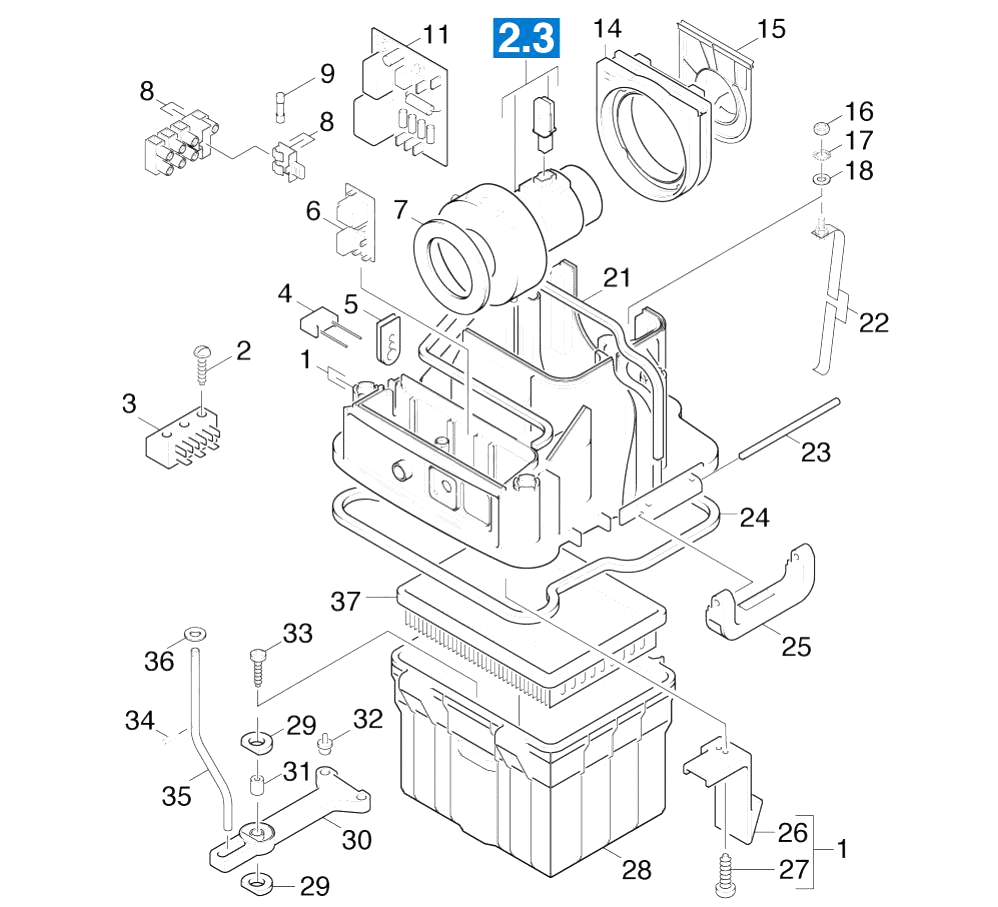

| REF. | АРТИКУЛ | ОПИСАНИЕ | ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
|---|---|---|---|
| 1 | 5.605-154.0 | Корпус | |
| 2 | 6.303-053.0 | Oval head screw 3,5x32-St-vz | |
| 3 | 6.643-136.0 | Strip terminal triple-pole | |
| 4 | 6.661-112.0 | Anti-interference capacitor | |
| 5 | 5.394-219.0 | Protection part | |
| 6 | 6.682-116.0 | Electronics | |
| 7 | 5.363-219.0 | Joint ring | |
| 8 | 6.643-219.0 | Strip terminal | |
| 9 | 6.644-120.0 | Fuse medium time-lag 0,063A | |
| 11 | 6.682-109.0 | Electronics -220V | |
| 14 | 5.364-171.0 | Плоское уплотнение | |
| 15 | 5.063-350.0 | Cover | |
| 16 | 7.311-002.0 | Hexagon nut M5 -8-A2E ISO 4032 | |
| 17 | 7.312-172.0 | Toothed lock washer A5,3-FSt-A3E DIN 67 | |
| 18 | 7.312-002.0 | Washer 5-200HV-A3E ISO 7090 | |
| 21 | 5.364-138.0 | Flat gasket | |
| 22 | 4.034-042.0 | Retaining bracket | |
| 23 | 5.314-047.0 | Pin | |
| 24 | 5.363-216.0 | Joint ring | |
| 25 | 5.321-108.0 | Handhold | |
| 26 | 5.037-079.0 | Hook | |
| 27 | 7.303-116.0 | Screw 4x12-A2-70 (IN6RD) | |
| 28 | 5.050-030.0 | Frame | |
| 29 | 5.363-216.0 | Joint ring | |
| 29 | 5.364-141.0 | Flat gasket | |
| 30 | 5.481-068.0 | Lever | |
| 31 | 5.112-308.0 | Bush | |
| 32 | 5.132-056.0 | Plug | |
| 33 | 7.303-110.0 | Screw 5x35 -10.9-R2R (In6Rd) | |
| 34 | 7.314-839.0 | Grooved pin 4x16 -CuZn ISO 8742 | |
| 35 | 5.107-096.0 | Bar | |
| 36 | 7.312-029.0 | Washer 10-CuZn-E2E ISO 7090 | |
| 37 | 5.731-020.0 | Filter cartridge | |
| 38 | 6.635-206.0 | Pressure switch | |
| 39 | 6.303-023.0 | Oval head screw steel zinc-plated 3,5X13 | |
| 40 | 6.643-136.0 | Strip terminal triple-pole | |
| 41 | 6.389-799.0 | Hose D 3 x 1,35 | |
| 42 | 6.388-904.0 | T-Hose nozzle | |
| 43 | 6.643-219.0 | Strip terminal | |
| 44 | 6.644-120.0 | Fuse medium time-lag 0,063A | |
| 45 | 6.682-116.0 | Electronics | |
| 47 | 5.122-131.0 | Flange | |
| 48 | 6.389-639.0 | Hose 3x1,35 | |
| 49 | 5.364-149.0 | Flat gasket | |
| 50 | 6.661-112.0 | Anti-interference capacitor | |
| 51 | 5.037-079.0 | Hook | |
| 52 | 7.303-116.0 | Screw 4x12-A2-70 (IN6RD) |
