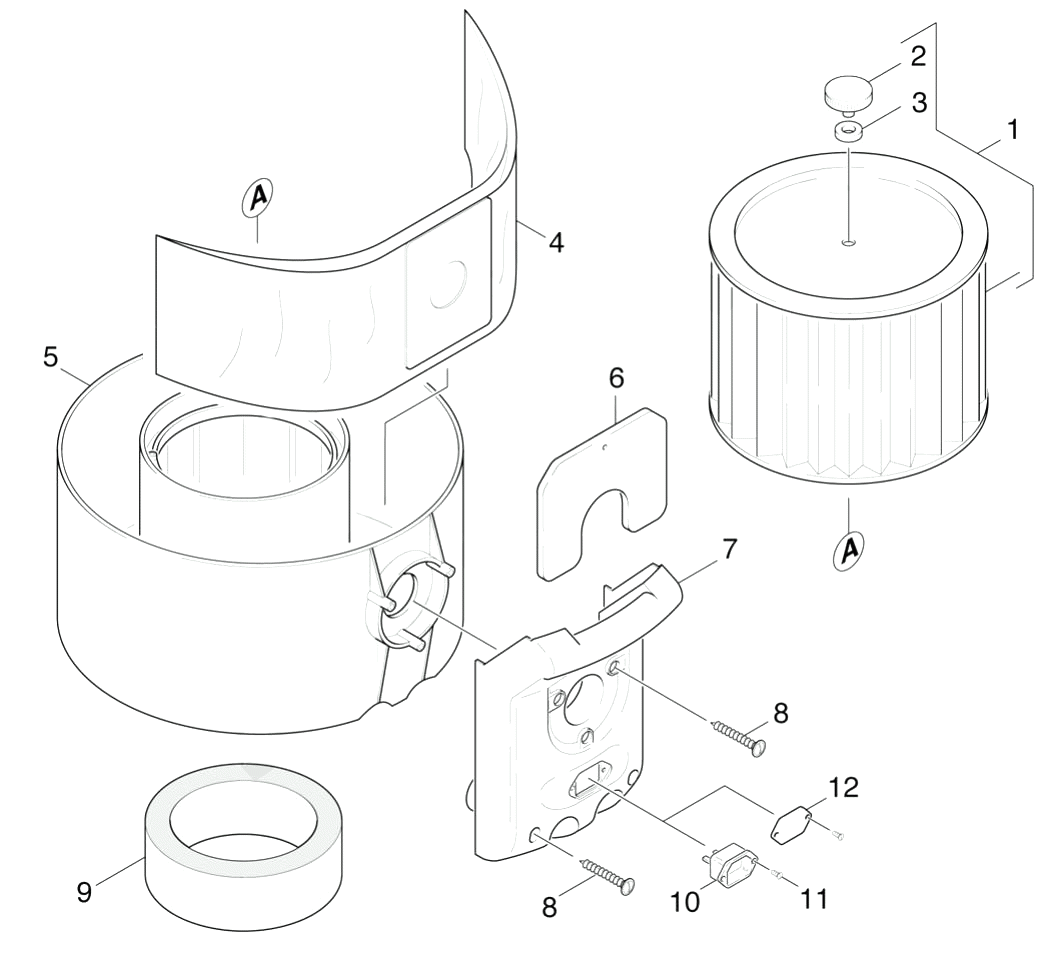

Karcher (Керхер) Емкость и фильтр (0.161-651.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

REF.	АРТИКУЛ	ОПИСАНИЕ
1	2.638-093.0	Accessories set filter
2	7.303-084.0	Screw 4x25 -10.9-R2R (K-In6Rd)
2	7.303-301.0	Винт с накатанной головкой M5x8-ST-A2E
3	7.303-155.0	Screw 5x100-A2-70 (IN6RD)
3	6.362-076.0	Joint ring
4	6.649-296.0	Power cable PVC 10m *EU
4	6.649-929.0	Кабель с штепсель *CCC
4	6.906-118.0	Filter bag set 10 St.
4	6.649-273.0	Cable with plug *CH
4	6.903-523.0	Dust bag 200 ST.
4	6.649-264.0	Power cable PVC 7,5m *GB
4	6.649-241.0	Power cable PVC 7,5m *EU
5	5.070-125.0	Tank
5	4.324-023.0	Pushbutton complete T 7/1
5	5.070-139.0	Tank
6	6.630-437.0	Switch on/off
6	2.860-119.0	Slider T201
7	4.839-357.0	Electrical small parts T 7/1
7	5.321-363.0	Hand grip
8	5.692-082.0	Air circulation T 7/1
8	7.303-086.0	Screw 5x30 -10.9-R2R (K-In6Rd)
8	2.889-077.0	Set air circulation
8	5.692-116.0	Air circulation basalt grey RAL 7012
9	6.286-200.0	Insulating mat
9	5.032-888.0	Strain relief T 7/1
10	6.646-200.0	Plug socket
10	6.414-830.0	Filter exhaust opening neutrally 3St.
10	2.889-081.0	Filter blowing filter 3 St.
11	6.303-262.0	Oval head screw 2,9X 16
11	6.346-043.0	Ferrite ring
12	5.002-923.0	Cover plate
12	5.033-584.0	Adapter strain relief
13	6.303-547.0	Screw 4x50 -10.9-IN6RD T20
